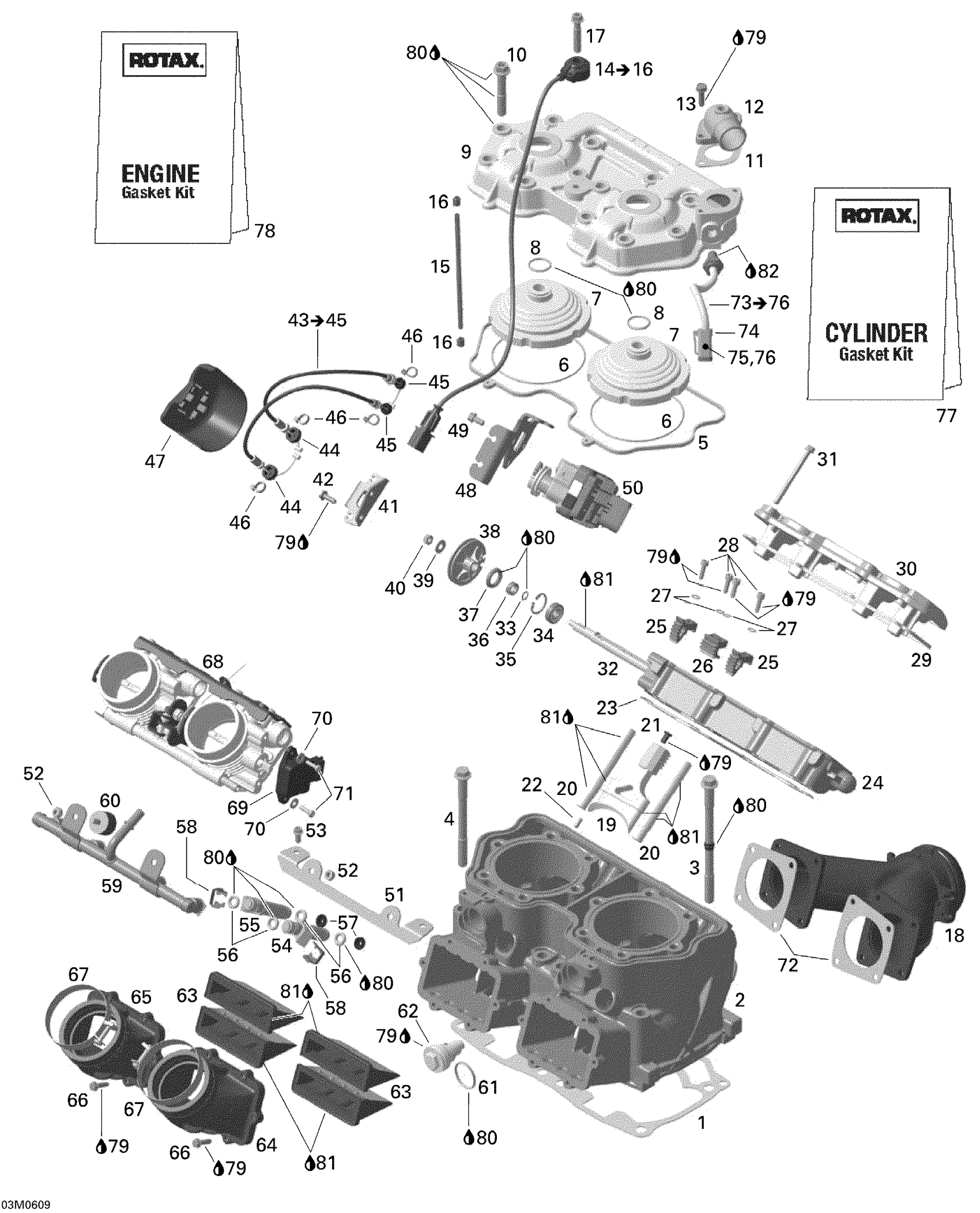

Ski-Doo MX Z 1000 SDI Renegade X, 2006 01- Cylinder and Cylinder Head Diagram

#

Description
Price

1

GASKET 1.0 MM - Call your local BRP dealership

420630460

Unavailable

1

GASKET 1.1 MM - Call your local BRP dealership

420630461

Unavailable

1

GASKET 1.2 MM - Call your local BRP dealership

420630462

Unavailable

1

GASKET 1.3 MM - Call your local BRP dealership

420630463

Unavailable

2

CYLINDER - Call your local BRP dealership

420613746

Unavailable

3

Hex. Flange Screw M10 X 150

420641762

$17.53

4

HEX. FLANGED SCREW M10 X 115 - Call your local BRP dealership

420641772

Unavailable

5

GASKET - Call your local BRP dealership

420630451

Unavailable

6

O-RING - Call your local BRP dealership

420630630

Unavailable

7

Combustion Chamber

420613730

Unavailable

8

O-Ring

420430373

$3.17

9

CYLINDER HEAD COVER - Call your local BRP dealership

420613720

Unavailable

10

TORX FLANGE SCREW M10 X 55 - Call your local BRP dealership

420940142

Unavailable

11

Gasket

420850338

$11.60

12

BENT OUTLET SOCKET - Call your local BRP dealership

420822080

Unavailable

13

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

14

Knock Sensor Ass'y

420664035

Unavailable

15

TUBE - Call your local BRP dealership

420460010

Unavailable

16

CLIP - Call your local BRP dealership

420960890

Unavailable

17

TORX FLANGE SCREW M8 X 35 - Call your local BRP dealership

420440862

Unavailable

18

EXHAUST MANIFOLD - Call your local BRP dealership

420673150

Unavailable

19

MAIN EXHAUST VALVE - Call your local BRP dealership

420854730

Unavailable

20

Side Exhaust Valve

420854740

Unavailable

21

STOPPER - Call your local BRP dealership

420960390

Unavailable

22

Drive Pin 5 X 10

420929650

$1.68

23

GASKET - Call your local BRP dealership

420630690

Unavailable

24

VALVE HOUSING - Call your local BRP dealership

420854761

Unavailable

25

DRIVE GEAR - Call your local BRP dealership

420834655

Unavailable

26

DRIVE GEAR - Call your local BRP dealership

420834650

Unavailable

27

SPRING WASHER - Call your local BRP dealership

420939440

Unavailable

28

Allen Screw M5 x 16

420840514

$1.90

29

GASKET - Call your local BRP dealership

420631532

Unavailable

30

VALVE COVER - Call your local BRP dealership

420854770

Unavailable

31

Hex. Flange Screw M6 X 65

420440602

$6.39

32

DRIVE SHAFT - Call your local BRP dealership

420837700

Unavailable

33

O-RING - Call your local BRP dealership

420230990

Unavailable

34

BALL BEARING - Call your local BRP dealership

420832830

Unavailable

35

RETAINING RING - Call your local BRP dealership

420245480

Unavailable

36

DISTANCE SLEEVE - Call your local BRP dealership

420947360

Unavailable

37

O-RING - Call your local BRP dealership

420430102

Unavailable

38

CABLE ACTUATOR - Call your local BRP dealership

420980710

Unavailable

39

SPRING WASHER - Call your local BRP dealership

420939450

Unavailable

40

Elastic Stop Nut M6

232561414

$0.55

41

CABLE SUPPORT - Call your local BRP dealership

420853052

Unavailable

42

Taptite Screw M5 X 16

420941928

Unavailable

43

RAVE CABLE KIT - Call your local BRP dealership | Includes 43 to 45

420997023

Unavailable

44

Cap

420460350

Unavailable

45

CAP - Call your local BRP dealership

420960773

Unavailable

46

Tie Wrap 94 mm | 4X4

293750001

$1.03

47

RAVE COVER - Call your local BRP dealership

420812630

Unavailable

48

PLATE - Call your local BRP dealership

420851920

Unavailable

49

Hex. Screw M6 X 8

420841580

$1.15

50

E-RAVE ACTUATOR - Call your local BRP dealership

420889430

Unavailable

51

RETAINING PLATE - Call your local BRP dealership

420851893

Unavailable

52

Elastic Stop Nut M6

232561414

$0.55

53

Hex. Flange Screw M6 X 12

420440147

$2.00

54

Fuel Injectors

420874485

$238.49

55

FUEL INJECTOR - Call your local BRP dealership

420874480

Unavailable

56

O-Ring

420631220

$14.28

57

PROTECTION CAP - Call your local BRP dealership

420874820

Unavailable

58

CLIP - Call your local BRP dealership

420851800

Unavailable

59

Fuel Rail Ass'y

420874470

Unavailable

60

STOPPER - Call your local BRP dealership

420960065

Unavailable

61

O-ring

420430060

$10.33

62

Deco Insert

420231135

Unavailable

63

Reed Valve Ass'y

420924798

$42.99

64

CARBURATOR SOCKET, MAG - Call your local BRP dealership

420667065

Unavailable

65

CARBURATOR SOCKET, PTO - Call your local BRP dealership

420667060

Unavailable

66

Hex. Tapping Screw M5 X 20

420841555

$1.69

67

CLAMP - Call your local BRP dealership

420851810

Unavailable

68

Throttle Body

420889194

Unavailable

69

Position Sensor

420866120

$98.99

70

Flat Washer 4 mm, Stainless

234041600

$1.15

71

Phillips Screw M4 X 16

208641660

$0.90

72

GASKET - Call your local BRP dealership

420630820

Unavailable

73

Temperature Sensor This part replaces 515176043.

515177835

$92.99

74

Male Connector, 4 Circuits | CE

278000739

$19.49

75

Female Terminal

278000632

$2.09

76

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

77

CYLINDER GASKET SET - Call your local BRP dealership

420891136

Unavailable

78

Engine Gasket Set

420891131

Unavailable

79

Loctite 243, 10 ml

293800060

$21.49

80

Dow Corning 111, 150 g

413707000

$59.99

81

Not Available As Spare Part - Friction Washer

Unavailable

82

Loctite 5910, 300 ml

293800081

$57.99
