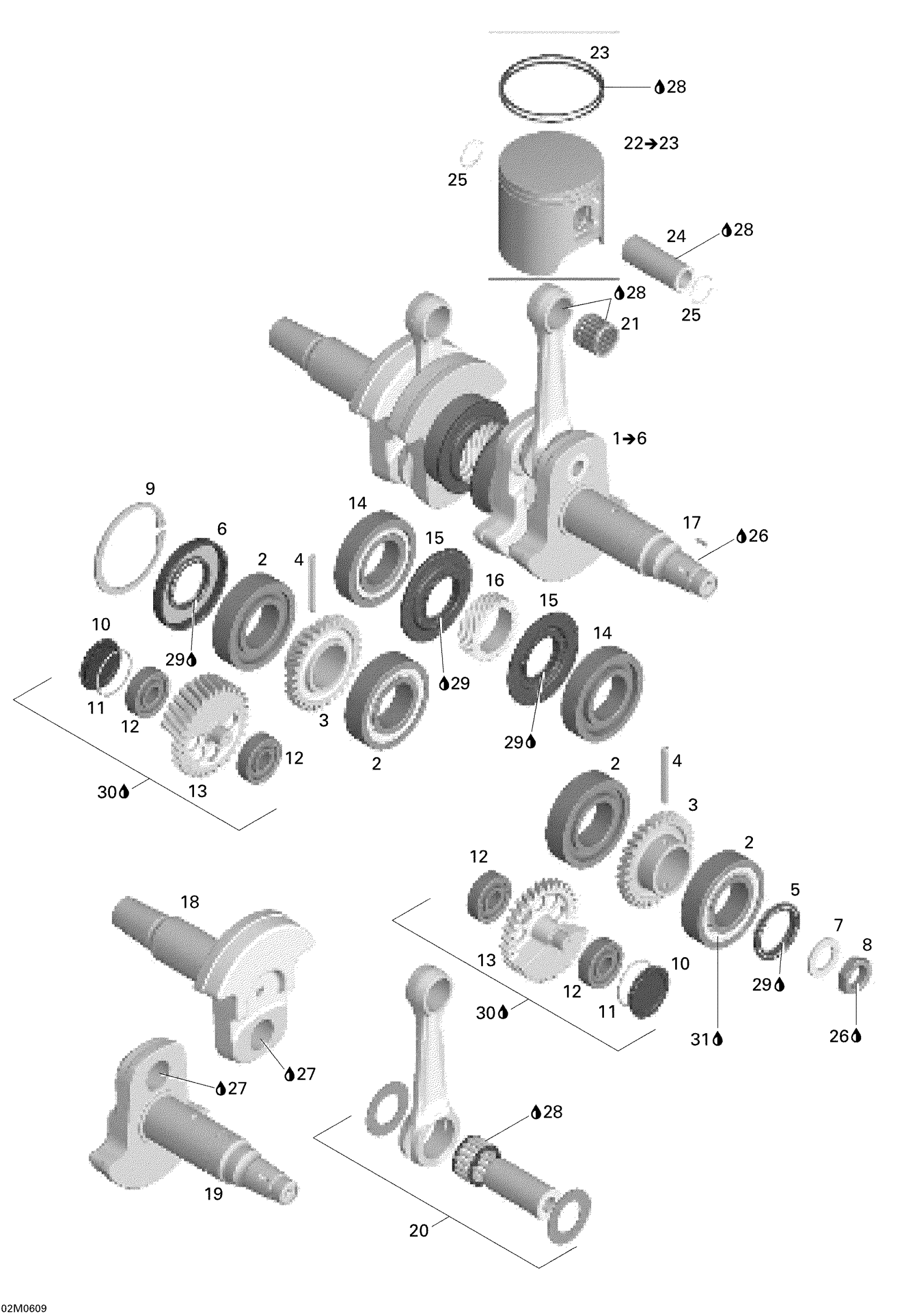

Ski-Doo MX Z 1000 SDI Renegade X, 2006 01- Crankshaft And Pistons Diagram
#
Description
Price
1
Crankshaft Ass'y | Includes 1 to 6
420889216
Unavailable
3
GEAR BALANCE, 31 TEETH - Call your local BRP dealership
420834571
Unavailable
4
NEEDLE PIN - Call your local BRP dealership
420929430
Unavailable
5
OIL SEAL - Call your local BRP dealership
420430540
Unavailable
6
OIL SEAL - Call your local BRP dealership
420931287
Unavailable
9
CIRCLIP - Call your local BRP dealership
420845700
Unavailable
10
COVER BEARING - Call your local BRP dealership
420812176
Unavailable
11
O-RING - Call your local BRP dealership
420950410
Unavailable
12
BALL BEARING - Call your local BRP dealership
420232292
Unavailable
13
BALANCE GEAR, 31 TEETH - Call your local BRP dealership
420834583
Unavailable
14
BALL BEARING - Call your local BRP dealership
420832582
Unavailable
16
Central Gear, 17 Teeth
420834560
Unavailable
18
Crankshaft, PTO Side
420819147
Unavailable
19
Crankshaft, Mag Side
420819177
Unavailable
20
Rod Repair Kit, PTO Side
420889214
Unavailable
20
Rod Repair Kit, Mag Side
420889213
Unavailable
21
NEEDLE BEARING - Call your local BRP dealership
420832680
Unavailable
23
SEMI-TRAPEZ RING - Call your local BRP dealership
420815370
Unavailable
24
GUDGEON PIN - Call your local BRP dealership
420916440
Unavailable
25
CIRCLIP - Call your local BRP dealership
420845611
Unavailable
28
Not Available As Spare Part - Friction Washer
Unavailable
