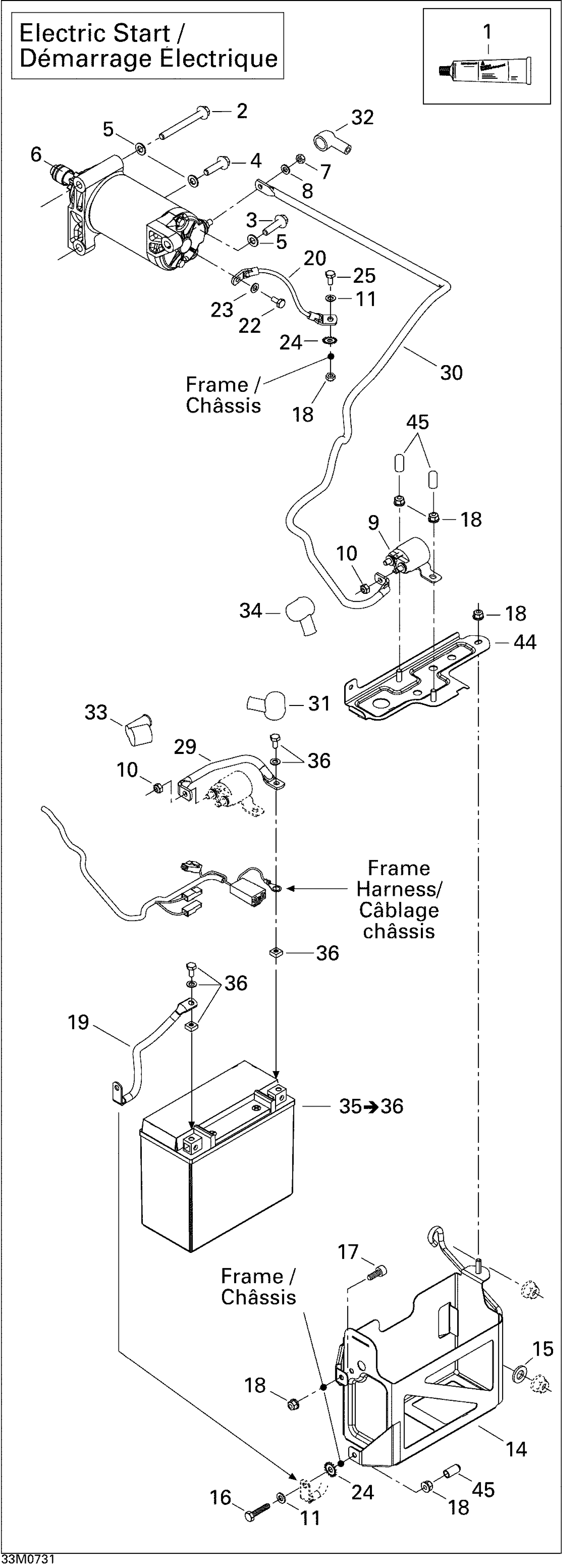

Ski-Doo MX Z 1000 SDI Renegade RT, 2007 Electrical System Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

2

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

$7.80

3

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

4

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

5

Flat Washer With Teflon 8 mm

250200008

$3.12

6

Electric Starter Ass'y

515176133

$319.49

7

Elastic Stop Nut M6

232561414

$1.55

8

Flat Washer 6 mm

234061410

$1.04

9

Starter Relay

515176011

$51.97

10

Elastic Stop Nut M6

232561414

$1.55

11

Flat Washer 6 mm

234061410

$1.04

14

BATTERY SUPPORT - Call your local BRP dealership | Electric Start

515176048

Unavailable

15

Flat Washer M10 | 4X4

250200014

$1.17

16

Hex. Screw M6 X 25

207162544

$1.05

17

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

205061644

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

GROUND WIRE - Call your local BRP dealership

515176172

Unavailable

20

GROUND WIRE - Call your local BRP dealership | Electric Start

515176277

Unavailable

22

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.82

23

Flat Washer 6 mm

234061410

$1.04

24

Lock Washer Serrated M6

250200041

$0.92

25

Hex. Flange Screw M6 X 20

207662044

$1.66

29

Battery Wire

515175904

$18.43

30

BATTERY WIRE - Call your local BRP dealership | Electric Start

515176259

Unavailable

31

Protection Cap

570151000

$18.43

32

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

33

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

34

Protector Cap | XT

515175919

$16.89

35

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

36

Battery Bolt Kit

250000282

$2.95

44

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

45

Cap

515176141

$2.91
