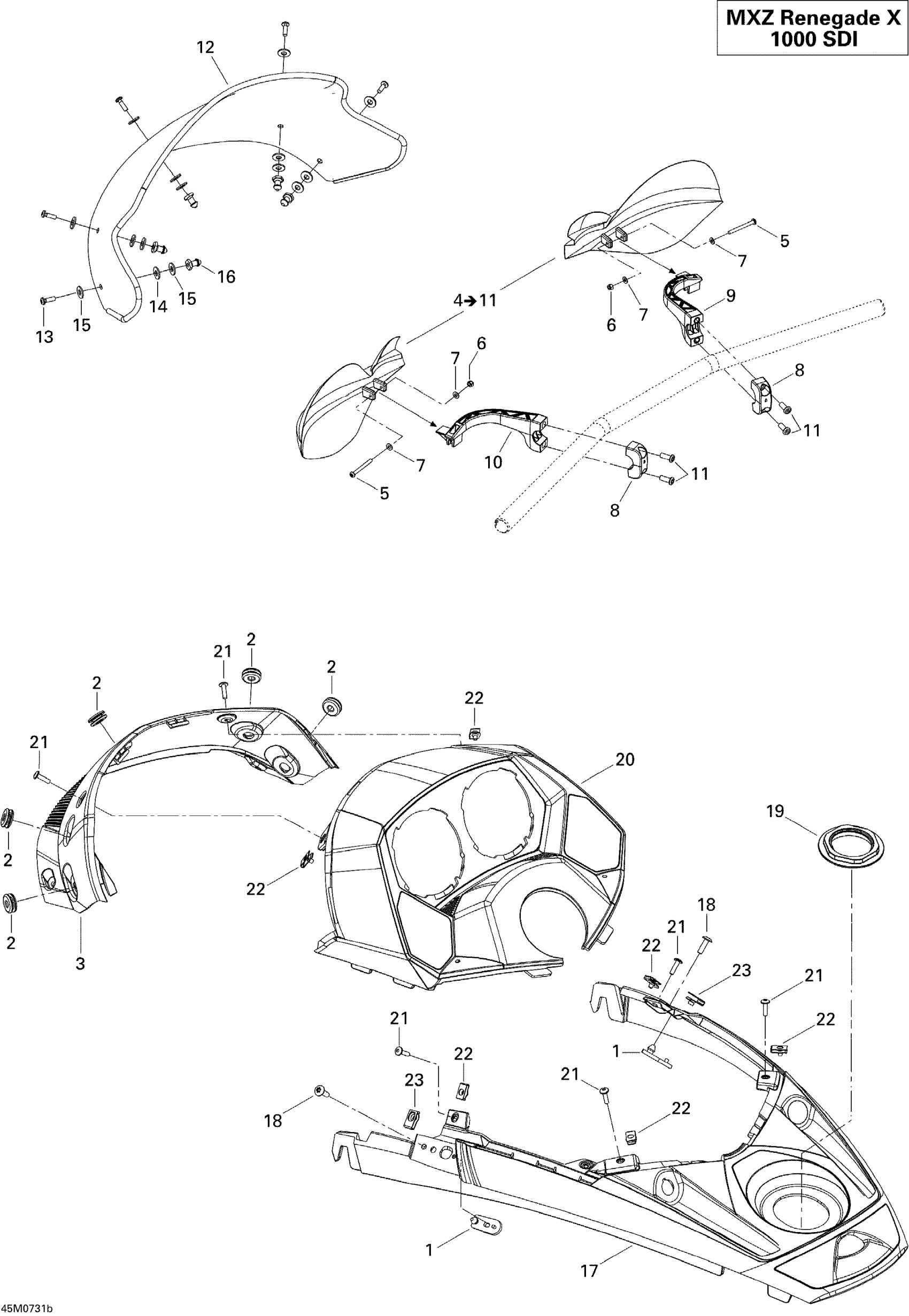

Ski-Doo MX Z 1000 SDI Renegade RT, 2007 09- Windshield And Console Renegade X Diagram

#

Description
Price

1

HOOD LATCH - Call your local BRP dealership

517302616

Unavailable

2

Grommet

517302841

$7.89

3

INDICATOR SUPPORT DOOR - Call your local BRP dealership

517303219

Unavailable

4

AIR DEFLECTOR KIT, YELLOW - Call your local BRP dealership | Includes 4 to 11

517303727

Unavailable

5

Socket Head Screw M4 X 40 | X

205444086

$1.69

6

Elastic Stop Nut M4

232541484

$0.74

7

Flat Washer 4 mm

234041480

$0.74

8

U-Clamp | XT

517303264

$11.99

9

RH DEFLECTOR SUPPORT - Call your local BRP dealership

517303590

Unavailable

10

LH DEFLECTOR SUPPORT - Call your local BRP dealership

517303591

Unavailable

11

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

Unavailable

12

Extra Low Windshield

517303542

Unavailable

13

Torx Screw K50 X 16

250000720

$1.69

14

Rubber Washer 5 mm

250200024

$2.19

15

Washer M5

250200025

$0.74

16

Knob

517303439

$4.55

17

CENTER CONSOLE - Call your local BRP dealership | Black/Yellow

517303208

Unavailable

17

CENTER CONSOLE - Call your local BRP dealership | Yellow/Black

517303386

Unavailable

18

Torx Screw M6 X 20

250000722

$1.68

19

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

20

Indicator Support

517303547

Unavailable

21

Torx Screw M5 X 20

250000724

$1.69

22

Panel Nut M5 X 0.8

250000958

$4.23

23

Panel Nut M6 X 1.0

250100198

$2.11
