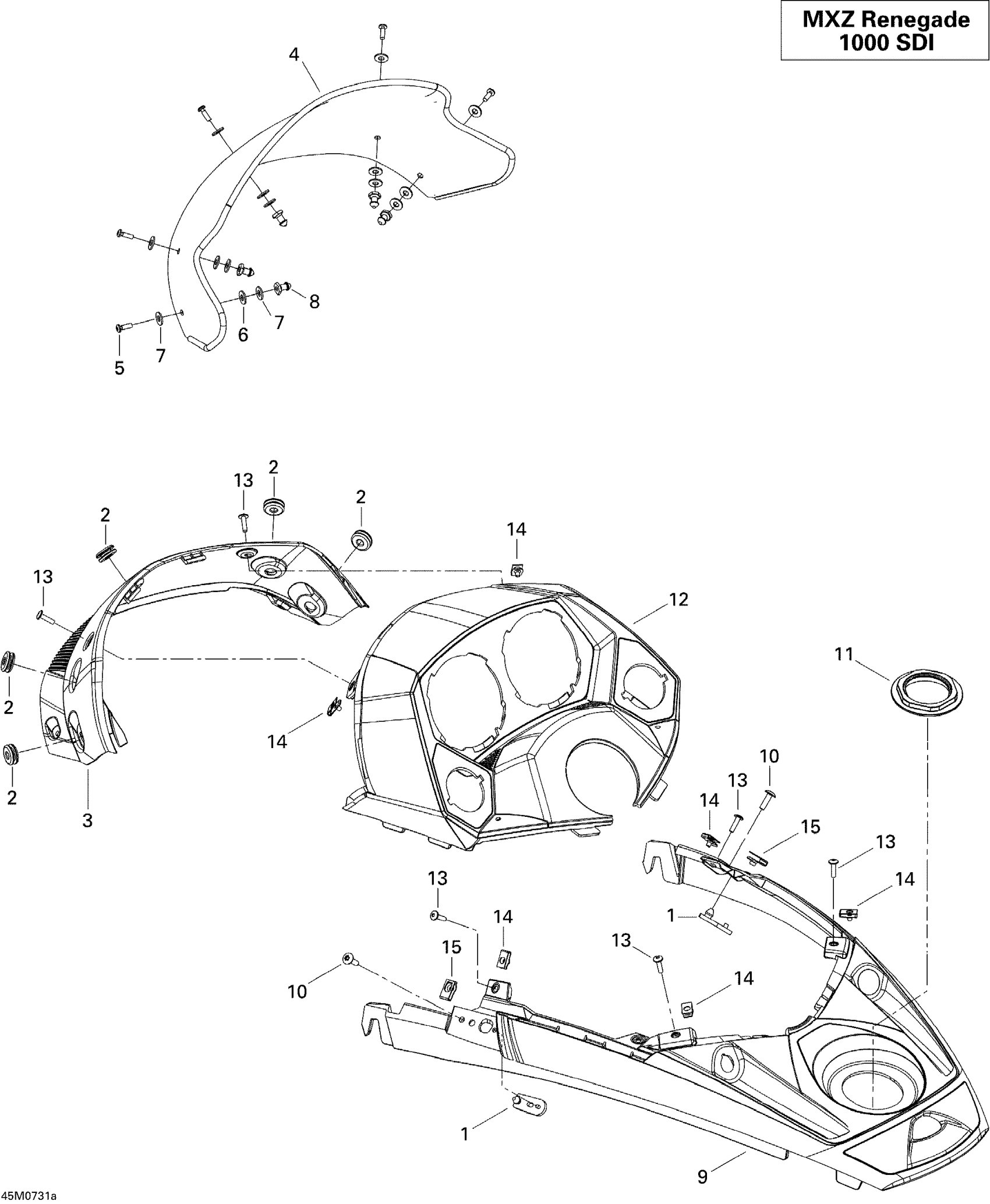

Ski-Doo MX Z 1000 SDI Renegade RT, 2007 09- Windshield And Console Renegade Diagram

HOOD LATCH - Call your local BRP dealership

517302616

Unavailable

Grommet

517302841

$7.89

INDICATOR SUPPORT DOOR - Call your local BRP dealership

517303219

Unavailable

Low Windshield

517303140

Unavailable

Torx Screw K50 X 16

250000720

$1.69

Rubber Washer 5 mm

250200024

$2.19

Washer M5

250200025

$0.74

Knob

517303439

$4.55

CENTER CONSOLE - Call your local BRP dealership | Black/Yellow

517303208

Unavailable

Center Console | White/Black

517303725

Unavailable

Torx Screw M6 X 20

250000722

$1.68

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

Indicator Support

517303547

Unavailable

Torx Screw M5 X 20

250000724

$1.69

Panel Nut M5 X 0.8

250000958

$4.23

Panel Nut M6 X 1.0

250100198

$2.11
