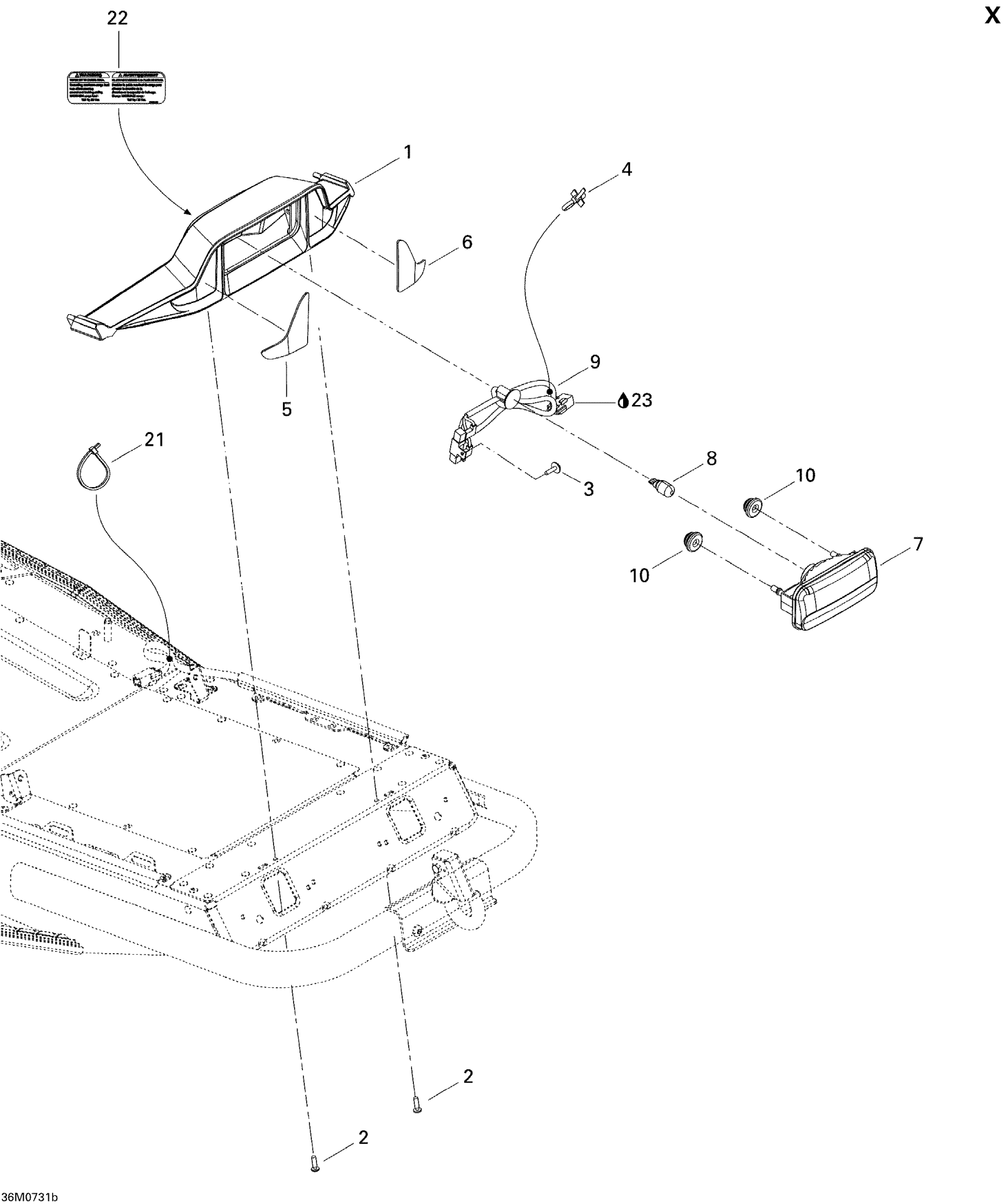

Ski-Doo MX Z 1000 SDI Renegade RT, 2007 Luggage Rack X Diagram

#

Description

Price

1

Light Support

511000513

Unavailable

2

Torx Screw K50 X 16

250000720

$1.39

3

Screw M4 X 16

250000725

$2.87

4

Tie-Rap 173 mm

293750009

$0.85

5

REAR REFLECTOR - Call your local BRP dealership

511000459

Unavailable

6

REAR REFLECTOR - Call your local BRP dealership

511000460

Unavailable

7

Rear Lens Box | MX Z X 600RS

710000652

Unavailable

8

BULB - Call your local BRP dealership | MX Z X 600RS

710000653

Unavailable

9

WIRING HARNESS - Call your local BRP dealership | MX Z X 600RS

511000508

Unavailable

10

Stopper Rubber

705014429

$6.09

21

Tie Wrap 142 mm

293750002

$0.88

22

WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership

516002960

Unavailable

23

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66
