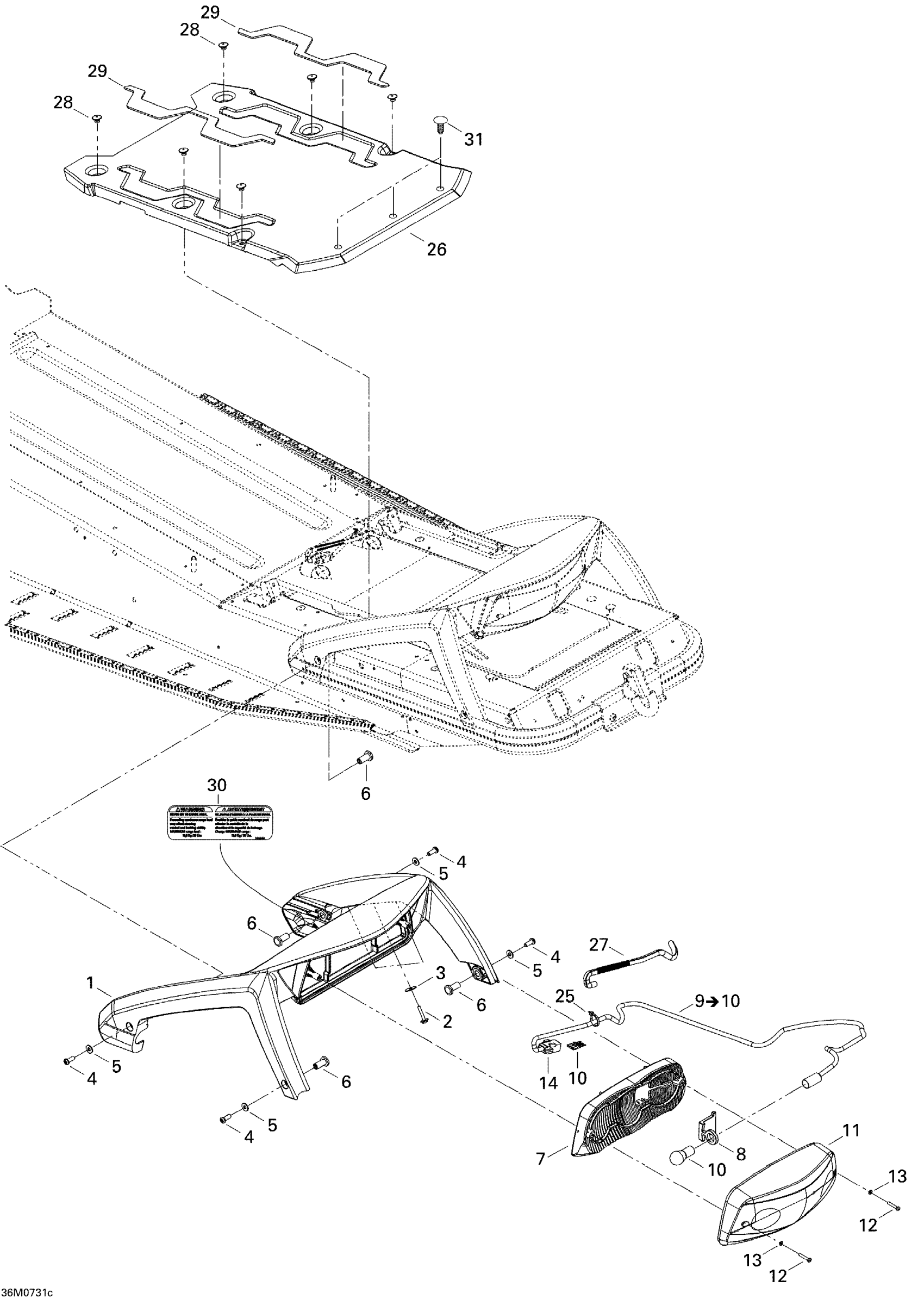

Ski-Doo MX Z 1000 SDI Renegade RT, 2007 09- Luggage Rack RENEGADE Diagram

#

Description
Price

1

Luggage Rack

511000425

Unavailable

2

Self Tapping Screw #8 X 5/8

250000202

$1.48

3

Flat Washer

250200040

$1.90

4

Torx Screw M6 X 20

250000722

$1.68

5

Flat Washer

250200039

$0.74

6

INSERT - Call your local BRP dealership

511000398

Unavailable

7

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

8

BULB SUPPORT - Call your local BRP dealership

511000431

Unavailable

9

BULB SOCKET - Call your local BRP dealership | Includes 9 to 10

511000466

Unavailable

10

Bulb

520000758

$9.10

11

Lens

511000315

$36.99

12

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

13

Washer - Call your local BRP dealership

414516400

Unavailable

14

Male Housing, 3 Circuits

515175494

$16.18

25

Tie Wrap 94 mm | 4X4

293750001

$1.03

26

RADIATOR COVER - Call your local BRP dealership

511000436

Unavailable

27

Tubing 6 Mm 3000Mm Long

219704425

$13.75

28

Pop Rivet 3/16"

293150103

$0.55

29

Carpet

511000396

Unavailable

30

WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership

516002960

Unavailable

31

Black, Dart

293730006

$0.99
