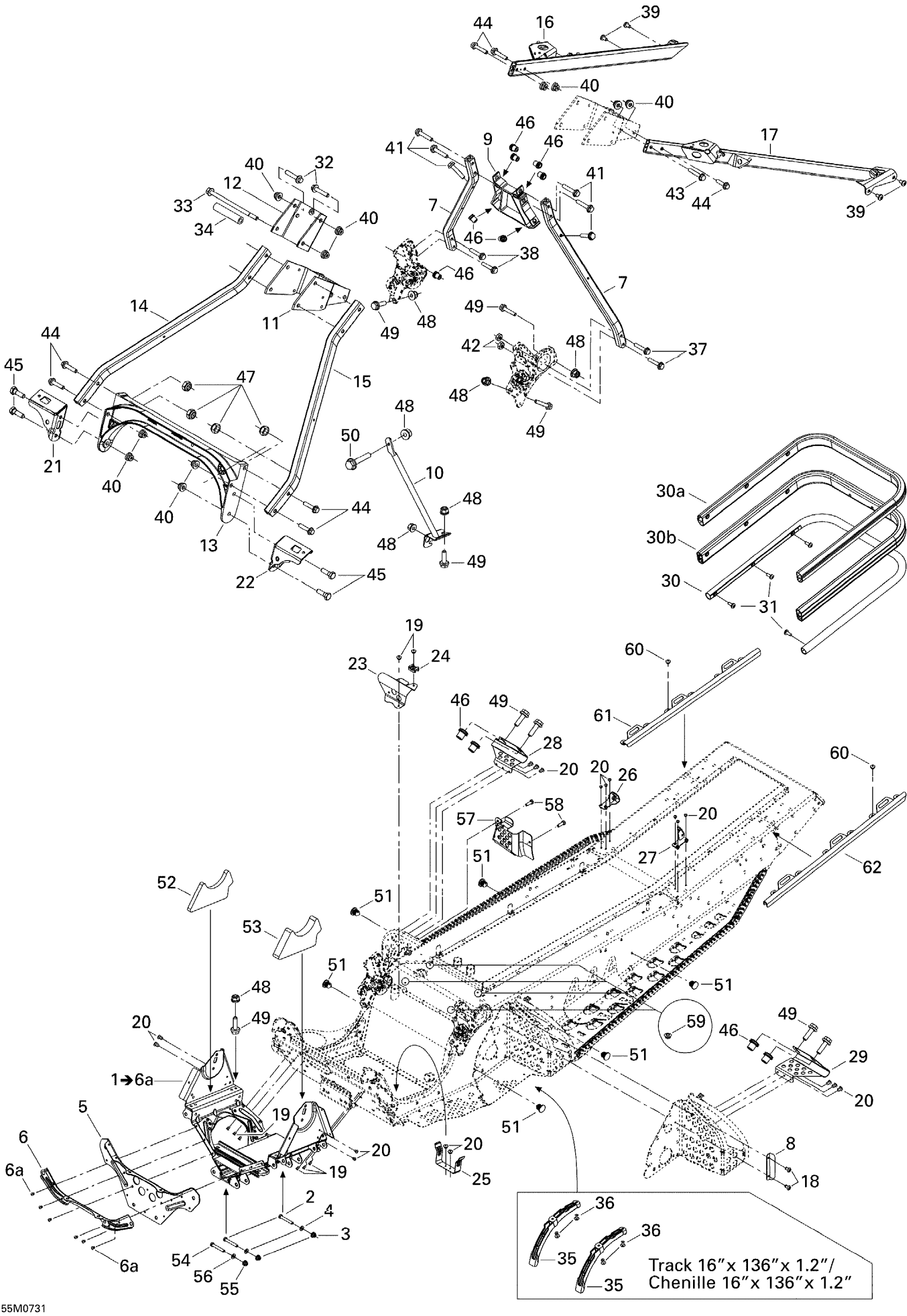

Ski-Doo MX Z 1000 SDI Renegade RT, 2007 Frame and Components Diagram

#

Description
Price

1

FRONT MEMBER ASS'Y - Call your local BRP dealership | Includes 1 to 7

518325433

Unavailable

2

Hex. Screw M8 X 55

207085544

$1.57

3

Hex. Flange Elastic Nut M8

233281414

$1.31

4

Flat Washer 8 mm

234081410

$0.79

5

FRONT PLATE - Call your local BRP dealership

518325422

Unavailable

6

Front Plate Reinforcement

518324727

Unavailable

6a

Avex Rivet

390909100

$0.28

7

HANDLE SUPPORT - Call your local BRP dealership

518324228

Unavailable

8

CABLE PROTECTOR - Call your local BRP dealership

518317504

Unavailable

9

HANDLE SUPPORT REINFORCEMENT - Call your local BRP dealership

518323811

Unavailable

10

Brace, Black

518324080

Unavailable

11

ATTACHMENT BRACKET - Call your local BRP dealership

518323676

Unavailable

12

STEERING COLUMN SUPPORT - Call your local BRP dealership

518324046

Unavailable

13

Upper Cross Member

518324265

Unavailable

14

RH FRONT BRACE - Call your local BRP dealership

518324285

Unavailable

15

LH FRONT BRACE - Call your local BRP dealership

518324286

Unavailable

16

RH Member

518323352

Unavailable

16

RH MEMBER - Call your local BRP dealership

518324182

Unavailable

17

LH MEMBER - Call your local BRP dealership

518323354

Unavailable

17

LH Member

518324183

Unavailable

18

Pop Rivet 3/16"

390402200

$0.30

19

Avex Rivet

390909100

$0.28

20

Avex Rivet

390909200

$0.28

21

RH SHOCK BRACKET - Call your local BRP dealership

518324148

Unavailable

22

LH Shock Bracket

518324150

Unavailable

23

HOSE SUPPORT - Call your local BRP dealership

518323584

Unavailable

24

Tie Rap Mount (screwable)

515176795

$4.96

25

Belt Guard Bracket

518202100

$15.64

26

RH BRACKET, BLACK - Call your local BRP dealership

518323769

Unavailable

27

LH BRACKET, BLACK - Call your local BRP dealership

518323770

Unavailable

28

RH TOE HOLD - Call your local BRP dealership

518323948

Unavailable

29

LH TOE HOLD - Call your local BRP dealership

518324392

Unavailable

30

REAR BUMPER - Call your local BRP dealership | North America

518324832

Unavailable

30a

REAR BUMPER - Call your local BRP dealership | Except Europe

518325218

Unavailable

30b

REAR BUMPER - Call your local BRP dealership | Europe

518325228

Unavailable

31

Hex. Screw M8 X 20

236282084

$1.43

32

Hex. Flange Screw M8 X 40

207684044

$1.43

33

HEX. FLANGED SCREW M8 X 140 - Call your local BRP dealership

230684044

Unavailable

34

SPACER - Call your local BRP dealership

518324048

Unavailable

35

FRONT RADIATOR PROTECTOR - Call your local BRP dealership

518324287

Unavailable

36

Pop Rivet 3/16"

390906800

$0.85

37

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.12

38

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.15

39

Pan Head Torx Screw M8 X 12

250000887

$1.79

40

Hex. Flange Elastic Nut M8

233281414

$1.31

41

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.12

42

Elastic Stop Nut M6

232561414

$1.78

43

Hex. Flange Screw M8 X 50

207685044

$1.60

44

Hex. Flange Screw M8 X 35

207683544

$1.60

45

Hex. Screw M8 X 25

207182544

$0.85

46

Insert

293450275

$11.36

47

Hex. Elastic Stop Nut M8

232581414

$0.54

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

49

Hex. Flange Screw M6 X 20

207662044

$1.91

50

Hex. Flange Screw M6 X 35

207663544

$0.85

51

Panel Fastener

518321954

$5.85

52

RH FRONT FOAM - Call your local BRP dealership

518324372

Unavailable

53

LH FRONT FOAM - Call your local BRP dealership

518323007

Unavailable

54

Hex. Screw M8 X 55

207085544

$1.57

55

Hex. Flange Elastic Nut M8

233281414

$1.31

56

Flat Washer 8 mm

234081410

$0.79

57

FOOTREST EXTENSION - Call your local BRP dealership

518324701

Unavailable

58

Hex. Flange Screw M6 X 16

207661644

$0.70

59

Pop Rivet 3/16"

390402400

$0.28

60

Pop Rivet 3/16"

390402400

$0.28

61

RH WIRE PROTECTOR - Call your local BRP dealership

518325199

Unavailable

62

LH WIRE PROTECTOR - Call your local BRP dealership | Renegade X

518325200

Unavailable
