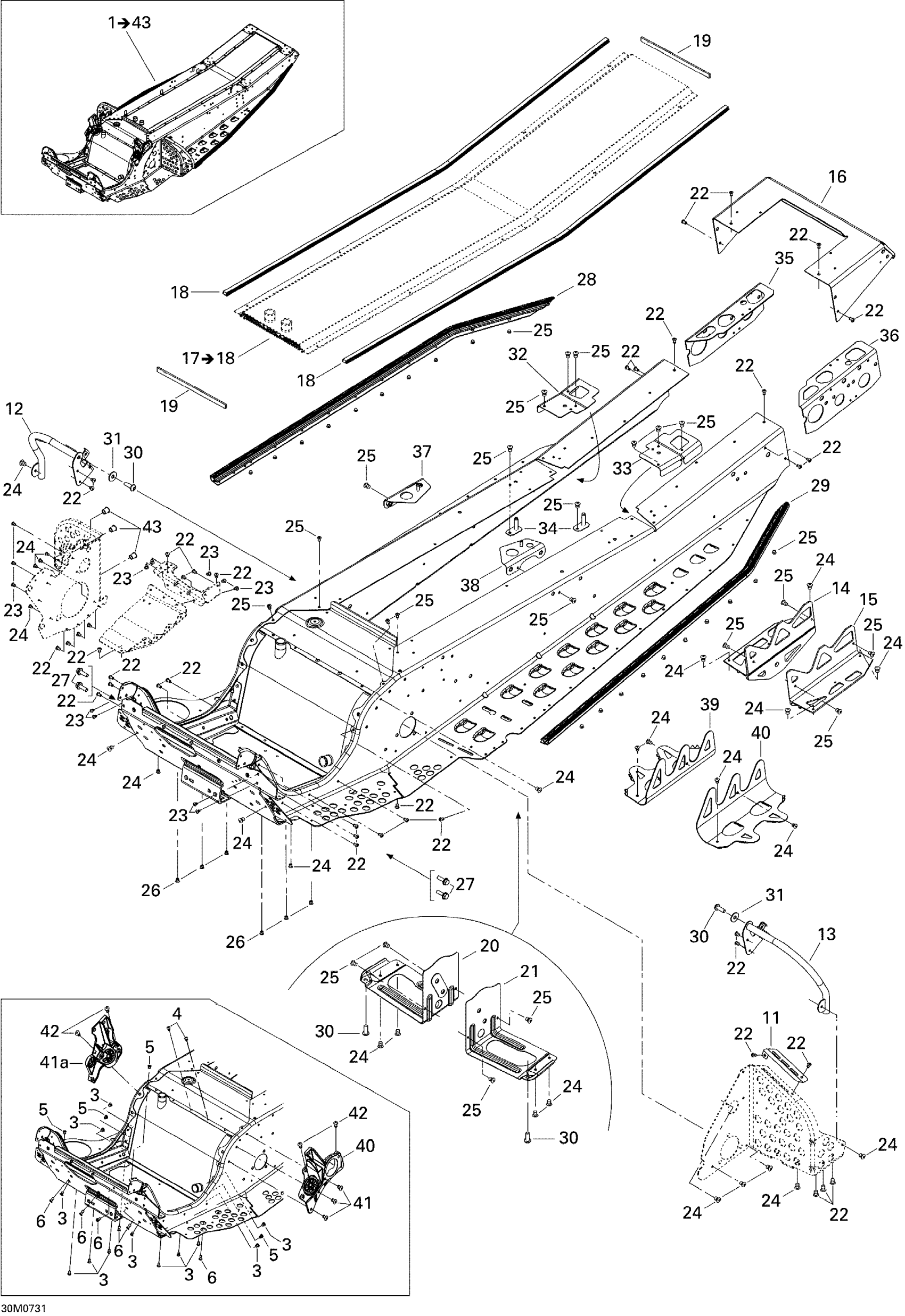

Ski-Doo MX Z 1000 SDI Renegade RT, 2007 09- Frame Diagram
#
Description
Price
1
FRAME ASS'Y - Call your local BRP dealership | Includes 1 to 43
415129231
Unavailable
11
PLATE, BLACK - Call your local BRP dealership
518323105
Unavailable
12
RH Toe Hold Support
518324098
Unavailable
13
LH Toe Hold Support
518324097
Unavailable
14
RH Slide Bracket
518324686
Unavailable
15
LH Slide Bracket
518324687
Unavailable
16
Rear Cap
518325177
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Radiator Protector
518324068
Unavailable
19
GASKET - Call your local BRP dealership
293200104
Unavailable
20
RH FOOTREST REINFORCEMENT - Call your local BRP dealership
518323952
Unavailable
21
LH Footrest Reinforcement
518323954
Unavailable
26
HENROB RIVET - Call your local BRP dealership
390910300
Unavailable
28
RH ROLLER - Call your local BRP dealership
518324957
Unavailable
29
LH ROLLER - Call your local BRP dealership
518324958
Unavailable
30
SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter
205982086
Unavailable
32
RH FRAME REINFORCEMENT - Call your local BRP dealership
518324431
Unavailable
33
LH FRAME REINFORCEMENT - Call your local BRP dealership
518324432
Unavailable
34
Tank Bracket
518322791
Unavailable
35
RH REINFORCEMENT - Call your local BRP dealership
518324959
Unavailable
36
LH Reinforcement
518324960
Unavailable
37
RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership
518324385
Unavailable
38
LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership
518324386
Unavailable
39
RH TUNNEL LINER - Call your local BRP dealership
518324759
Unavailable
40
LH TUNNEL LINER - Call your local BRP dealership
518324760
Unavailable
41
LH Engine Support
518323715
Unavailable
41a
RH ENGINE SUPPORT - Call your local BRP dealership
518323716
Unavailable
