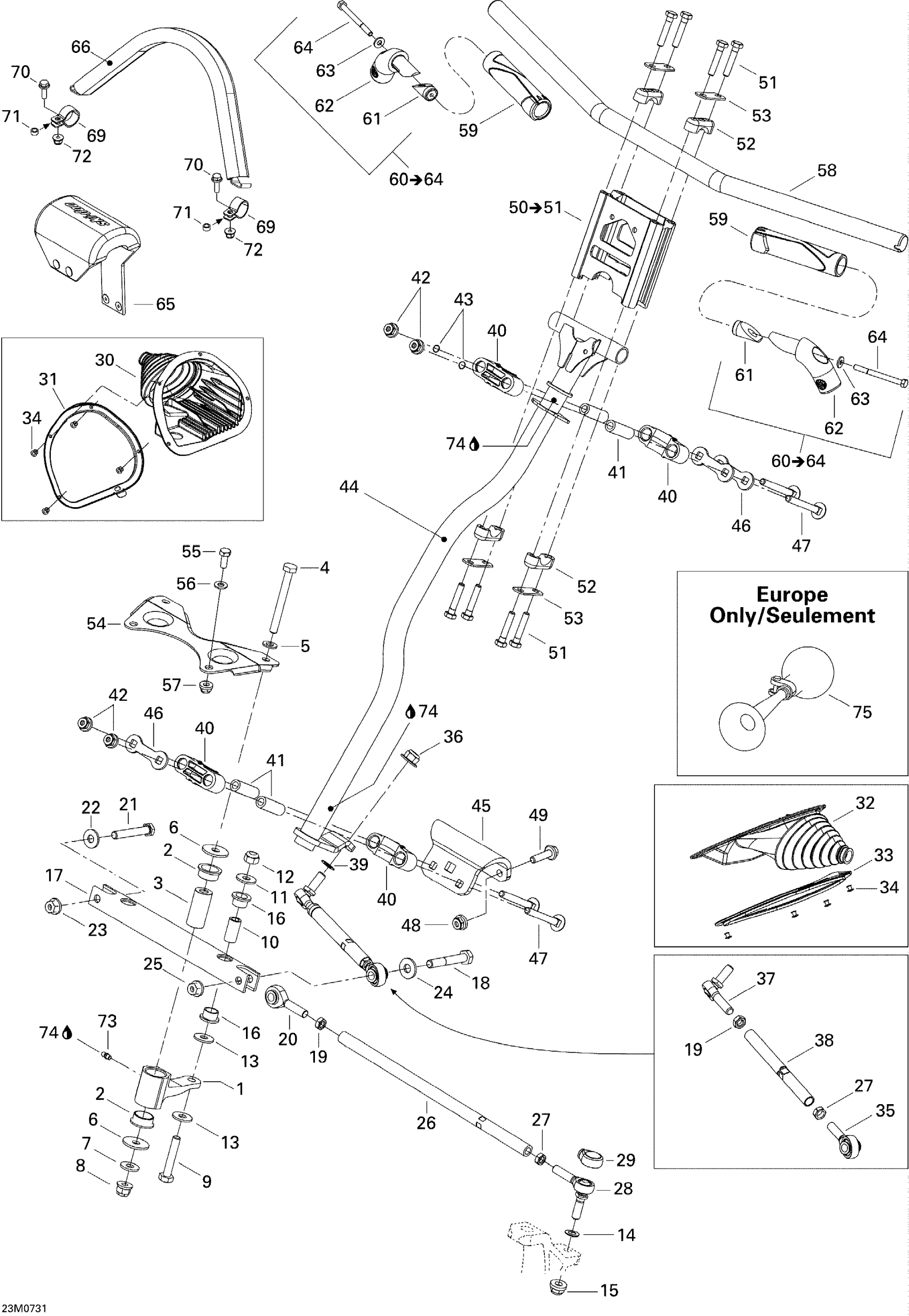

Ski-Doo MX Z 1000 SDI Renegade RT, 2007 Steering System Diagram

#

Description
Price

1

RH SWIVEL ARM - Call your local BRP dealership

506152124

Unavailable

1

LH SWIVEL ARM - Call your local BRP dealership

506152123

Unavailable

2

CUSHION - Call your local BRP dealership

415041100

Unavailable

3

SWIVEL PIVOT - Call your local BRP dealership

506151272

Unavailable

4

HEX. SCREW M10 X 90 - Call your local BRP dealership

207009086

Unavailable

5

Washer

503183800

$3.20

6

Washer 10 mm

506150000

$2.63

7

Flat Washer M10 | 4X4

250200014

$1.17

8

Flange Nut M10

732610084

$5.49

9

Hex. Screw M10 X 55

207005544

$1.85

10

Pivot Bar

506151273

$15.00

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.68

13

Washer

250200032

$4.98

14

Washer

503175800

$3.26

15

Hex. Flange Elastic Nut M10

250100165

$0.70

16

Swivel Bushing

503191555

$5.71

17

SWIVEL BAR - Call your local BRP dealership

506151328

Unavailable

18

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

19

LH Threaded Hex. Jam Nut M10

250100016

$0.72

20

LH Ball Joint

506151810

Unavailable

21

Hex. Screw M10 X 45

207004544

$1.65

22

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

23

Hex. Flange Elastic Nut M10

233201414

$1.26

24

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

25

Hex. Flange Elastic Nut M10

233201414

$1.26

26

TIE-ROD - Call your local BRP dealership

506151340

Unavailable

27

RH Threaded Hex. Jam Nut M10

732610010

$0.72

28

BALL JOINT - Call your local BRP dealership

506152212

Unavailable

29

PROTECTION CAP - Call your local BRP dealership

506151650

Unavailable

30

RH Tie-Rod Cap

506151725

$40.74

31

RH RETAINER RING - Call your local BRP dealership

506151356

Unavailable

32

LH Tie-Rod Cap

506151726

$40.74

33

LH RETAINER RING - Call your local BRP dealership

506151357

Unavailable

34

Avex Rivet

390909100

$0.29

35

LH Thread Ball Joint

506152081

$39.97

36

Hex. Flange Elastic Nut M10

250100165

$0.70

37

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

38

TIE ROD - Call your local BRP dealership

506152006

Unavailable

39

Washer

503175800

$3.26

40

Housing Half

506150400

$7.31

41

Housing Bushing

506150500

$7.49

42

Hex. Flange Elastic Nut M8

233281414

$1.14

43

O-RING - Call your local BRP dealership

506151140

Unavailable

44

MAIN TUBE - Call your local BRP dealership

506152157

Unavailable

45

MAIN TUBE SUPPORT - Call your local BRP dealership

506151819

Unavailable

46

Stopper Plate

506150600

$4.15

47

Carriage Bolt M8 X 70

207787044

$1.11

48

Hex. Flange Elastic Nut M8

233281414

$1.14

49

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

50

Steering Extension Kit

860603700

Unavailable

51

Hex. Screw With Nylon M8 X 40

250000074

$1.83

52

Steering Support

709400919

$20.74

53

Stiffner

709400509

$4.43

54

PIVOT SUPPORT - Call your local BRP dealership

506151536

Unavailable

55

Hex. Screw M8 X 25

207182544

$0.74

56

Flat Washer 8 mm

234081410

$0.69

57

Hex. Flange Elastic Nut M8

233281414

$1.14

58

HANDLE BAR - Call your local BRP dealership

506151782

Unavailable

59

Heated Handle Grip

506152211

$79.20

59

HANDLE GRIP - Call your local BRP dealership | REN X

506152122

Unavailable

60

J-hook Ass'y | Includes 30 to 34

506151936

Unavailable

61

Wedge Lock

506151839

Unavailable

62

Short J-hook

506151837

Unavailable

63

Flat Washer

250200039

$0.72

64

HEX. SCREW M6 X 70 - Call your local BRP dealership

207067084

Unavailable

65

STEERING PAD - Call your local BRP dealership

506152522

Unavailable

66

Strap Ass'y | Package XMR

506152115

$43.05

69

Black Support Plate

506152536

$8.60

70

Hex. Flange Screw M6 X 20

207662084

$0.83

71

Bushing | Package XMR

506152156

$5.35

72

Hex. Flange Elastic Nut M6

233261494

$1.26

73

Grease Fitting

408200700

$2.80

74

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

75

Horn

549011291

$35.35
