Description

Price

1

DRIVE AXLE - Call your local BRP dealership

504152424

Unavailable

2

SPROCKET, 10 TEETH, INTERIOR/EXTERIOR - Call your local BRP dealership | Use drive axle assembly w/sprockets 504152849 for SUMMIT 1000SDI 2005-2007, RENEGADE 1000SDI 2007**Use drive axle assembly w/sprockets 504152847 for all other model applications

504152502

Unavailable

3

Oil Seal Ass'y

504151918

$20.49

4

CIRCLIP - Call your local BRP dealership

371910200

$2.09

5

Ball Bearing

293350060

$38.49

6

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

7

TRACK 16 X 136 X 1.75 ASS'Y - Call your local BRP dealership | Includes 7 to 9, REN X 1,75

504152406

Unavailable

7

Track Ass'y 16"x136"x1.2" | Europe, Includes 8 to 10

504152665

Unavailable

7

TRACK 16 X 136 X 1.75 ASS'Y - Call your local BRP dealership | Includes 7 to 9, REN X 1,75

504152406

Unavailable

8

Track Guide | Track Width 16''

415129528

$3.29

9

Cleat

504152651

$9.69

10

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

11

FLANGE - Call your local BRP dealership

501025000

Unavailable

12

SENSOR - Call your local BRP dealership

504152409

Unavailable

13

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

14

Hex. Flange Elastic Nut M8

233281414

$1.47

15

Counter Shaft

504152432

Unavailable

16

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

17

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

18

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

19

Spacer

417300252

$5.49

20

Spacer

417300265

$2.29

21

Shim

504112000

$8.59

22

CARRIAGE BOLT M10 - Call your local BRP dealership

250000164

Unavailable

22a

CARRIAGE BOLT M10 - Call your local BRP dealership

250000165

Unavailable

23

Spacer

504083800

Unavailable

24

SPACER - Call your local BRP dealership

504152524

Unavailable

25

Loctite 271, 10 ml

293800005

$26.99

26

WASHER - Call your local BRP dealership

504073700

Unavailable

27

CHAIN CASE - Call your local BRP dealership

504152308

Unavailable

28

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

29

Hex. Flange Elastic Nut M10

233201414

$1.58

30

Loctite 243, 10 ml

293800060

$21.49

31

CYLINDER PIN - Call your local BRP dealership | Package-2X4, 4X4

732620001

Unavailable

32

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

33

Hex. Nut M10 X 1.5

232006414

$1.37

34

CHAIN TENSIONER - Call your local BRP dealership

504152245

Unavailable

35

TENSIONER AXLE - Call your local BRP dealership

504152323

Unavailable

36

WASHER - Call your local BRP dealership

504080300

Unavailable

37

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

38

ROLLER - Call your local BRP dealership

414531300

Unavailable

39

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

40

OIL SEAL - Call your local BRP dealership

504152544

Unavailable

41

OIL SEAL - Call your local BRP dealership

504152545

Unavailable

42

SPACER - Call your local BRP dealership

504152400

Unavailable

43

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

44

O-RING - Call your local BRP dealership

293300109

Unavailable

45

Ball Bearing

293350115

$12.11

46

Ball Bearing

504152418

$23.99

47

SHIM - Call your local BRP dealership

504152398

Unavailable

48

Sprocket 25 Teeth

504153912

$44.99

48

Sprocket 27 Teeth

504153913

$49.99

48

Sprocket 25 Teeth

504153912

$44.99

49

HEX. CASTLE NUT 20 X 1.5 - Call your local BRP dealership

250100079

Unavailable

50

Cap

504152523

Unavailable

51

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

52

Large Drive Chaine

504152421

Unavailable

53

SPROCKET 49 TEETH - Call your local BRP dealership

504152441

Unavailable

54

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

55

O-RING - Call your local BRP dealership

504152299

Unavailable

56

COVER - Call your local BRP dealership

504152416

Unavailable

57

Hex. Screw M10 X 30

207103044

$1.48

58

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

59

FILLER CAP ASSY. - Call your local BRP dealership

504152322

Unavailable

60

O-RING - Call your local BRP dealership

414969400

Unavailable

62

Plug 1/8”-27

504151921

$4.19

63

Washer 10 mm

506150000

$2.74

64

Ball Bearing

504152005

$46.49

65

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

66

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

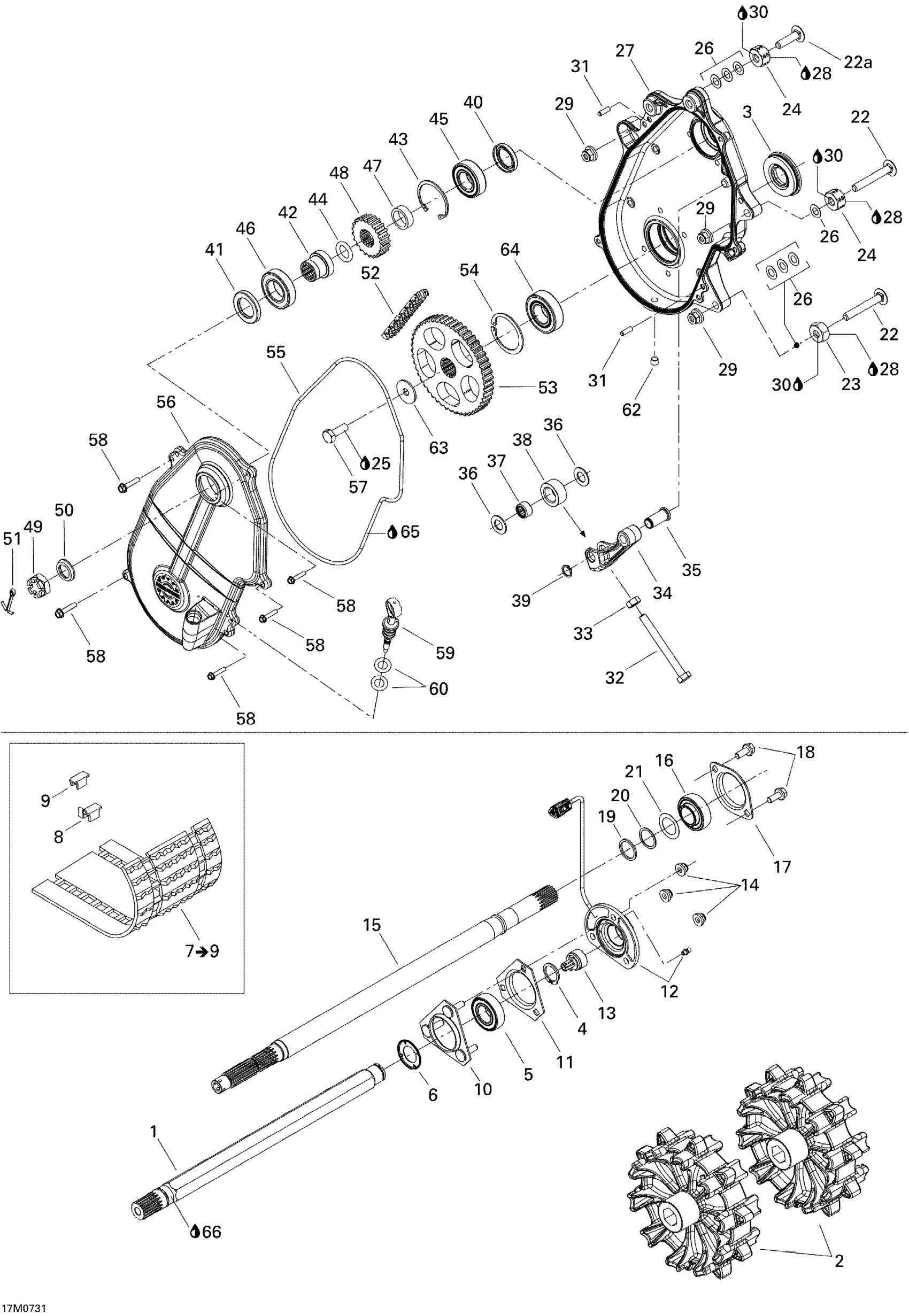

Ski-Doo MX Z 1000 SDI Renegade RT, 2007 05- Drive System Diagram

DRIVE AXLE - Call your local BRP dealership

SPROCKET, 10 TEETH, INTERIOR/EXTERIOR - Call your local BRP dealership | Use drive axle assembly w/sprockets 504152849 for SUMMIT 1000SDI 2005-2007, RENEGADE 1000SDI 2007**Use drive axle assembly w/sprockets 504152847 for all other model applications

Oil Seal Ass'y

CIRCLIP - Call your local BRP dealership

Ball Bearing

BEARING PROTECTOR - Call your local BRP dealership

TRACK 16 X 136 X 1.75 ASS'Y - Call your local BRP dealership | Includes 7 to 9, REN X 1,75

Track Ass'y 16"x136"x1.2" | Europe, Includes 8 to 10

TRACK 16 X 136 X 1.75 ASS'Y - Call your local BRP dealership | Includes 7 to 9, REN X 1,75

Track Guide | Track Width 16''

Cleat

BEARING HOUSING - Call your local BRP dealership

FLANGE - Call your local BRP dealership

SENSOR - Call your local BRP dealership

MAGNETIC ADAPTOR - Call your local BRP dealership

Hex. Flange Elastic Nut M8

Counter Shaft

Ball Bearing Kit This part replaces 504152535.

BEARING HOUSING ASS'Y - Call your local BRP dealership

Hex. Flange Screw M8 X 20, Scotch Grip

Spacer

Spacer

Shim

CARRIAGE BOLT M10 - Call your local BRP dealership

CARRIAGE BOLT M10 - Call your local BRP dealership

Spacer

SPACER - Call your local BRP dealership

Loctite 271, 10 ml

WASHER - Call your local BRP dealership

CHAIN CASE - Call your local BRP dealership

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

Hex. Flange Elastic Nut M10

Loctite 243, 10 ml

CYLINDER PIN - Call your local BRP dealership | Package-2X4, 4X4

HEX. SCREW M10 X 100 - Call your local BRP dealership

Hex. Nut M10 X 1.5

CHAIN TENSIONER - Call your local BRP dealership

TENSIONER AXLE - Call your local BRP dealership

WASHER - Call your local BRP dealership

NEEDLE BEARING - Call your local BRP dealership

ROLLER - Call your local BRP dealership

CIRCLIP - Call your local BRP dealership

OIL SEAL - Call your local BRP dealership

OIL SEAL - Call your local BRP dealership

SPACER - Call your local BRP dealership

CIRCLIP - Call your local BRP dealership

O-RING - Call your local BRP dealership

Ball Bearing

Ball Bearing

SHIM - Call your local BRP dealership

Sprocket 25 Teeth

Sprocket 27 Teeth

Sprocket 25 Teeth

HEX. CASTLE NUT 20 X 1.5 - Call your local BRP dealership

Cap

PIN COTTER - Call your local BRP dealership

Large Drive Chaine

SPROCKET 49 TEETH - Call your local BRP dealership

CIRCLIP, INTERIOR - Call your local BRP dealership

O-RING - Call your local BRP dealership

COVER - Call your local BRP dealership

Hex. Screw M10 X 30

Hex. Flange Screw M6 X 30 | International

FILLER CAP ASSY. - Call your local BRP dealership

O-RING - Call your local BRP dealership

Plug 1/8”-27

Washer 10 mm

Ball Bearing

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

SYNTHETIC GREASE, 400 G - Call your local BRP dealership
