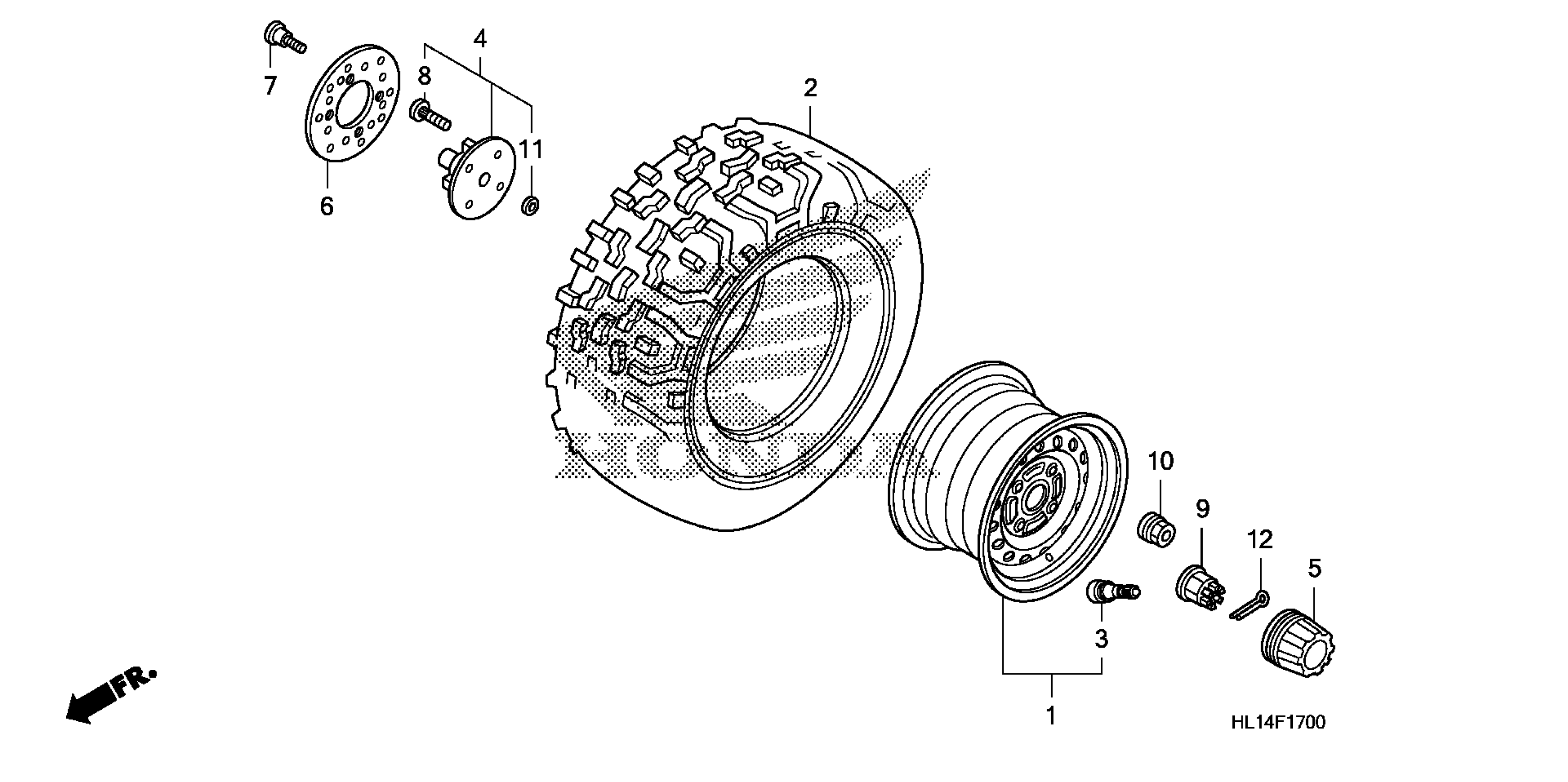

Honda MUV7002AC (13) BIG RED, MEX, VIN# 3H1VE011-DD400001 WHEEL Diagram

#

Description

Price

1

WHEEL SUB-ASSY.

42650-HL1-A50

$75.26

2

TIRE (25X10.00-12NHS) (CHENG SHIN) (MUST BUY 2 TO REPLACE REAR TI RES AS A SET. PIB# MPB 13897)

42711-HL1-A51

Unavailable

3

VALVE, RIM (TR412)

42753-HF1-670

$5.37

4

HUB SUB-ASSY., WHEEL

44615-HL1-A00

$332.43

5

CAP, WHEEL CENTER

44732-HL1-A00

$12.72

6

DISK, BRAKE

45251-HL1-A01

$121.48

7

BOLT, FR. DISK (8X24) (SAGA)

90105-KL8-741

$5.90

7

BOLT, FR. DISK (8X24)

90105-KR3-000

$6.07

7

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

7

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

8

BOLT, WHEEL (ROCKNEL FASTENER) This part replaces 90113-SA0-006.

90113-SM1-005

$2.78

9

NUT, AXLE (20MM)

90304-HM7-A10

$12.05

10

NUT, WHEEL (FUSE RASHI)

90304-SC2-000

$9.41

11

DUST SEAL (22X26.5X11)

91263-HN8-003

$4.92

12

PIN, SPLIT (4.0X30)

94201-40300

$1.49
