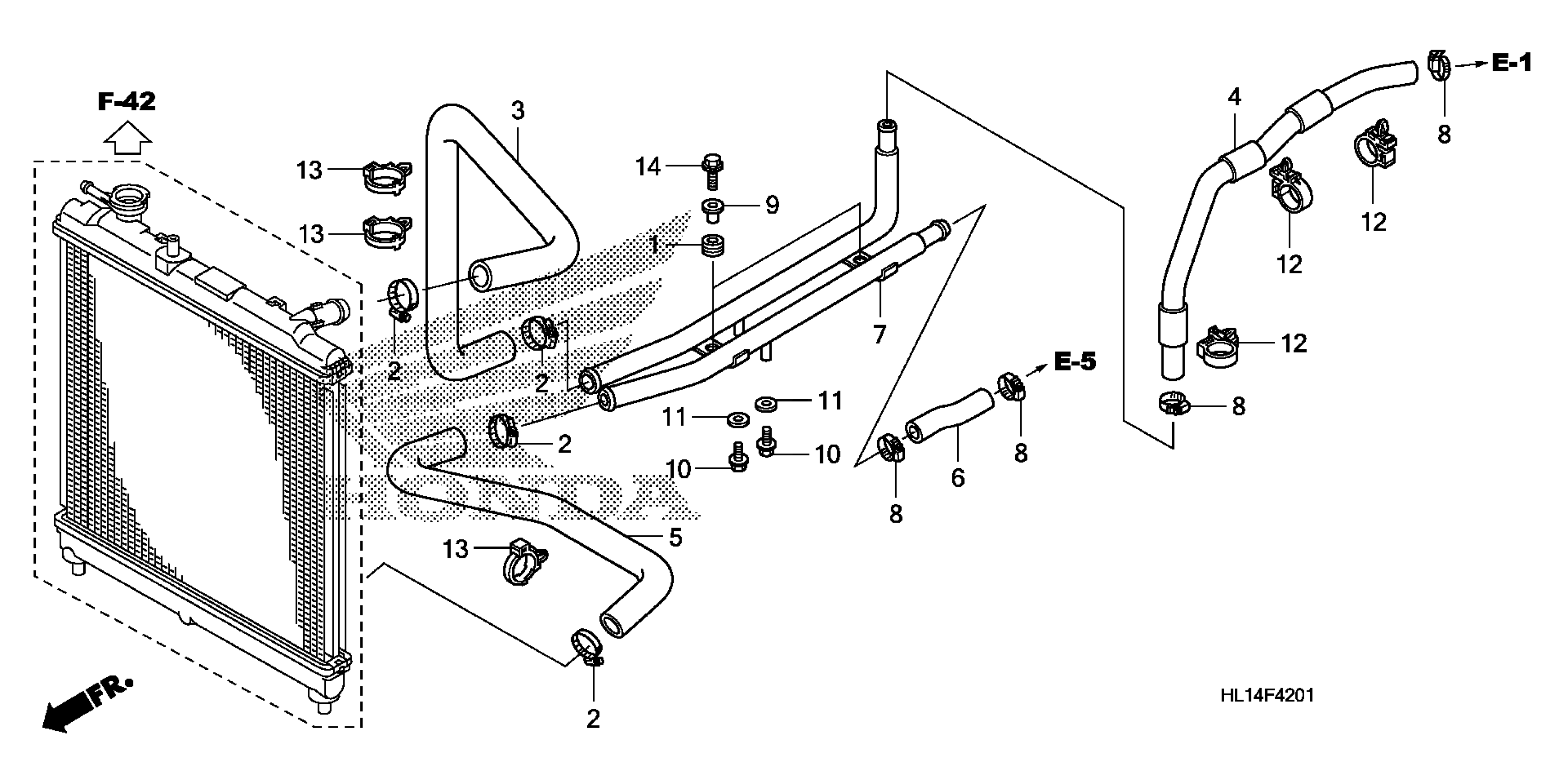

Honda MUV7002AC (13) BIG RED, MEX, VIN# 3H1VE011-DD400001 WATER PIPE + WATER HOSE Diagram

#

Description

Price

1

RUBBER, RADIATOR MOUNTING

19051-KGB-610

$2.84

2

BAND, WATER HOSE

19504-ZG8-000

$5.56

3

HOSE, FR. WATER (UPPER)

19505-HL1-A00

$46.65

4

HOSE, RR. WATER (UPPER)

19506-HL1-A00

$34.91

5

HOSE, FR. WATER (LOWER)

19507-HL1-A00

$33.74

6

HOSE, RR. WATER (LOWER)

19508-HL1-A00

$9.88

7

PIPE, WATER

19509-HL1-A00

$125.00

8

CLAMP, HOSE (22-29MM)

19517-ML7-691

$10.68

9

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.28

9

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.28

10

BOLT, SEALING (8MM)

90024-612-000

$4.54

11

GASKET (8MM)

90471-580-000

$2.80

12

CLIP, WATER HOSE

91556-HL1-A00

$3.06

13

CLIP, WIRE HARNESS (BLACK)

91556-SK7-003

$5.19

14

BOLT, FLANGE (6X22)

95701-06022-00

$1.66
