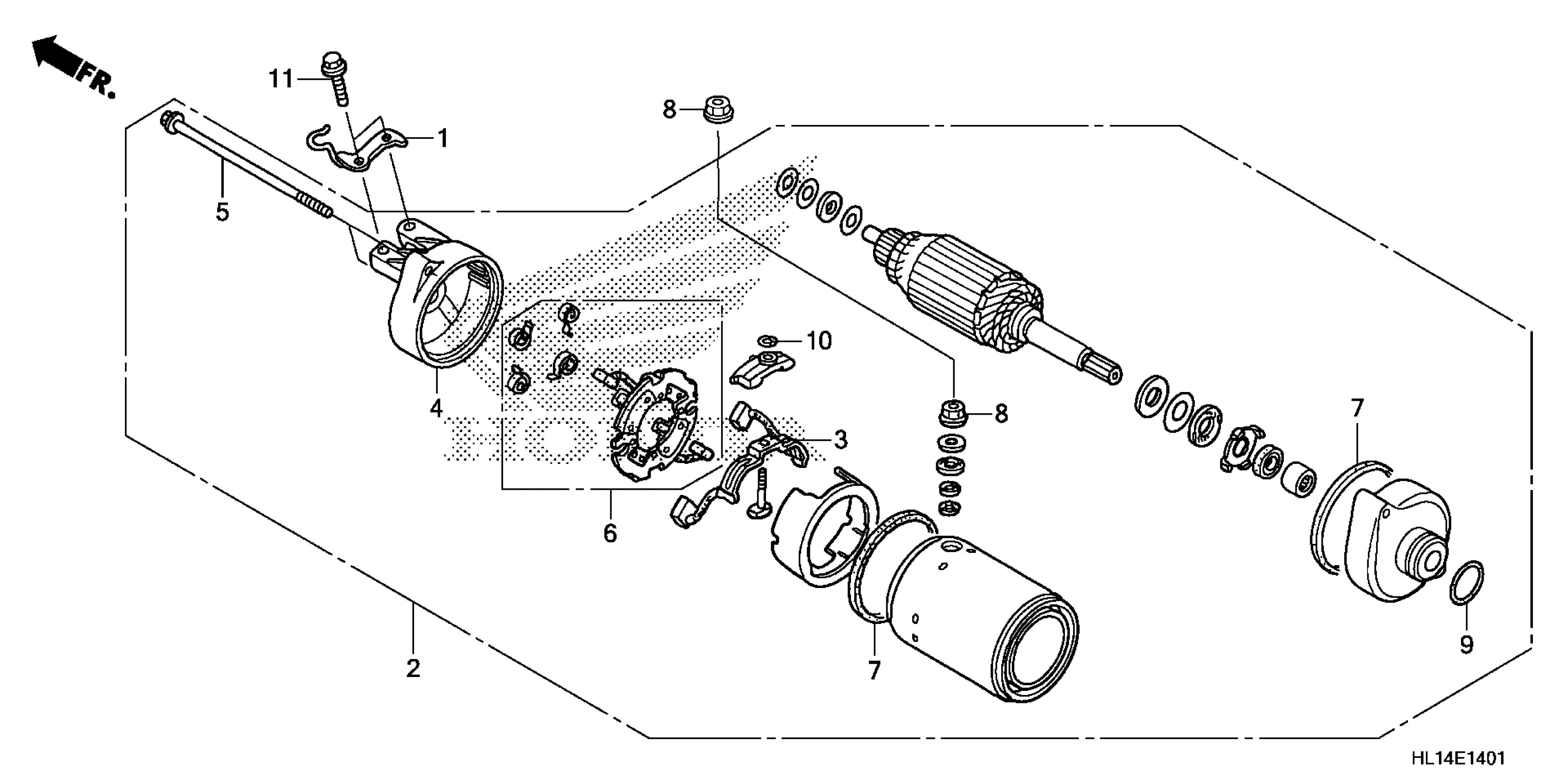

Honda MUV7002AC (13) BIG RED, MEX, VIN# 3H1VE011-DD400001 STARTING MOTOR (2) Diagram

#

Description
Price

1

CLIP, HOSE

19315-HN8-A60

$4.93

2

STARTER MOTOR ASSY.

31200-HN8-003

$425.27

3

TERMINAL SET, BRUSH

31201-MR6-008

$21.00

4

BRACKET, RR.

31203-HN8-000

$16.43

5

BOLT, SETTING

31205-MR1-008

$3.64

6

HOLDER SET, BRUSH

31206-MR6-008

$22.08

7

RING

31207-KS5-901

$2.90

8

NUT-WASHER (6MM)

90071-MB0-000

$1.88

9

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

9

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

10

O-RING (4X2)

91320-MB0-000

$2.20

11

BOLT, FLANGE (6X25)

95801-06025-00

$0.99
