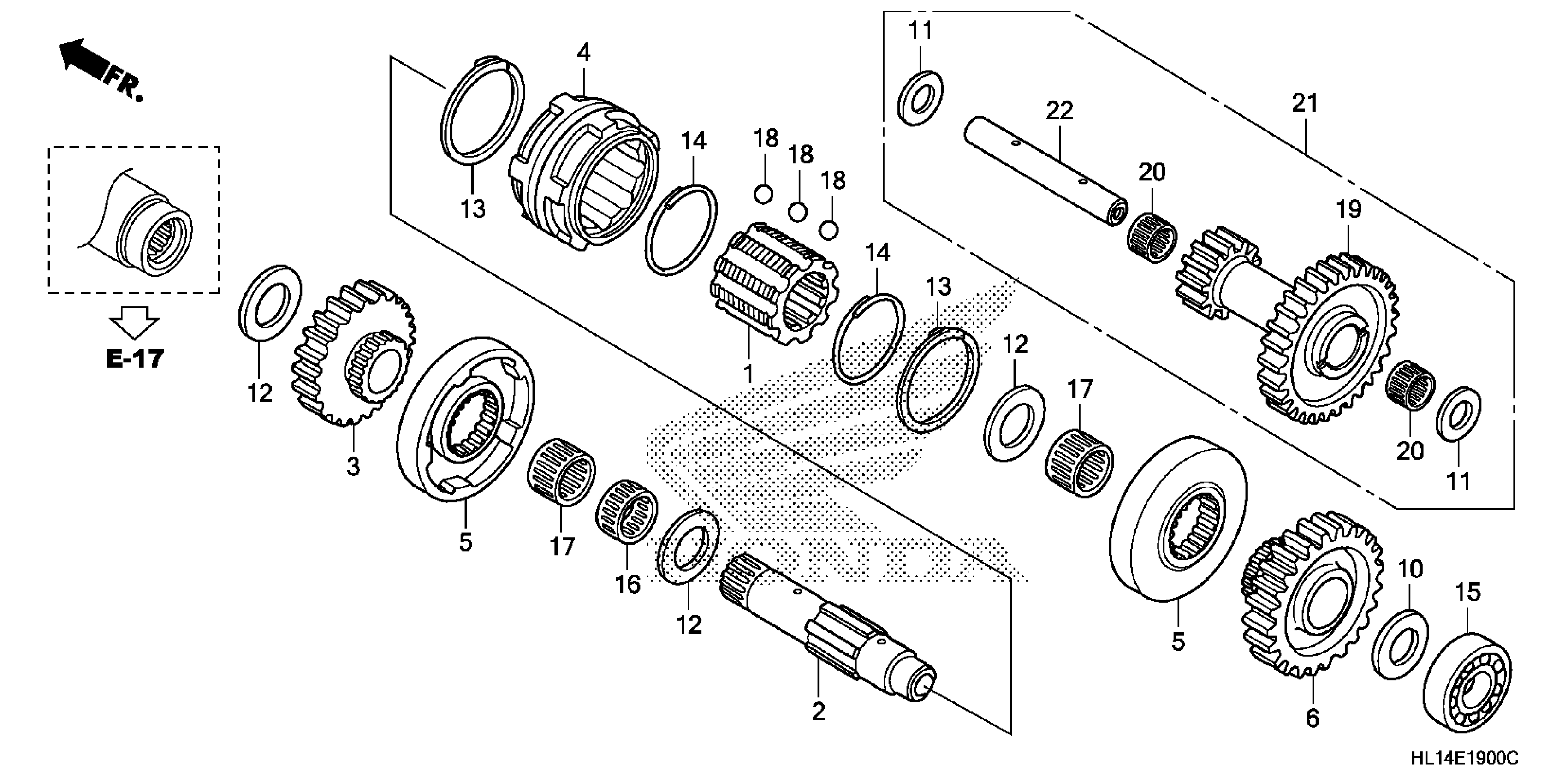

Honda MUV7002AC (13) BIG RED, MEX, VIN# 3H1VE011-DD400001 REVERSE GEAR Diagram

COLLAR, FINAL SHIFTER

23433-HN8-000

$28.82

SHAFT, FINAL DRIVE

23511-HN8-000

$47.25

GEAR, FINAL DRIVE (16T)

23621-HL1-A00

$34.48

SHIFTER, FINAL

23641-HL1-A00

$33.74

GUIDE, FINAL SHAFT

23645-HN8-000

$78.46

GEAR, REVERSE DRIVE (24T)

23711-HN8-000

$49.07

WASHER, SPECIAL (17MM)

90403-HN8-000

$2.90

WASHER, THRUST (13X24X1)

90451-HN8-000

$2.07

WASHER, THRUST (20MM)

90458-292-000

$3.54

RING, DOUBLE COIL (INNER)

90613-969-003

$14.25

CLIP (32.5MM)

90616-969-000

$2.18

BEARING, RADIAL BALL (6203U SPL.)

91006-HN2-003

$12.71

BEARING, NEEDLE (20X24X13) (NTN)

91013-PA9-003

$17.34

BEARING, NEEDLE (20X24X17)

91051-727-000

$28.76

BALL, STEEL (#7) (7/32)

96211-07000

$1.49

GEAR, REVERSE IDLE (13T/25T)

23722-HL1-A50

$86.25

BEARING, CONNECTING ROD SMALL END (NTN)

91102-GAS-003

$8.90

SHAFT, REVERSE IDLE

23730-HL1-A50

$17.83
