Description

Price

1

SEAL SET, PISTON

06431-MW8-405

$6.75

2

PAD SET, L. RR.

06454-HL1-A01

$46.60

3

PAD SET, R. RR.

06455-HL1-A01

$46.60

4

BRACKET, RR. CALIPER

43111-HL1-A01

$62.84

5

CALIPER SUB-ASSY., L. RR.

43150-HL1-A01

$307.18

6

PISTON ASSY.

43215-SH3-931

$108.05

7

CUP

43218-SD2-931

$8.10

8

BEARING A

43223-SD2-932

$16.15

9

SPRING B, ADJUSTING

43224-SD2-931

$5.94

10

SPRING, PAD

43227-SF1-003

$16.25

11

SHAFT A (R. SIDE)

43228-SD2-933

$31.97

12

ROD

43229-SD2-931

$8.54

13

O-RING

43232-SD2-931

$3.44

14

PISTON, SLEEVE

43233-TR0-A01

$21.33

15

COVER, DUST This part replaces 43234-SD2-931.

43234-S04-003

$5.62

15

COVER, DUST

43234-S04-003

$5.62

16

PIN A

43235-S84-A51

$9.71

17

SPACER This part replaces 43236-SD2-931.

43236-S04-003

$8.30

17

SPACER

43236-S04-003

$8.30

18

RING, RETAINING

43238-SD2-931

$10.43

19

GUIDE, SPRING

43241-SD2-931

$10.16

20

COVER, SHAFT

43242-SD2-933

$11.77

21

NUT, PARKING

43243-SD2-931

$10.61

22

RETAINER, BRACKET

43244-HL1-A01

$3.46

23

LEVER, L.

43245-HL1-A01

$9.21

24

SPRING, L. RETURN

43246-HL1-A01

$10.62

25

ARM, L.

43247-HL1-A01

$14.18

26

SHAFT B (L. SIDE)

43248-SD2-933

$27.62

27

BOLT, ADJUSTER

43249-S04-003

$23.36

28

CALIPER SUB-ASSY., R. RR.

43250-HL1-A01

$307.18

29

PIN B

43262-S84-A51

$6.23

30

LEVER, R.

43265-HL1-A01

$9.21

31

SPRING, R. RETURN

43266-HL1-A01

$7.41

32

ARM, R.

43267-HL1-A01

$14.18

33

COVER, R. RR. CALIPER

43275-HL1-A00

$9.08

34

COVER, L. RR. CALIPER

43276-HL1-A00

$9.08

35

SCREW, BLEEDER

43352-SM4-951

$8.95

36

CAP, BLEEDER SCREW

43353-SD5-003

$6.38

37

BOLT, FLANGE (8X22)

45240-SC2-003

$7.78

38

BOLT, FLANGE (10X30)

90103-HL1-A00

$2.46

39

BOLT, SOCKET (6X15)

90114-HP0-A00

$2.11

40

BOLT-WASHER (10X25)

93402-10025-08

$2.38

41

WASHER, SPRING (10MM)

94111-10800

$1.49

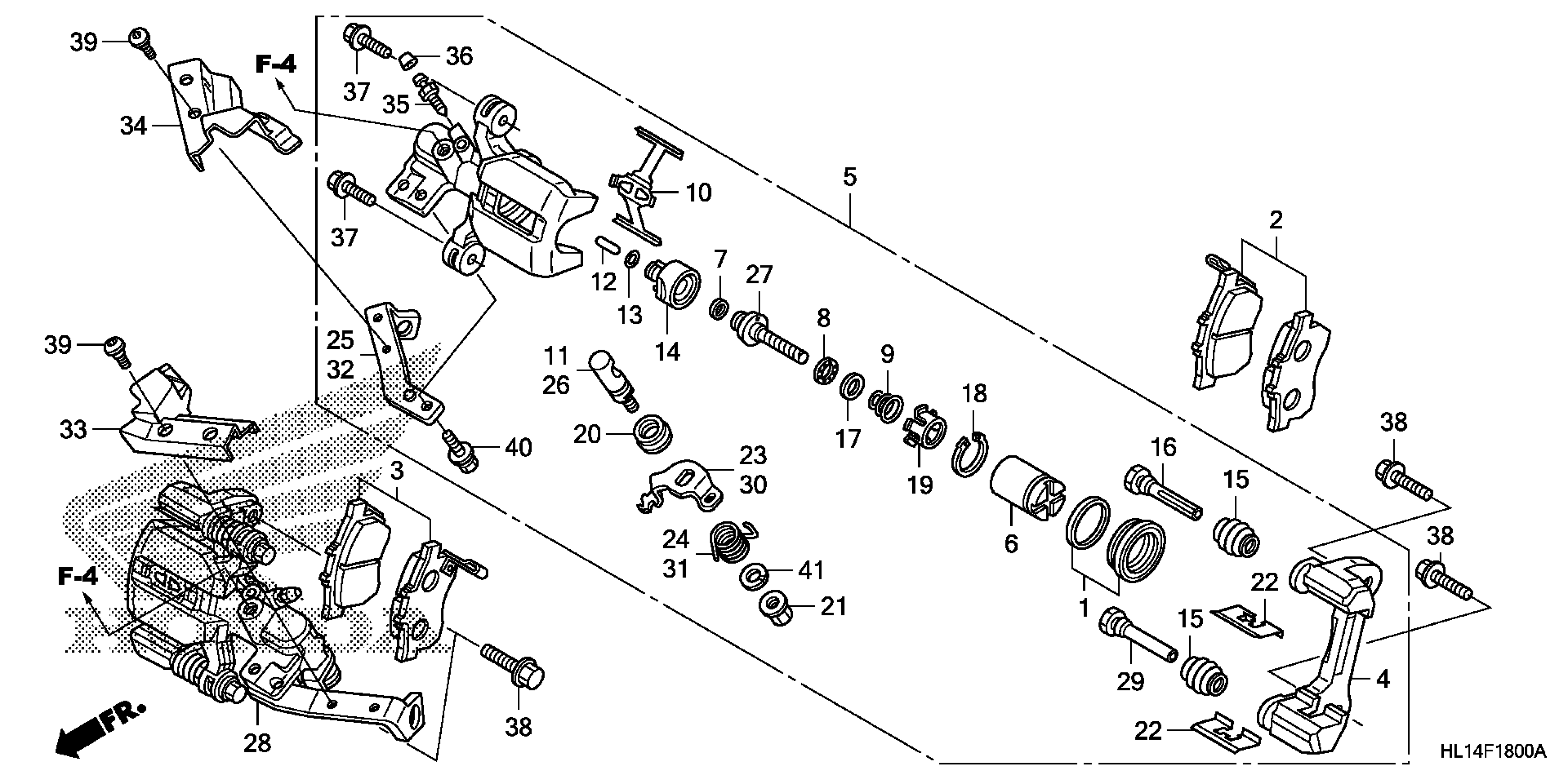

Honda MUV7002AC (13) BIG RED, MEX, VIN# 3H1VE011-DD400001 REAR BRAKE CALIPER Diagram
