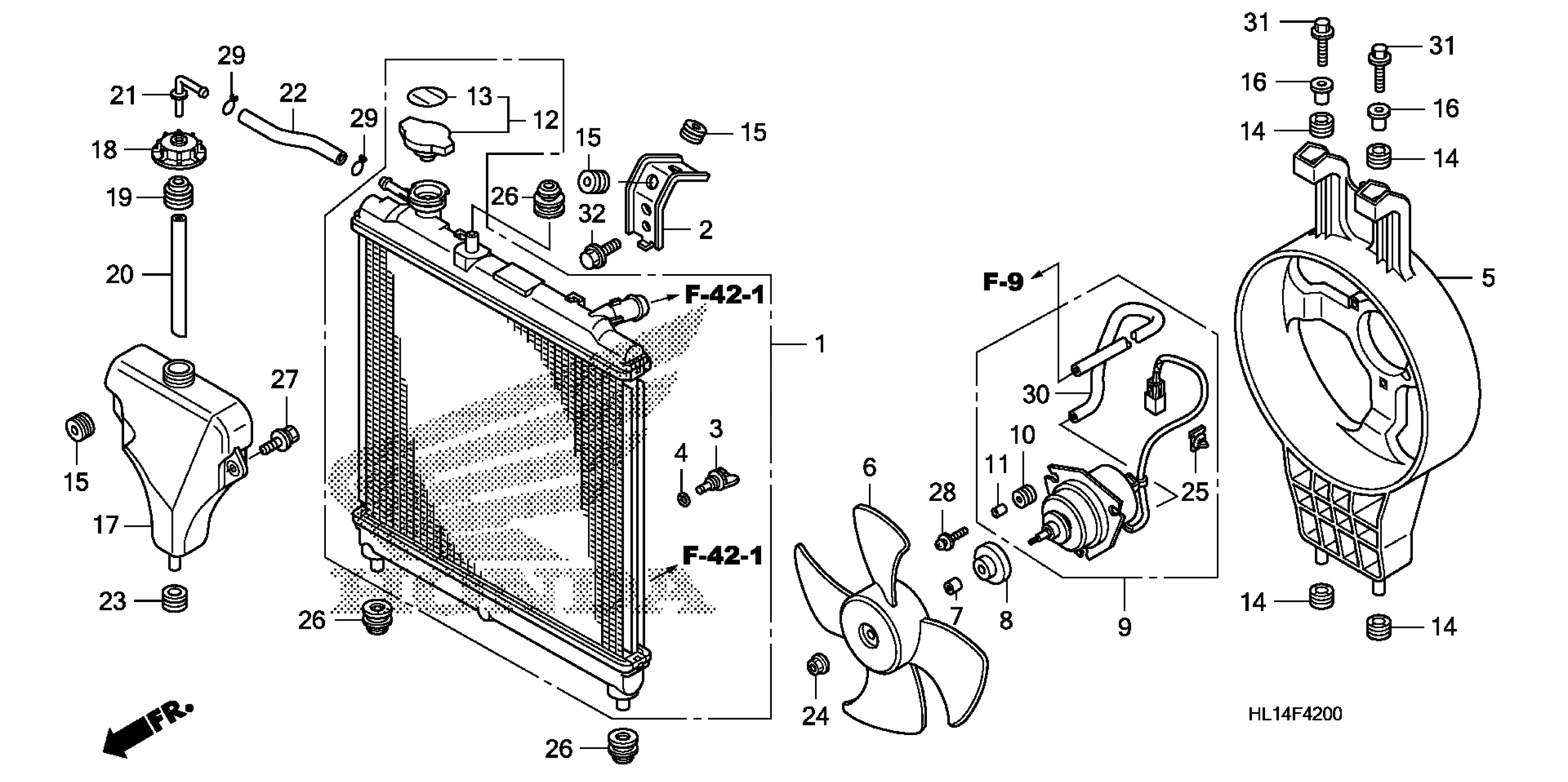

Honda MUV7002AC (13) BIG RED, MEX, VIN# 3H1VE011-DD400001 RADIATOR Diagram

#

Description
Price

1

RADIATOR (TOYO)

19010-PTF-J51

$472.54

2

STAY, RADIATOR

19011-HL1-A00

$100.16

3

PETCOCK, DRAIN (TOYO)

19011-PH2-004

$15.44

4

GASKET, DRAIN (TOYO)

19012-PD2-004

$4.19

5

STAY, COOLING FAN

19015-HL1-A00

$114.70

6

SET, COOLING FAN This part replaces 19020-P0A-004.

19020-P0A-305

Unavailable

6

SET, COOLING FAN

19020-P0A-305

Unavailable

7

SPACER, FAN

19021-HC4-000

$5.28

8

CUP, WASHER

19021-VM5-305

$20.30

9

MOTOR, COOLING FAN

19030-HL1-A01

$354.54

10

GROMMET

19031-HA7-671

$4.04

11

COLLAR

19032-HA7-671

$3.48

12

CAP, RADIATOR (TOYO)

19045-PWA-004

$24.51

13

LABEL, RADIATOR CAP

19046-RAA-A00

$4.59

14

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

15

RUBBER, RADIATOR MOUNTING

19051-KGB-610

$3.07

16

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

17

TANK, RESERVE

19101-RAA-A00

$31.74

18

CAP, RESERVE TANK

19102-PM5-A00

$3.20

19

SEAL, RESERVE TANK

19103-HL1-A00

$3.75

20

TUBE, RESERVE TANK

19104-HL1-A00

$3.41

21

JOINT, RESERVE TANK

19106-PA0-020

$3.30

22

TUBE, RADIATOR RESERVE

19111-HL1-A00

$3.21

23

GROMMET, FENDER

88911-MJ3-000

$1.79

24

NUT, HEX. (5MM) (MITSUBA)

90041-PG6-004

$5.26

25

CLIP, CONNECTOR (RED)

91555-SM4-003

$4.80

26

RUBBER, RADIATOR MOUNTING (LOWER)

91624-SD5-000

$3.77

27

BOLT-WASHER (6X14)

93404-06014-08

$1.62

28

SCREW-WASHER (4X20)

93894-04020-00

$1.49

29

CLIP, TUBE (C11)

95002-70000

$1.56

30

BULK HOSE, VINYL (4X7X8000) (4X7X400)

95003-07008-60M

$24.47

31

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

32

BOLT, FLANGE (8X12)

95701-08012-00

$1.49
