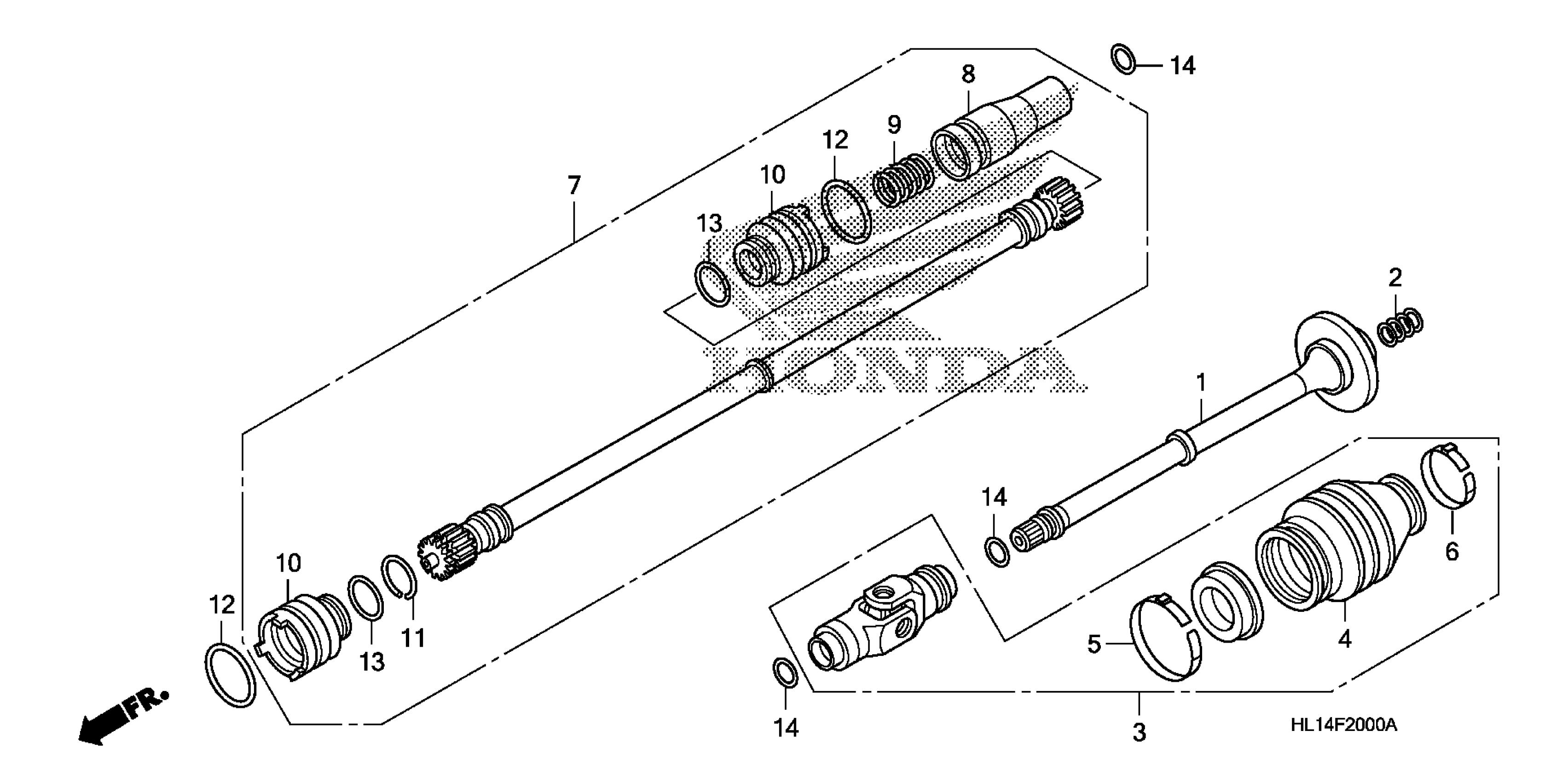

Honda MUV7002AC (13) BIG RED, MEX, VIN# 3H1VE011-DD400001 PROPELLER SHAFT Diagram

SHAFT, RR. PROPELLER

40210-HL1-A00

$64.70

SPRING, SHAFT

40215-HL1-A00

$4.34

JOINT ASSY., YOKE

40300-HP5-600

$86.84

BOOT, YOKE JOINT

40321-HP5-600

$16.38

BAND A, YOKE JOINT BOOT

40322-HN8-000

$6.19

BAND B, YOKE JOINT BOOT

40323-HN8-000

$5.07

SHAFT ASSY., FR. PROPELLER

40400-HL1-A00

$188.62

JOINT, FR. PROPELLER SHAFT

40402-HL1-A00

$59.39

SPRING, FR. SHAFT

40415-HL1-A00

$4.10

BOOT, PROPELLER SHAFT COVER

40420-HP5-600

$7.05

CLIP, NEEDLE THRUST BEARING (12MM)

91012-KF0-000

$2.97

BAND, BOOT (D27)

91302-HM7-A00

$7.93

BAND, BOOT (D20)

91303-HM7-A00

$7.93

O-RING (19.4X2.3)

91305-KE1-000

$1.81
