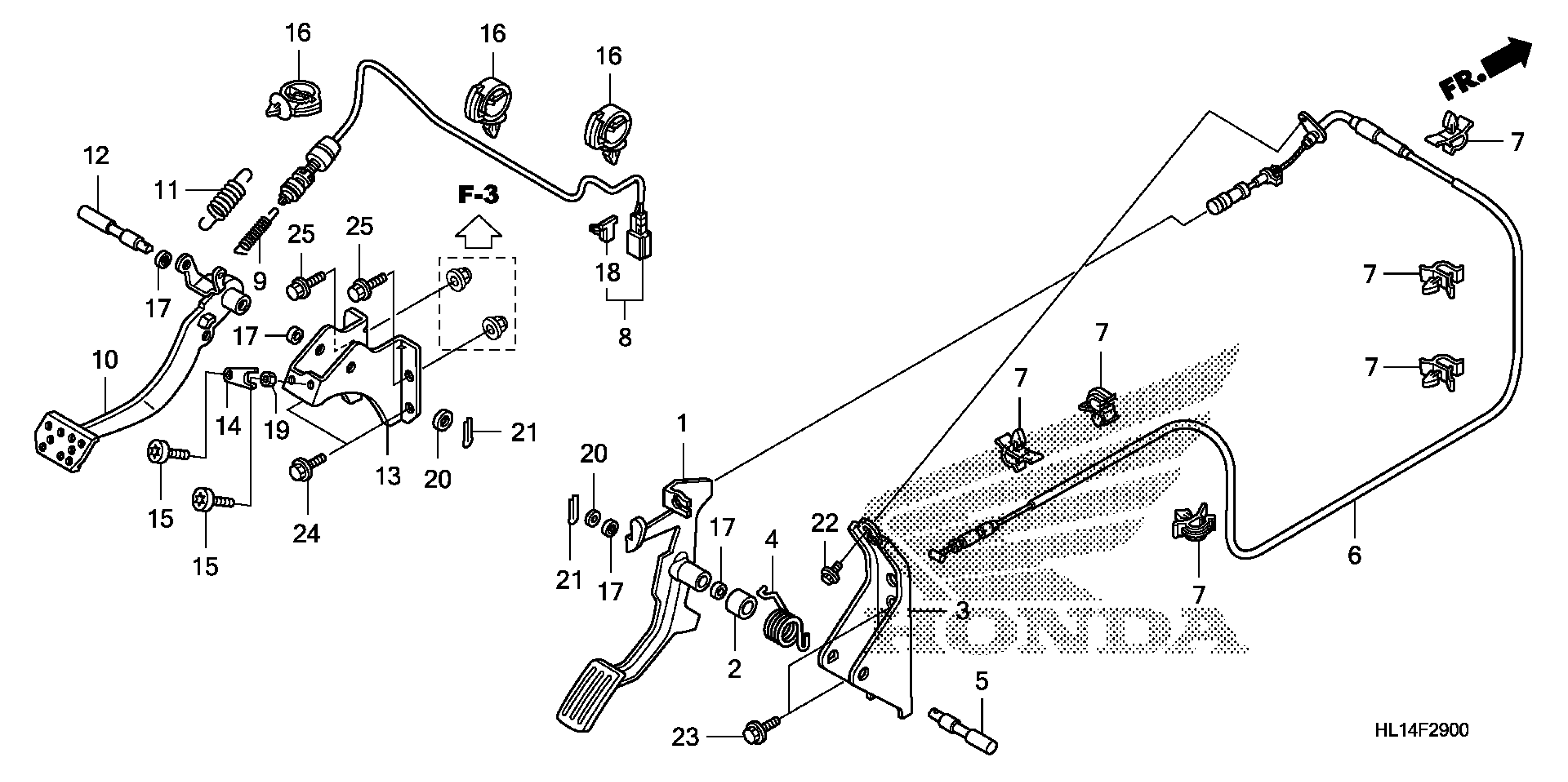

Honda MUV7002AC (13) BIG RED, MEX, VIN# 3H1VE011-DD400001 PEDAL Diagram

#

Description
Price

1

PEDAL, ACCELERATOR

17810-HL1-A00

$35.83

2

COLLAR, ACCELERATOR PEDAL

17811-HL1-A00

$3.01

3

STAY, ACCELERATOR PEDAL

17820-HL1-A00

$72.29

4

SPRING, ACCELERATOR PEDAL

17830-HL1-A00

$4.84

5

SHAFT, ACCELERATOR PIVOT

17840-HL1-A00

$10.42

6

CABLE, THROTTLE

17910-HL1-A00

$52.23

7

CLIP, WIRE HARNESS

32171-GJ1-003

$3.24

8

SWITCH ASSY., STOP

35350-HL1-A01

$47.10

9

SPRING, STOP SWITCH

35357-KR3-670

$4.76

10

PEDAL, BRAKE

46510-HL1-A00

$39.97

11

SPRING, BRAKE PEDAL

46514-HL1-A00

$8.94

12

SHAFT, BRAKE PIVOT

46550-HL1-A00

$8.32

13

STAY, BRAKE PEDAL

46560-HL1-A00

$72.17

14

PLATE, ADJUSTER NUT

46561-HL1-A00

$3.71

15

BOLT, FLANGE TORX (8X30)

90106-SJC-000

$1.55

16

CLIP, WIRE HARNESS

90681-763-A01

$7.86

17

OIL SEAL (10X16X4.5) This part replaces 91206-333-003.

91259-VM0-000

$3.50

17

OIL SEAL (10X16X4.5)

91259-VM0-000

$3.50

18

CLIP, CONNECTOR (RED)

91555-SM4-003

$4.58

19

NUT, HEX. (8MM)

94002-08000-0S

$1.19

19

NUT, HEX. (8MM) This part replaces 94002-08080-0S.

94002-08000-0S

$1.19

20

WASHER, PLAIN (10MM)

94102-10800

$2.80

21

PIN, SPLIT (3.0X18)

94201-30180

$0.94

22

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

23

BOLT, FLANGE (8X16)

95701-08016-00

$1.64

24

BOLT, FLANGE (8X20)

95701-08020-00

$1.70

25

BOLT, FLANGE (8X35)

95701-08035-00

$2.09
