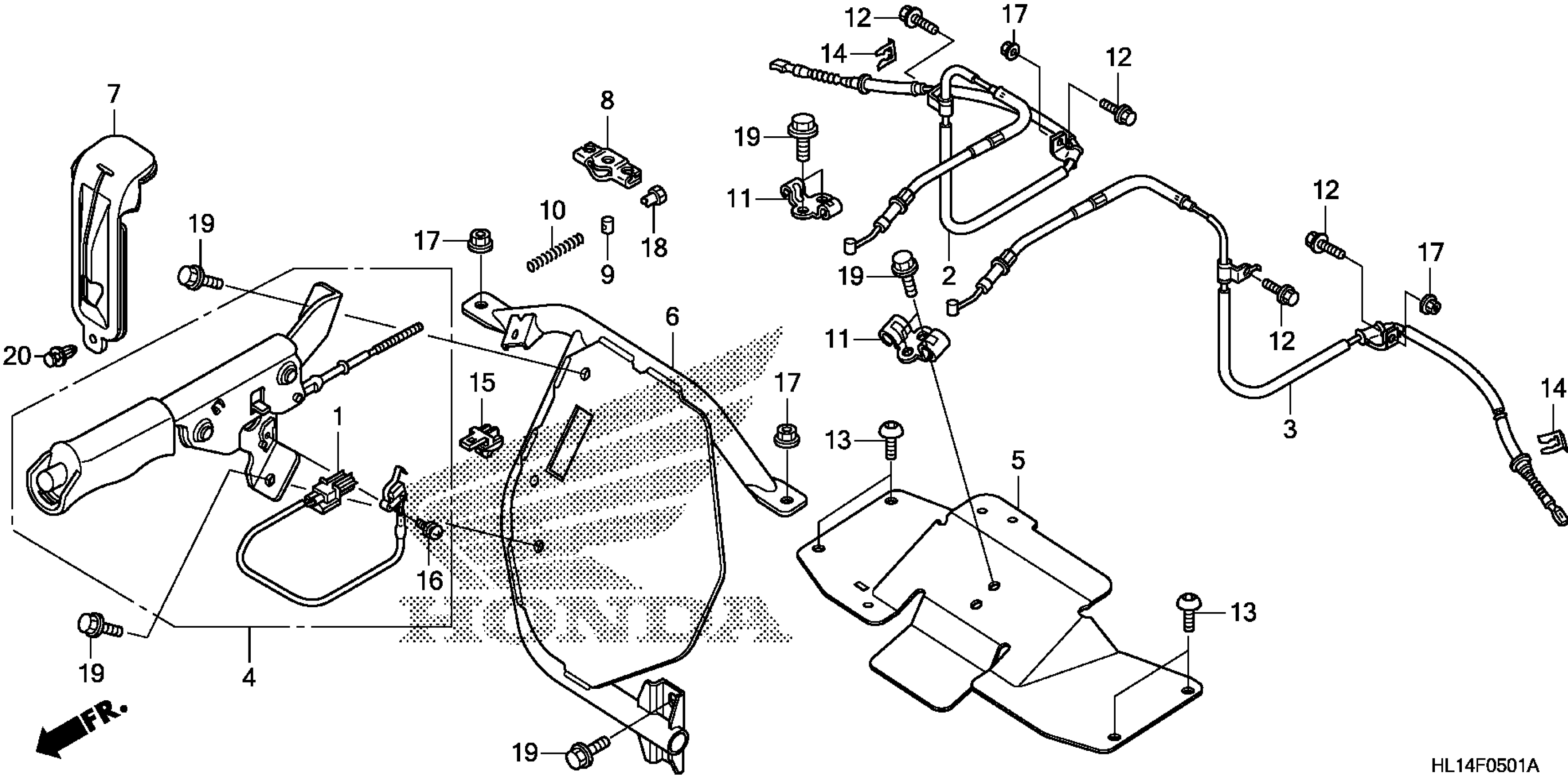

Honda MUV7002AC (13) BIG RED, MEX, VIN# 3H1VE011-DD400001 PARKING BRAKE (2) Diagram

SWITCH ASSY., PARKING

35370-HL1-A50

$32.68

CABLE, R. PARKING BRAKE

45460-HL1-A51

$37.44

CABLE, L. PARKING BRAKE

45470-HL1-A51

$32.91

LEVER ASSY., HAND BRAKE

47105-HL1-A50

$154.13

PLATE, PARKING BRAKE CABLE

47122-HL1-A50

$15.85

PLATE, HAND BRAKE

47150-HL1-A50

$85.12

RUBBER, HAND BRAKE

47160-HL1-A50

$3.78

EQUALIZER

47360-SB2-000

$10.78

PIN, EQUALIZER

47365-538-000

$8.01

SPRING, PARKING BRAKE ROD

47537-671-670

$3.47

BASE, WIRE GUIDE

47572-HL1-A50

$3.46

BOLT, FLANGE (8X16)

90123-KV0-000

$4.29

BOLT, SOCKET (8X16)

90128-MEJ-J00

$2.62

CLIP, BRAKE HOSE

90651-538-000

$6.46

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.52

SCREW-WASHER (3X10)

93892-03010-08

$0.76

NUT, FLANGE (8MM)

94050-08000

$0.87

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.50

BOLT, FLANGE (8X16)

95701-08016-00

$1.66

CLIP, SPLASH GUARD

90653-HC4-900

$0.54
