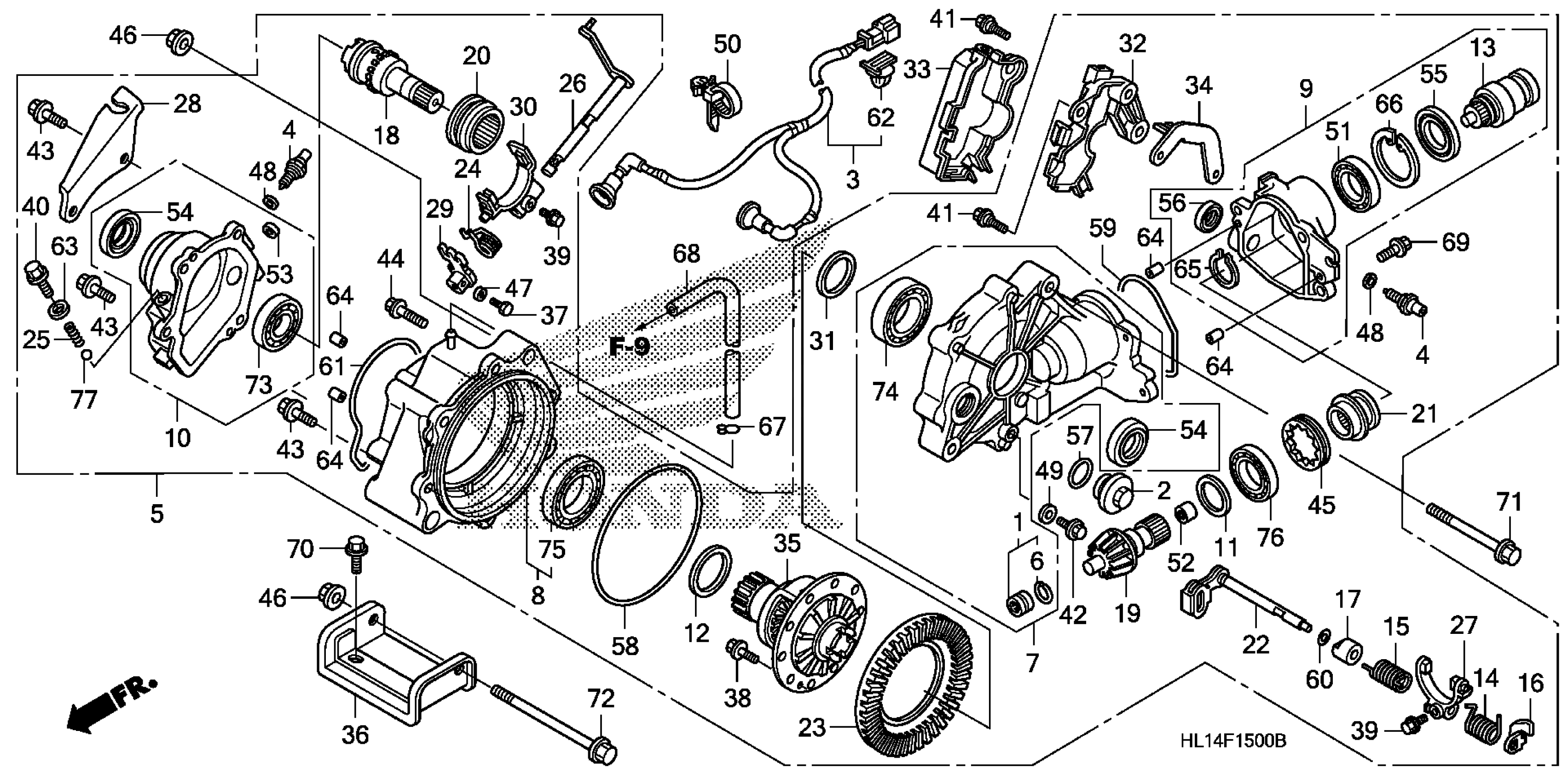

Honda MUV7002AC (13) BIG RED, MEX, VIN# 3H1VE011-DD400001 FRONT FINAL GEAR Diagram

BEARING SET, NEEDLE

06910-HN8-000

$28.02

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

CAP, VALVE ADJ.

12361-300-000

Unavailable

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

SUB-WIRE, SWITCH (4WD)

32101-HL1-A00

$9.90

SWITCH ASSY., NEUTRAL

35600-HN7-003

$19.61

GEAR ASSY., FR. FINAL

41400-HL1-A01

$1,580.48

RING, STOPPER

41405-HA7-670

$2.97

CASE SUB-ASSY., FR. FINAL GEAR

41411-HL1-A00

$427.49

COVER SUB-ASSY., FR. FINAL GEAR

41412-HL1-A00

$390.80

CASE SUB-ASSY., FR. CLUTCH

41413-HL1-A01

$301.72

COVER SUB-ASSY., R. FR. FINAL GEAR

41414-HL1-A00

$364.43

SHIM A, PINION GEAR (1.64)

41447-HM8-000

$7.99

SHIM B, PINION GEAR (1.70)

41448-HM8-000

$7.99

SHIM C, PINION GEAR (1.76)

41449-HM8-000

$7.99

SHIM D, PINION GEAR (1.82)

41451-HM8-000

$8.79

SHIM E, PINION GEAR (1.88)

41452-HM8-000

$7.99

SHIM F, PINION GEAR (1.94)

41453-HM8-000

$8.79

SHIM G, PINION GEAR (2.00)

41454-HM8-000

$8.79

SHIM H, PINION GEAR (2.06)

41455-HM8-000

$7.99

SHIM I, PINION GEAR (2.12)

41456-HM8-000

$8.79

SHIM J, PINION GEAR (2.18)

41457-HM8-000

$8.79

SHIM K, PINION GEAR (2.24)

41458-HN0-670

Unavailable

SHIM L, PINION GEAR (2.30)

41459-HN0-670

Unavailable

SHIM M, PINION GEAR (2.36)

41461-HN0-670

Unavailable

SHIM N, PINION GEAR (2.42)

41462-HN0-670

$4.13

SHIM O, PINION GEAR (2.48)

41463-HN0-670

Unavailable

SHIM A, RING GEAR (0.64)

41450-HL1-A00

$11.10

SHIM B, RING GEAR (0.70)

41451-HL1-A00

$11.10

SHIM C, RING GEAR (0.76)

41452-HL1-A00

$11.10

SHIM D, RING GEAR (0.82)

41453-HL1-A00

$11.10

SHIM E, RING GEAR (0.88)

41454-HL1-A00

$11.59

SHIM F, RING GEAR (0.94)

41455-HL1-A00

$11.59

SHIM G, RING GEAR (1.00)

41456-HL1-A00

$11.59

SHIM H, RING GEAR (1.06)

41457-HL1-A00

$11.59

SHIM I, RING GEAR (1.12)

41458-HL1-A00

$11.10

SHIM J, RING GEAR (1.18)

41459-HL1-A00

$11.10

SHIM K, RING GEAR (1.24)

41460-HL1-A00

$11.10

SHIM L, RING GEAR (1.30)

41461-HL1-A00

$11.10

SHIM M, RING GEAR (1.36)

41462-HL1-A00

$11.10

SHIM N, RING GEAR (1.42)

41463-HL1-A00

$11.10

SHIM O, RING GEAR (1.48)

41464-HL1-A00

$11.10

JOINT, FR. FINAL CLUTCH

41502-HL1-A01

$96.31

SPRING, FR. FINAL CLUTCH

41503-HP5-600

$3.03

SPRING, FR. FINAL CLUTCH LOCK

41504-HP5-600

$5.98

STOPPER, FR. FINAL CLUTCH

41505-HP5-600

$1.49

COLLAR, FR. FINAL CLUTCH

41506-HL1-A00

$24.36

SHAFT, R. SIDE HALF

41511-HL1-A00

$100.51

GEAR, FR. PINION (13T)

41521-HL1-A00

$133.97

SLEEVE, DIFFERENTIAL LOCK

41521-PL9-000

$53.90

SLEEVE, FR. FINAL CLUTCH

41527-HP5-600

$40.75

SHAFT, FR. FINAL CLUTCH

41530-HL1-A00

$49.84

GEAR, FR. RING (45T)

41531-HL1-A00

$111.72

SPRING, DIFFERENTIAL LOCK FORK

41534-HL1-A00

$4.43

SPRING, SELECTOR STOPPER

41535-HL1-A00

$2.97

SHAFT, DIFFERENTIAL LOCK

41540-HL1-A00

$51.85

FORK, FR. FINAL CLUTCH

41550-HP5-600

$77.33

STAY, DIFFERENTIAL LOCK CABLE

41553-HL1-A00

$4.95

STOPPER, DIFFERENTIAL LOCK SHAFT

41560-HL1-A00

$53.05

FORK, DIFFERENTIAL LOCK

41570-HL1-A00

$90.49

SHIM A, RING GEAR (0.64)

41580-HL1-A00

$10.23

SHIM B, RING GEAR (0.70)

41581-HL1-A00

$10.23

SHIM C, RING GEAR (0.76)

41582-HL1-A00

$10.72

SHIM D, RING GEAR (0.82)

41583-HL1-A00

$10.23

SHIM E, RING GEAR (0.88)

41584-HL1-A00

$10.23

SHIM F, RING GEAR (0.94)

41585-HL1-A00

$10.23

SHIM G, RING GEAR (1.00)

41586-HL1-A00

$10.23

SHIM H, RING GEAR (1.06)

41587-HL1-A00

$10.23

SHIM I, RING GEAR (1.12)

41588-HL1-A00

$10.72

SHIM J, RING GEAR (1.18)

41589-HL1-A00

$10.72

SHIM K, RING GEAR (1.24)

41590-HL1-A00

$10.72

SHIM L, RING GEAR (1.30)

41591-HL1-A00

$10.72

SHIM M, RING GEAR (1.36)

41592-HL1-A00

$10.72

SHIM N, RING GEAR (1.42)

41593-HL1-A00

$10.72

SHIM O, RING GEAR (1.48)

41594-HL1-A00

$10.23

SHIM P, RING GEAR (1.54)

41595-HL1-A00

$11.10

SHIM Q, RING GEAR (1.60)

41596-HL1-A00

$11.10

CASE, CLUTCH ARM

41711-HL1-A00

$8.74

COVER, CLUTCH ARM

41712-HL1-A00

$7.59

STAY, CLUTCH CABLE

41715-HL1-A00

$5.30

CASE, FR. DIFFERENTIAL

42420-HL1-A00

$289.59

BRACKET, FR. FINAL CASE

50350-HL1-A00

$21.66

BOLT, SPECIAL (6X16)

90029-PH8-000

$6.33

BOLT, UBS (8X17)

90101-HN2-680

$4.30

BOLT, SPECIAL (6MM)

90101-HP5-600

$4.16

SCREW, FIFTH & REVERSE SET BALL

90102-HL1-A00

$16.39

BOLT, FR. FENDER FIXING

90106-MM9-000

$2.97

BOLT, SEALING (8MM)

90109-371-000

$2.58

BOLT, FLANGE (8X27)

90133-HP5-600

$2.67

BOLT, FLANGE (10X35)

90134-HP5-600

$3.51

NUT, LOCK (64MM)

90242-MB0-000

$32.52

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.21

WASHER, SEALING (7MM)

90442-GF6-010

$1.49

WASHER, NEUTRAL SWITCH

90443-KR0-000

$1.49

GASKET (8MM)

90471-580-000

$2.92

STRAP, CABLE (105MM) (BLACK)

90672-SB2-003

$5.47

BEARING, RADIAL BALL (32X58X13)

91055-HP5-601

$13.91

BEARING, NEEDLE (12X18X12)

91056-HP5-601

$6.05

OIL SEAL (12X19X5) (ARAI)

91206-KV3-003

$4.20

OIL SEAL (35X56X8)

91252-HL1-A01

$10.15

OIL SEAL (42X58X8)

91252-HP5-602

$23.10

OIL SEAL (22X30X5)

91253-HL1-A01

$5.80

O-RING (30.8MM)

91302-001-020

$3.75

O-RING (156.5X1.9)

91351-HL1-A01

$6.54

GASKET, FR. FINAL CLUTCH COVER

91351-HP5-601

$3.62

O-RING (8.5X1.5)

91352-GAZ-930

$2.33

GASKET, R. SIDE COVER

91355-HL1-A01

$5.73

CLIP, CONNECTOR (RED)

91555-SM4-003

$4.80

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (6X10)

94301-06100

$2.25

CIRCLIP, OUTER (32MM)

94510-32000

$1.77

CIRCLIP, INNER (58MM)

94520-58000

$3.13

CLIP, TUBE (C6.5)

95002-35000

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X840)

95005-35001-30M

$8.63

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

BOLT, FLANGE (10X20)

95701-10020-00

$2.23

BOLT, FLANGE (12X115)

95801-12115-08

$5.59

BOLT, FLANGE (12X150)

95801-12150-00

$4.03

BEARING, RADIAL BALL (6007)

96100-60073-00

$25.05

BEARING, RADIAL BALL (6008)

96100-60083-00

$19.57

BEARING, RADIAL BALL (6009)

96100-60093-00

$19.60

BEARING, RADIAL BALL (6206)

96100-62060-00

$23.53

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
