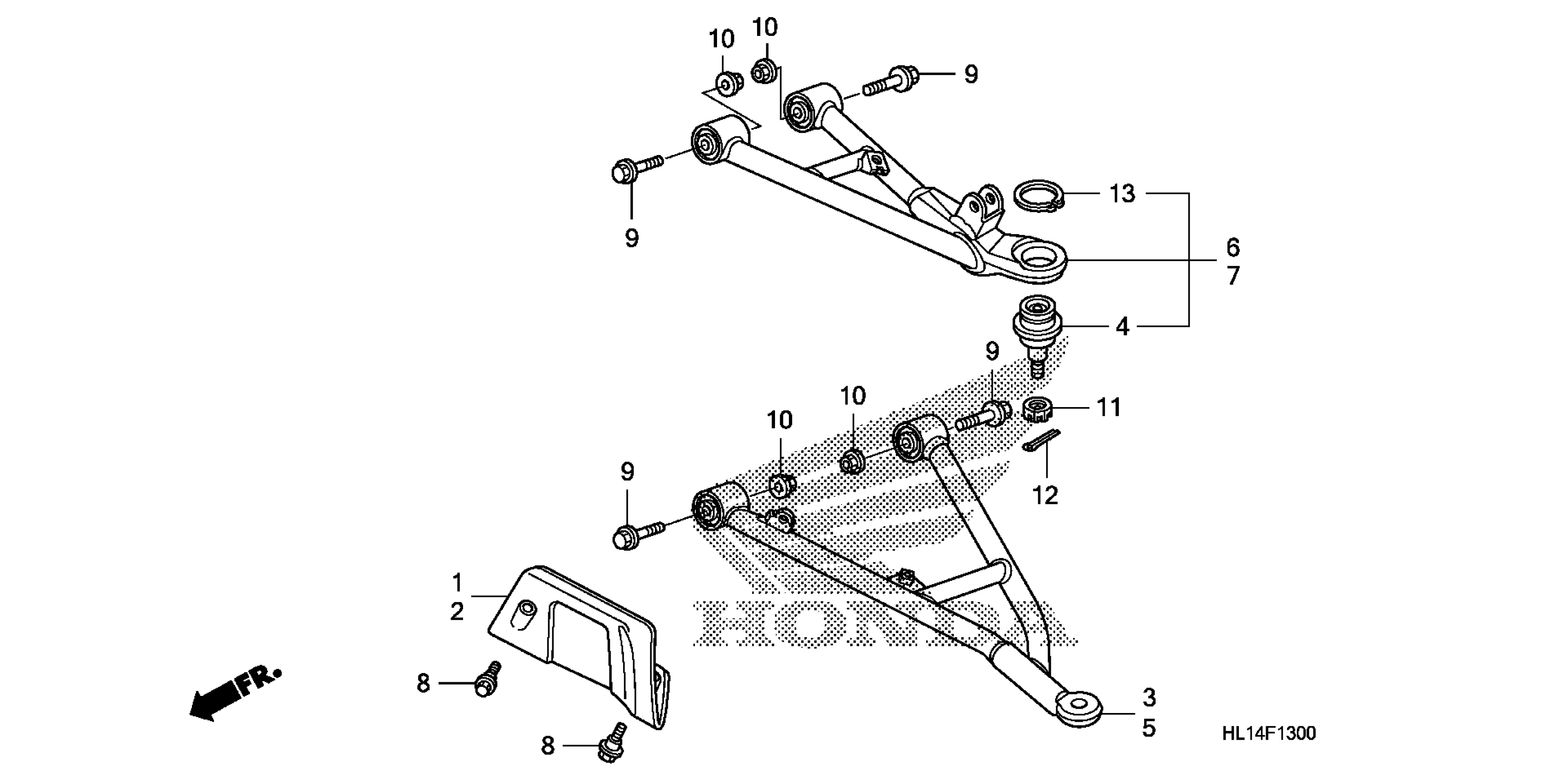

Honda MUV7002AC (13) BIG RED, MEX, VIN# 3H1VE011-DD400001 FRONT ARM Diagram

GUARD, R. FR.

51315-HL1-A00

$10.43

GUARD, L. FR.

51316-HL1-A00

$10.91

ARM ASSY., R. FR. (LOWER)

51350-HL1-A00

$274.38

JOINT A, ARM BALL

51355-HL1-A01

$62.12

ARM ASSY., L. FR. (LOWER)

51360-HL1-A00

$292.49

ARM ASSY., R. FR. (UPPER)

51370-HL1-A00

$467.53

ARM ASSY., L. FR. (UPPER)

51380-HL1-A00

$369.24

BOLT, FLANGE (6MM)

90111-KT1-780

$13.35

BOLT, FLANGE (12X70)

90122-HL1-A00

$4.05

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.01

NUT, CASTLE (12MM)

90363-SF1-000

$8.72

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$0.96

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.96

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$0.96

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.96

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.96

PIN, SPLIT (3.0X45)

94201-30450

$0.96

CIRCLIP (OUTER) (38MM)

94514-38000

Unavailable
