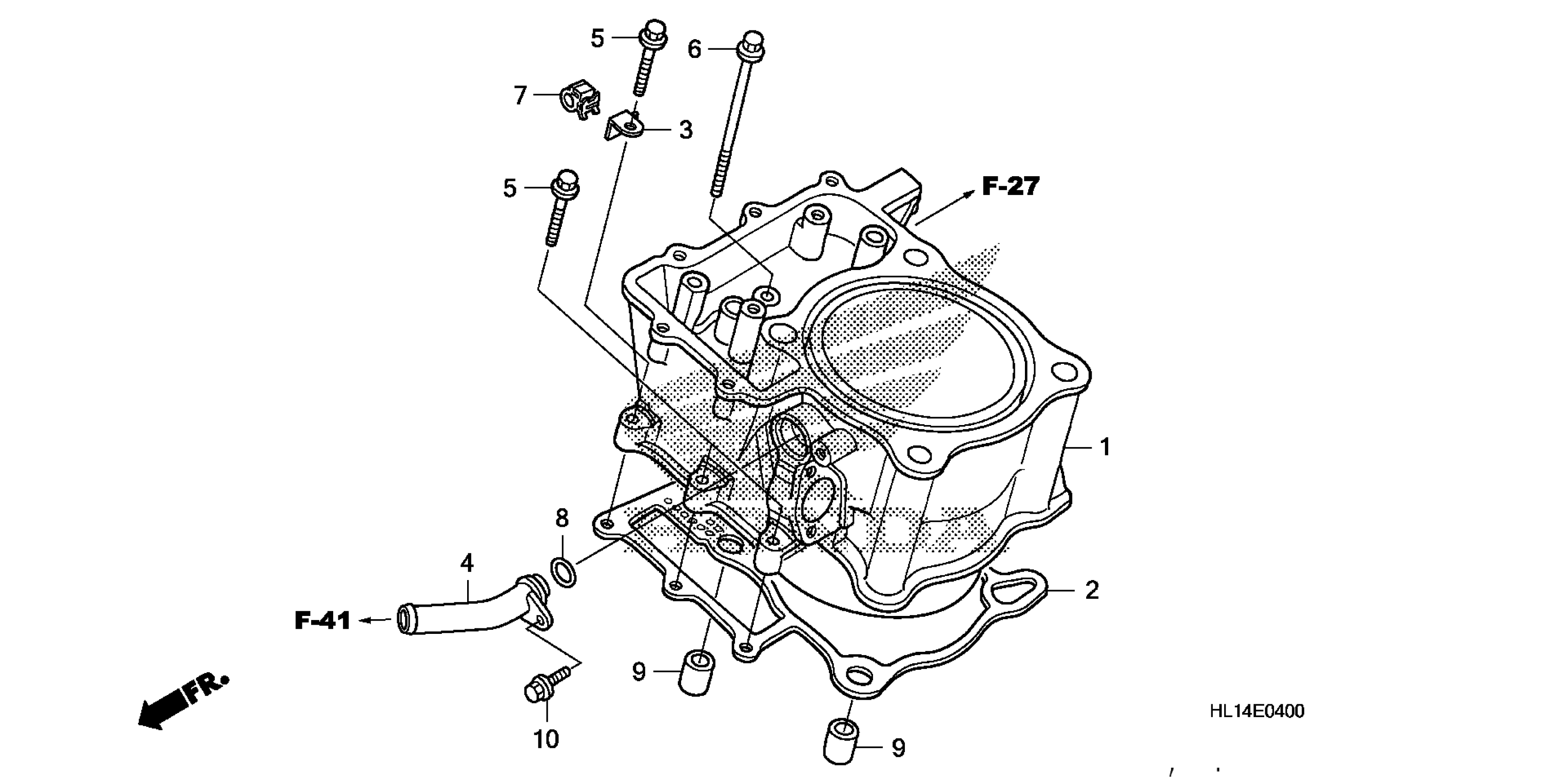

Honda MUV7002AC (13) BIG RED, MEX, VIN# 3H1VE011-DD400001 CYLINDER Diagram

#

Description
Price

1

CYLINDER

12100-HN8-A60

$405.98

2

GASKET, CYLINDER

12191-HN8-000

$20.67

3

PLATE, CABLE

16230-HN8-000

$2.26

4

JOINT, WATER

19523-HL1-A00

$20.07

5

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.33

6

BOLT, FLANGE (6X85) (NSHF)

90004-GHB-800

$2.72

7

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

8

O-RING (17.4X2.9)

91304-HN8-003

$2.15

9

PIN A, DOWEL (12X16)

94301-12160

$2.27

10

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
