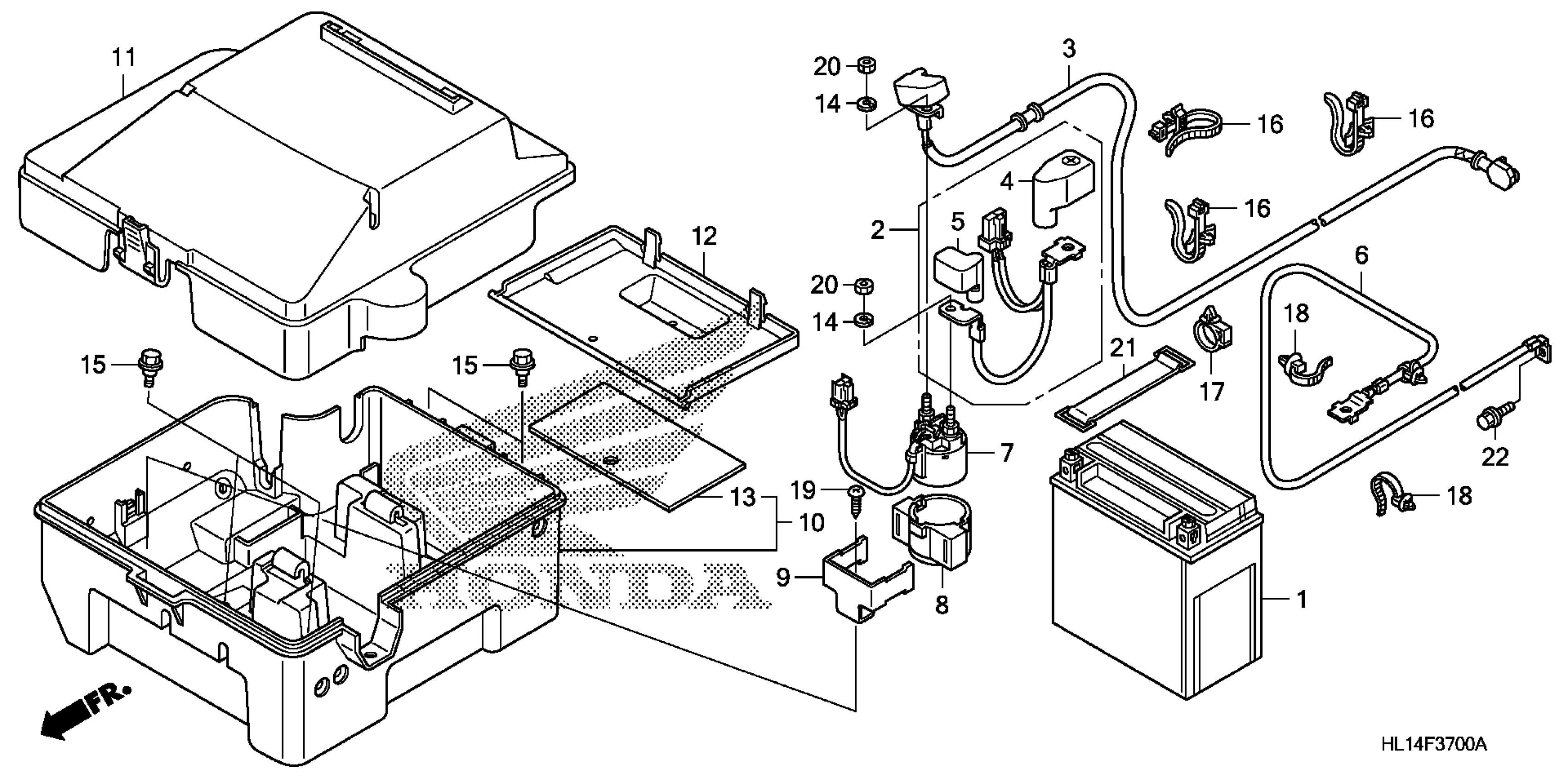

Honda MUV7002AC (13) BIG RED, MEX, VIN# 3H1VE011-DD400001 BATTERY Diagram

#

Description
Price

1

BATTERY (YTX14-BS) (YUASA) (MSDS) This part replaces 31500-HC4-726.

31500-HC4-726AH

Unavailable

1

BATTERY (YTX14-BS) (YUASA) (MSDS)

31500-HC4-726AH

Unavailable

2

CABLE, RELAY BATTERY

32401-HL1-A20

$15.08

3

CABLE, STARTER MOTOR

32405-HL1-A20

Unavailable

4

COVER, BATTERY TERMINAL

32414-MW0-000

$3.59

5

COVER, MAGNETIC SWITCH TERMINAL

32416-HN5-670

$5.01

6

CABLE, BATTERY GROUND

32601-HL1-A20

$21.56

7

SWITCH ASSY., STARTER MAGNETIC

35850-HL1-A01

$92.54

8

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

9

STAY, STARTER MAGNETIC

50326-HC4-000

$8.61

10

BOX, BATTERY

50400-HL1-A00

$20.59

11

COVER, BATTERY BOX

50500-HL1-A00

$26.84

12

BOX, OWNER'S MANUAL

77110-HL1-A00

$18.08

13

RUBBER, BATTERY MOUNTING

80102-HP0-A00

$8.51

14

WASHER, SPRING (6MM)

90052-ZA0-800

$1.49

15

BOLT, FLANGE (6MM)

90111-162-000

$2.89

16

BAND, WIRE HARNESS (150MM) (NATURAL)

90649-SC2-003

$5.81

17

CLAMP, HARNESS

90652-HC4-003

$5.95

18

STRAP, CABLE (105MM) (BLACK)

90672-SB2-003

$5.47

19

SCREW, TAPPING (5X12)

93903-25220

$1.49

20

NUT, HEX. (6MM)

94002-06390-0S

$1.49

21

BAND F, BATTERY (155MM)

95012-17001

$7.23

22

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
