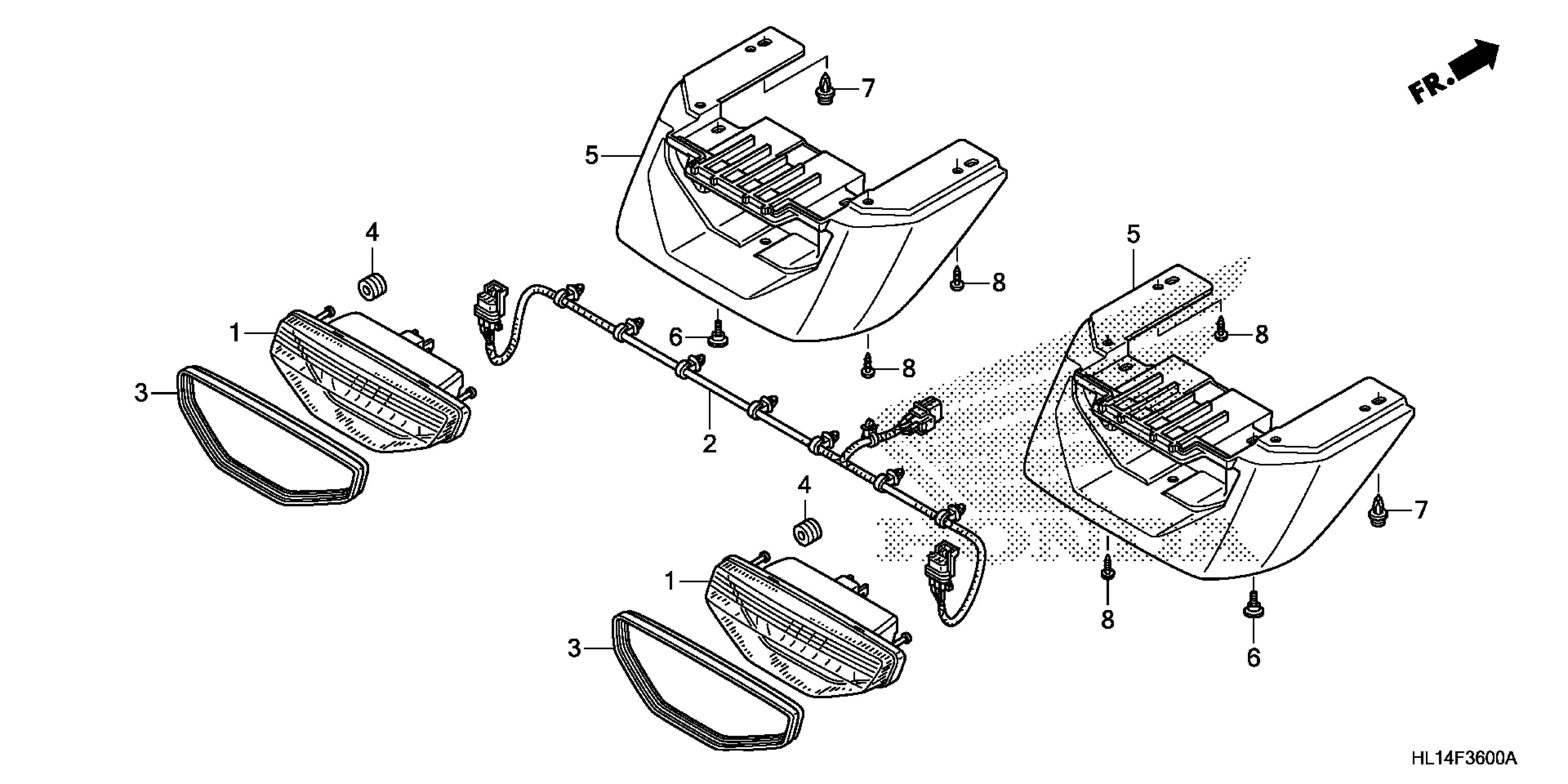

Honda MUV7002A (12) BIG RED, MEX, VIN# 3H1VE011-CD300001 TO 3H1VE011-CD399999 TAILLIGHT Diagram

#

Description

Price

1

TAILLIGHT ASSY., & STOP

33700-HN1-A71

$47.65

2

SUB-WIRE, TAILLIGHT & STOP

33750-HL1-A00

$34.87

3

RUBBER, TAILLIGHT

80215-HC4-000

$8.76

4

RUBBER, TAILLIGHT MOUNTING

80219-HC4-000

$2.90

5

COVER, TAILLIGHT NH1 (BLACK)

81555-HL1-A00ZA

$13.58

6

SCREW, SPLASH GUARD

90103-HC4-770

$2.03

7

CLIP, SPLASH GUARD

90653-HC4-900

$0.54

8

SCREW, TAPPING (5X16)

93903-25310

$0.59
