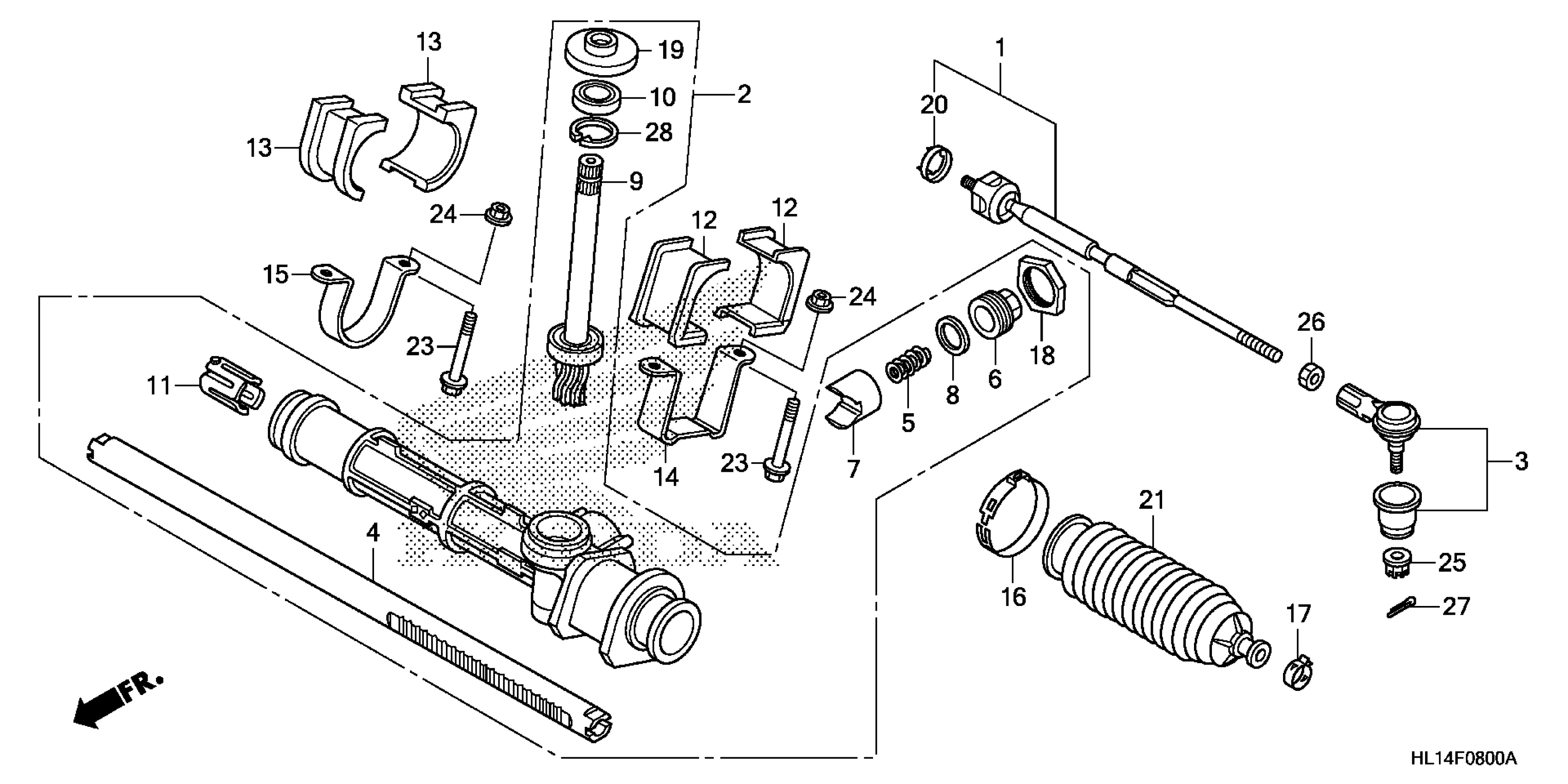

Honda MUV7002A (12) BIG RED, MEX, VIN# 3H1VE011-CD300001 TO 3H1VE011-CD399999 STEERING GEAR BOX + TIE ROD Diagram

#

Description
Price

1

END SET, TIE ROD

53010-HL1-A01

$32.11

2

BOX, STEERING GEAR

53040-HL1-A01

$401.25

3

END, TIE ROD

53157-HL1-A01

$36.64

4

RACK, STEERING

53402-HL1-A01

$90.01

5

SPRING, RACK GUIDE PRESSURE

53413-SH3-003

$5.94

6

SCREW, RACK GUIDE

53414-679-013

$28.49

7

GUIDE, STEERING RACK

53416-S3A-J01

$13.03

8

WASHER, DISK

53418-SC2-003

$7.78

9

PINION, STEERING

53421-HL1-A01

$43.41

10

DUST SEAL, STEERING PINION (ARAI)

53426-671-003

$9.54

11

BUSH, RACK END

53430-SR3-000

$16.99

12

COLLAR A, STEERING RACK

53435-HL1-A00

$9.96

13

COLLAR B, STEERING RACK

53436-HL1-A00

$13.02

14

BRACKET A, STEERING RACK

53437-HL1-A00

$5.80

15

BRACKET B, STEERING RACK

53438-HL1-A00

$5.81

16

BAND, BELLOWS

53449-S3A-J01

$4.81

17

BAND, BELLOWS

53449-S3A-003

$4.13

18

NUT, LOCK This part replaces 53458-SE0-003.

53458-S01-A51

Unavailable

18

NUT, LOCK

53458-S01-A51

Unavailable

19

COVER, PINION DUST

53502-S3A-J01

$6.29

20

WASHER, TIE ROD LOCK

53536-SR3-000

$5.65

21

DUST SEAL, TIE ROD

53537-S3A-003

$12.44

22

BOOT, TIE ROD END

53546-SZ3-003

$21.52

23

BOLT, FLANGE (10X70)

90128-GC5-000

$13.04

24

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

25

NUT, CASTLE (12MM)

90363-SF1-000

$8.50

26

NUT, HEX. (14MM)

94001-14280-0S

$1.83

27

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$0.94

27

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

27

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$0.94

27

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

27

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

27

PIN, SPLIT (3.0X45)

94201-30450

$0.94

28

CIRCLIP (INNER) (35MM)

94520-35000

$1.77
