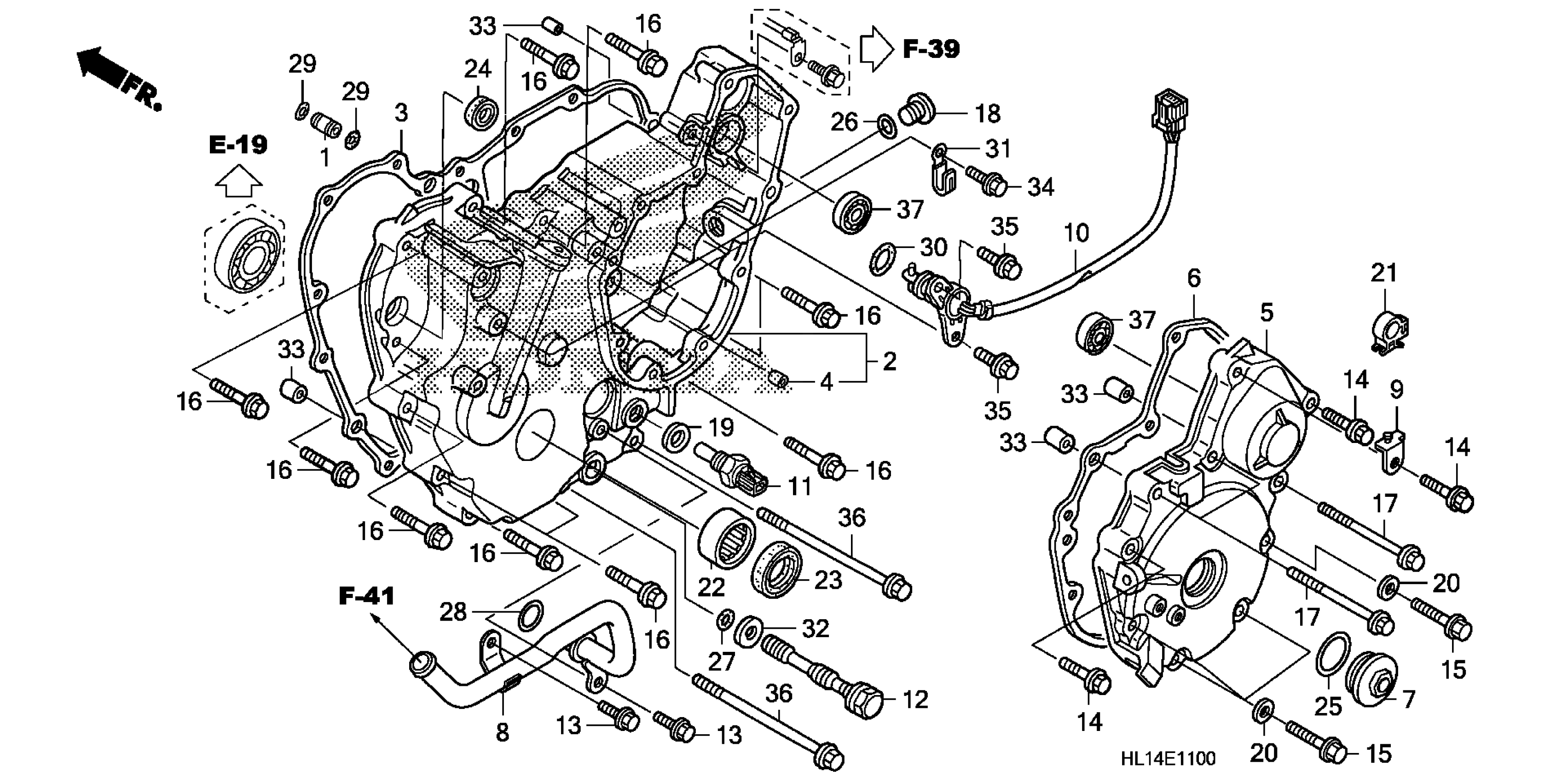

Honda MUV7002A (12) BIG RED, MEX, VIN# 3H1VE011-CD300001 TO 3H1VE011-CD399999 REAR CRANKCASE COVER Diagram

PIN, OIL GUIDE (8MM)

11145-HN8-010

$8.20

COVER, RR.

11340-HN8-A60

$198.96

GASKET, RR. COVER

11345-HN8-000

$19.92

ORIFICE (1.0MM)

11349-HN8-300

$3.88

COVER, ALTERNATOR

11350-HL1-A00

Unavailable

GASKET, ALTERNATOR COVER

11396-HN8-A60

$15.52

CAP, TAPPET ADJUSTING HOLE This part replaces 12361-KK0-000.

12361-HP5-600

$16.62

PIPE, OIL FILLER

15660-HL1-A00

$63.67

PLATE, CABLE

16230-HN8-000

$2.06

SWITCH ASSY., CHANGE

35759-HL1-A01

$96.91

SENSOR ASSY., THERMOSTAT OIL (PANASONIC)

37750-KPH-701

$45.22

BOLT, DRAIN PLUG (12MM)

90002-HN8-000

$7.43

BOLT, FLANGE (6X14) (NSHF)

90004-GHB-620

$3.18

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.10

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.59

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$3.79

BOLT, FLANGE (6X90) (NSHF)

90004-GHB-810

$5.15

CAP (14MM)

90084-KY2-000

$14.34

WASHER, SEALING (10MM)

90443-MB0-000

$2.80

WASHER A, SEALING (6MM)

90443-035-000

Unavailable

CLIP, CABLE (10MM)

90690-GHB-641

$1.99

BEARING, NEEDLE (25X37X17)

91021-HN8-003

$13.91

OIL SEAL (25X35X5)

91203-KCY-671

$6.63

OIL SEAL (13X22X5) (ARAI)

91204-KE8-003

$2.90

O-RING (35.5X3) (NOK)

91301-428-003

$2.01

O-RING (13.8X2.5)

91303-377-000

$3.18

O-RING (9X1.8)

91305-GE1-920

$1.64

O-RING (17X3.6)

91305-HN8-003

$2.14

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.80

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.03

O-RING (17.0X2.5) (ARAI) This part replaces 91333-567-010.

91333-KE5-003

$2.03

CLIP (2X70)

91413-679-000

$8.30

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

PIN, DOWEL (8X14)

94301-08140

$2.04

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

BOLT, FLANGE (8X140)

95701-08140-00

$2.58

BEARING, RADIAL BALL (6000)

96100-60000-00

$7.56
