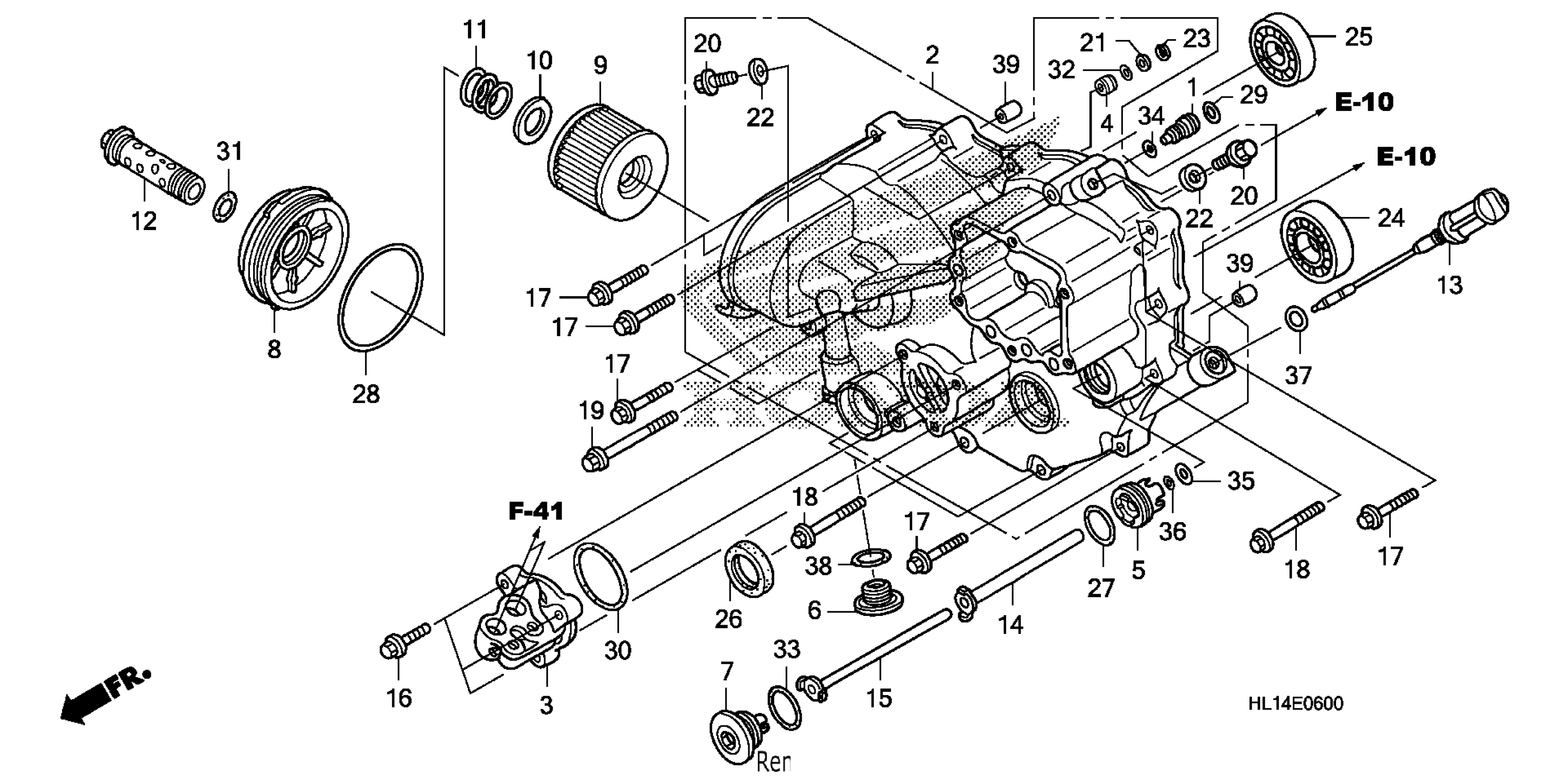

Honda MUV7002A (12) BIG RED, MEX, VIN# 3H1VE011-CD300001 TO 3H1VE011-CD399999 FRONT CRANKCASE COVER Diagram

ORIFICE, MAIN

11140-HN8-000

$10.43

COVER ASSY., FR.

11300-HN8-010

$428.10

JOINT, OIL HOSE

11332-HN8-000

$27.35

COLLAR, FR. COVER

11333-HN8-000

$3.75

COLLAR, OIL FEED PIPE SETTING

11335-HN8-000

$4.28

BOLT, OIL PASSAGE

11336-HN8-000

$4.26

BOLT, OIL FEED PIPE SETTING

11337-HN8-000

$5.24

COVER, OIL FILTER

15411-HN8-010

$30.04

ELEMENT, OIL FILTER

15412-KEA-003

$8.61

SEAT, OIL FILTER SPRING

15414-300-000

$3.71

SPRING, FILTER ELEMENT SETTING

15415-413-000

$3.31

BOLT, OIL FILTER CENTER

15420-HN8-000

$33.90

DIPSTICK, OIL

15650-HN8-000

$12.77

PIPE B, FEED

22715-HN8-000

$21.49

PIPE C, FEED

22725-HN8-000

$23.12

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.80

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$3.89

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.05

BOLT, FLANGE (6X65) (NSHF)

90004-GHB-760

$5.32

BOLT, SEALING (8MM)

90024-612-000

$4.54

WASHER, THRUST (22X15.5X0.5)

90409-HN8-000

$1.69

GASKET (8MM)

90471-580-000

$2.80

CIRCLIP (INNER) (22MM)

90601-HN8-000

$1.28

BEARING, RADIAL BALL (6005) (NTN)

91012-HN2-004

$14.08

BEARING, RADIAL BALL SPECIAL (6303)

91017-HN8-003

$13.28

OIL SEAL (25X35X5)

91203-KCY-671

$6.80

O-RING (19.20X1.90) (NOK)

91301-P7X-003

$2.95

O-RING (75X2.5)

91301-107-000

$4.66

O-RING (7X1.7)

91301-473-003

$2.51

O-RING (43X2.5)

91302-HN8-000

$2.74

O-RING (15X2.5)

91302-377-000

$5.07

O-RING (17.8X1.9)

91303-HN8-003

$1.72

O-RING (27X2) (ARAI)

91305-KF0-003

$2.80

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.80

O-RING (8.5X1.9) (NOK) This part replaces 91314-PC9-003.

91314-PC9-004

$3.08

O-RING (8.5X1.9) (NOK)

91314-PC9-004

$3.08

O-RING (6X1.5) (N0K)

91315-PC9-004

$1.63

O-RING (8.4X2.4)

91316-MJ8-003

$2.41

O-RING (22.1X2)

91305-679-003

$4.32

O-RING (22.1X2) This part replaces 91355-MB0-003.

91305-679-003

$4.32

PIN, DOWEL (8X14)

94301-08140

$2.62
