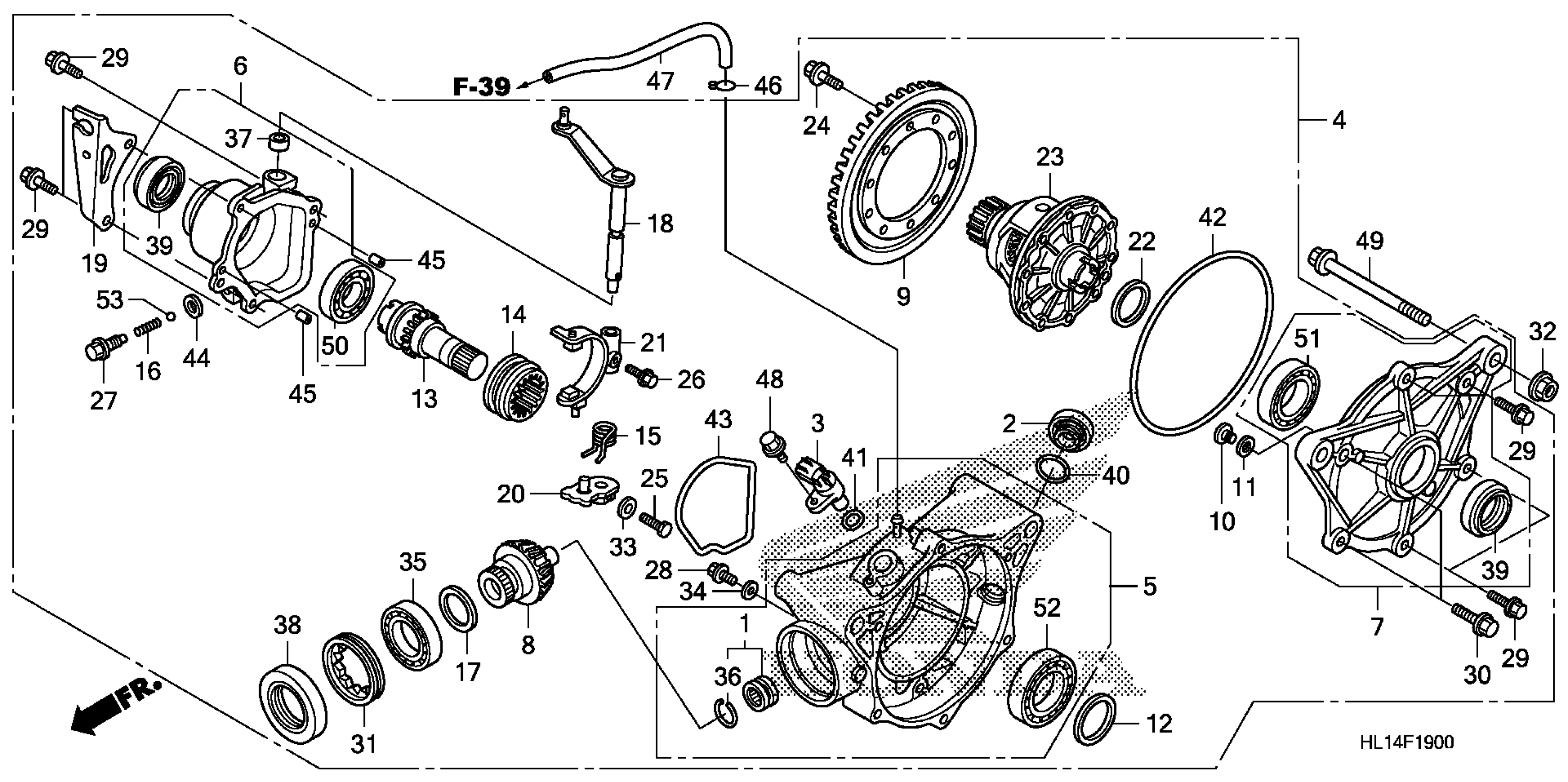

Honda MUV7002A (12) BIG RED, MEX, VIN# 3H1VE011-CD300001 TO 3H1VE011-CD399999 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06911-HN8-000

$27.48

2

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

2

CAP, VALVE ADJ.

12361-300-000

Unavailable

2

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

3

SENSOR ASSY., SPEED (TDK-EPC) This part replaces 37700-HP5-601.

37700-KZR-601

$45.37

4

GEAR ASSY., RR. FINAL

41300-HL1-A00

$1,357.21

5

CASE SUB-ASSY., RR. FINAL GEAR

41311-HL1-A00

$720.62

6

COVER SUB-ASSY., R. RR. FINAL GEAR

41312-HL1-A00

$384.33

7

COVER SUB-ASSY., RR. FINAL GEAR

41332-HL1-A00

$225.00

8

GEAR, RR. PINION (13T/24T)

41421-HL1-A00

$136.02

9

GEAR, RR. RING (45T)

41431-HL1-A00

$238.74

10

PIN, RING GEAR STOPPER

41436-MB0-310

$31.90

11

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.45

11

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$5.14

12

SHIM A, RING GEAR (0.64)

41450-HL1-A00

$11.10

12

SHIM B, RING GEAR (0.70)

41451-HL1-A00

$11.10

12

SHIM C, RING GEAR (0.76)

41452-HL1-A00

$11.10

12

SHIM D, RING GEAR (0.82)

41453-HL1-A00

$11.10

12

SHIM E, RING GEAR (0.88)

41454-HL1-A00

$11.59

12

SHIM F, RING GEAR (0.94)

41455-HL1-A00

$11.59

12

SHIM G, RING GEAR (1.00)

41456-HL1-A00

$11.59

12

SHIM H, RING GEAR (1.06)

41457-HL1-A00

$11.59

12

SHIM I, RING GEAR (1.12)

41458-HL1-A00

$11.10

12

SHIM J, RING GEAR (1.18)

41459-HL1-A00

$11.10

12

SHIM K, RING GEAR (1.24)

41460-HL1-A00

$11.10

12

SHIM L, RING GEAR (1.30)

41461-HL1-A00

$11.10

12

SHIM M, RING GEAR (1.36)

41462-HL1-A00

$11.10

12

SHIM N, RING GEAR (1.42)

41463-HL1-A00

$11.10

12

SHIM O, RING GEAR (1.48)

41464-HL1-A00

$11.10

12

SHIM P, RING GEAR (1.54)

41465-HL1-A00

$11.77

12

SHIM Q, RING GEAR (1.60)

41466-HL1-A00

$11.77

13

SHAFT, R. SIDE HALF

41511-HL1-A00

$100.51

14

SLEEVE, DIFFERENTIAL LOCK

41521-PL9-000

$53.90

15

SPRING, DIFFERENTIAL LOCK FORK

41534-HL1-A00

$4.43

16

SPRING, SELECTOR STOPPER

41535-HL1-A00

$2.97

17

SPACER A, RING GEAR (1.26)

41540-HC4-000

$12.72

17

SPACER B, RING GEAR (1.32)

41541-HC4-000

$12.72

17

SPACER C, RING GEAR (1.38)

41542-HC4-000

$12.72

17

SPACER D, RING GEAR (1.44)

41543-HC4-000

$12.72

17

SPACER E, RING GEAR (1.50)

41544-HC4-000

$12.72

17

SPACER F, RING GEAR (1.56)

41545-HC4-000

$11.99

17

SPACER G, RING GEAR (1.62)

41546-HC4-000

$12.72

17

SPACER H, RING GEAR (1.68)

41547-HC4-000

$11.99

17

SPACER I, RING GEAR (1.74)

41548-HC4-000

$12.72

17

SPACER J, RING GEAR (1.80)

41549-HC4-000

$12.72

17

SPACER K, RING GEAR (1.86)

41550-HC4-000

$11.99

18

SHAFT, DIFFERENTIAL LOCK

41540-HL1-A00

$51.85

19

STAY, DIFFERENTIAL LOCK CABLE

41553-HL1-A00

$4.95

20

STOPPER, DIFFERENTIAL LOCK SHAFT

41560-HL1-A00

$53.05

21

FORK, DIFFERENTIAL LOCK

41570-HL1-A00

$90.49

22

SHIM A, RING GEAR (0.64)

41580-HL1-A00

$10.23

22

SHIM B, RING GEAR (0.70)

41581-HL1-A00

$10.23

22

SHIM C, RING GEAR (0.76)

41582-HL1-A00

$10.72

22

SHIM D, RING GEAR (0.82)

41583-HL1-A00

$10.23

22

SHIM E, RING GEAR (0.88)

41584-HL1-A00

$10.23

22

SHIM F, RING GEAR (0.94)

41585-HL1-A00

$10.23

22

SHIM G, RING GEAR (1.00)

41586-HL1-A00

$10.23

22

SHIM H, RING GEAR (1.06)

41587-HL1-A00

$10.23

22

SHIM I, RING GEAR (1.12)

41588-HL1-A00

$10.72

22

SHIM J, RING GEAR (1.18)

41589-HL1-A00

$10.72

22

SHIM K, RING GEAR (1.24)

41590-HL1-A00

$10.72

22

SHIM L, RING GEAR (1.30)

41591-HL1-A00

$10.72

22

SHIM M, RING GEAR (1.36)

41592-HL1-A00

$10.72

22

SHIM N, RING GEAR (1.42)

41593-HL1-A00

$10.72

22

SHIM O, RING GEAR (1.48)

41594-HL1-A00

$10.23

23

CASE, RR. DIFFERENTIAL

42320-HL1-A00

$293.97

24

BOLT, FLANGE (10MM)

90015-634-010

$9.46

25

BOLT, SPECIAL (6X16)

90029-PH8-000

$6.33

26

BOLT, SPECIAL (6MM)

90101-HP5-600

$4.16

27

SCREW, FIFTH & REVERSE SET BALL

90102-HL1-A00

$16.39

28

BOLT, SEALING (8MM)

90109-371-000

$2.58

29

BOLT, FLANGE (8X27)

90133-HP5-600

$2.67

30

BOLT, FLANGE (10X35)

90134-HP5-600

$3.51

31

NUT, LOCK (72MM)

90242-HL1-A00

$20.76

32

NUT, SELF-LOCK (12MM)

90305-HC4-000

$4.21

33

WASHER, SEALING (7MM)

90442-GF6-010

$1.49

34

GASKET (8MM)

90471-580-000

$2.92

35

BEARING, BALL (42X70X11) (NTN)

91001-PR9-003

$97.52

36

CLIP, NEEDLE THRUST BEARING (12MM)

91012-KF0-000

$2.97

37

OIL SEAL (12X19X5) (ARAI)

91206-KV3-003

$4.20

38

OIL SEAL (45X77X11)

91251-HL1-A01

$22.48

39

OIL SEAL (35X56X8)

91252-HL1-A01

$10.15

40

O-RING (30.8MM)

91302-001-020

$3.75

41

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

42

O-RING (182X1.9)

91352-HL1-A01

$6.79

43

GASKET, R. SIDE COVER

91355-HL1-A01

$5.73

44

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

45

PIN, DOWEL (6X10)

94301-06100

$2.25

46

CLIP, TUBE (C6.5)

95002-35000

$1.49

47

BULK HOSE, VACUUM (3.5X1000) (3.5X530)

95005-35001-30M

$8.63

48

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

49

BOLT, FLANGE (12X140)

95801-12140-00

Unavailable

50

BEARING, RADIAL BALL (6007)

96100-60073-00

$25.05

51

BEARING, RADIAL BALL (6008)

96100-60083-00

$19.57

52

BEARING, RADIAL BALL (6009)

96100-60093-00

$19.60

53

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
