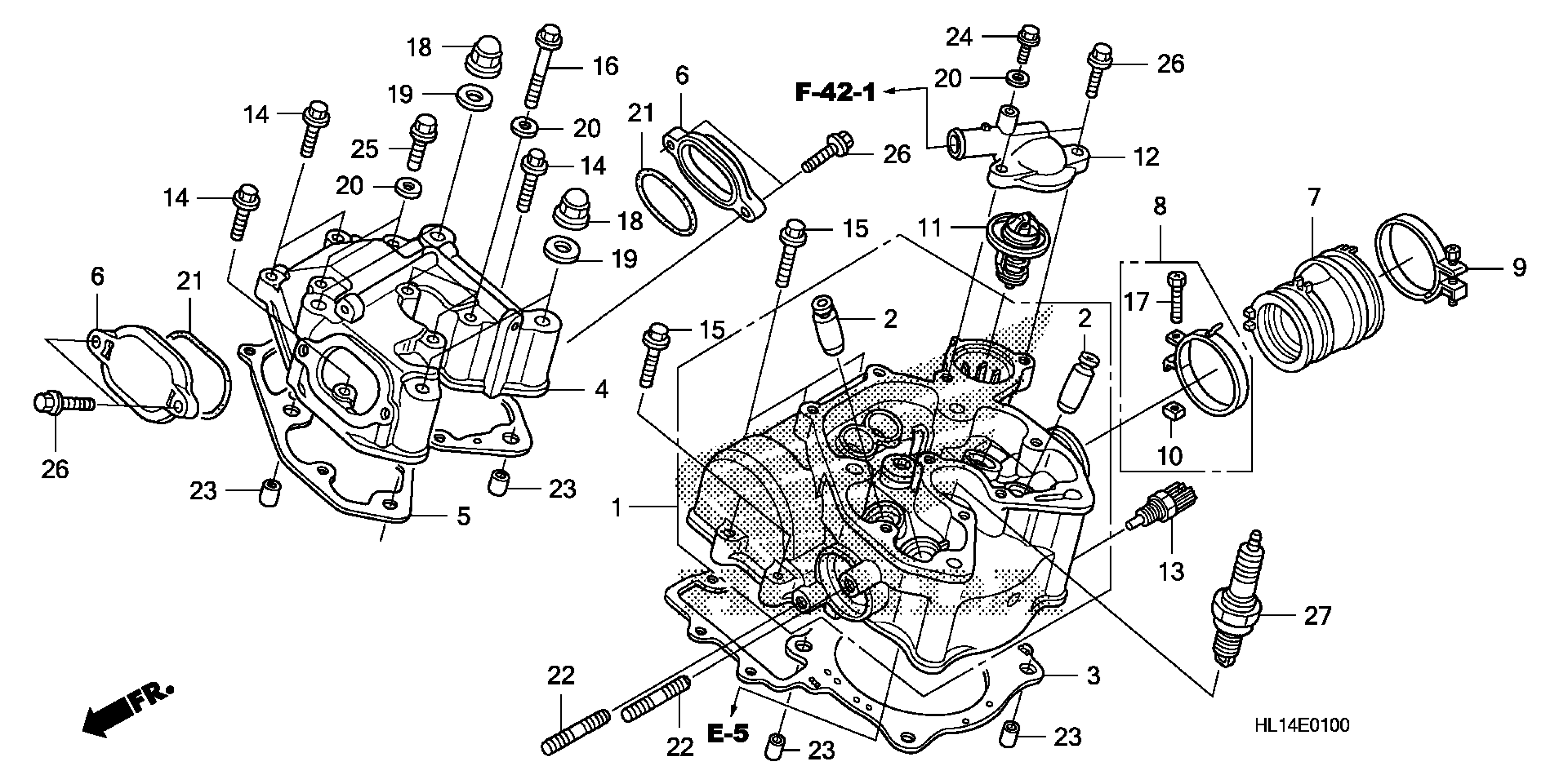

Honda MUV7002A (12) BIG RED, MEX, VIN# 3H1VE011-CD300001 TO 3H1VE011-CD399999 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-HN8-A60

$736.68

2

GUIDE, VALVE (OVER SIZE)

12204-HN2-305

$18.00

3

GASKET, CYLINDER HEAD

12251-HN8-A61

$44.19

4

COVER, CYLINDER HEAD

12310-HN8-000

$192.26

5

GASKET, CYLINDER HEAD COVER

12315-HN8-000

$15.54

6

COVER, TAPPET ADJUSTING HOLE

12351-HN2-010

$12.31

7

INSULATOR, THROTTLE BODY

16211-HN8-A60

$23.57

8

BAND, CARBURETOR INSULATOR

16219-HN8-000

$8.12

9

BAND, INSULATOR

16219-MBB-000

$10.91

10

NUT, SQUARE (5MM)

16222-MV4-300

$1.99

11

THERMOSTAT SET This part replaces 19300-HN8-003.

19300-HN8-305

$60.18

12

COVER, THERMOSTAT

19321-HL1-A00

$26.29

13

SENSOR ASSY., WATER TEMPERATURE This part replaces 37870-HN8-A60.

37870-HN8-A61

$33.68

13

SENSOR ASSY., WATER TEMPERATURE

37870-HN8-A61

$33.68

14

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.80

15

BOLT, FLANGE (6X28) (NSHF)

90004-GHB-680

$3.17

16

BOLT, FLANGE (6X65) (NSHF)

90004-GHB-760

$5.32

17

BOLT, RECESSED (5X28)

90023-MM5-000

$2.80

18

NUT, CAP (10MM)

90201-HA0-000

$6.15

18

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$6.15

19

WASHER, PLAIN (10MM)

90401-437-000

$2.59

20

WASHER, SEALING (6MM)

90441-706-000

$1.07

21

O-RING (57X2.5)

91308-500-000

$6.71

22

BOLT, STUD (8X25)

92900-08025-0B

$2.59

23

PIN A, DOWEL (12X16)

94301-12160

$2.80

24

BOLT, FLANGE (6X12)

95701-06012-08

$1.50

25

BOLT, FLANGE (6X20)

95701-06020-00

$1.63

26

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

27

SPARK PLUG (BKR5E-11) (NGK)

98079-5514E

$2.80

27

SPARK PLUG (K16PR-U11) (DENSO)

98079-5515E

$2.80
