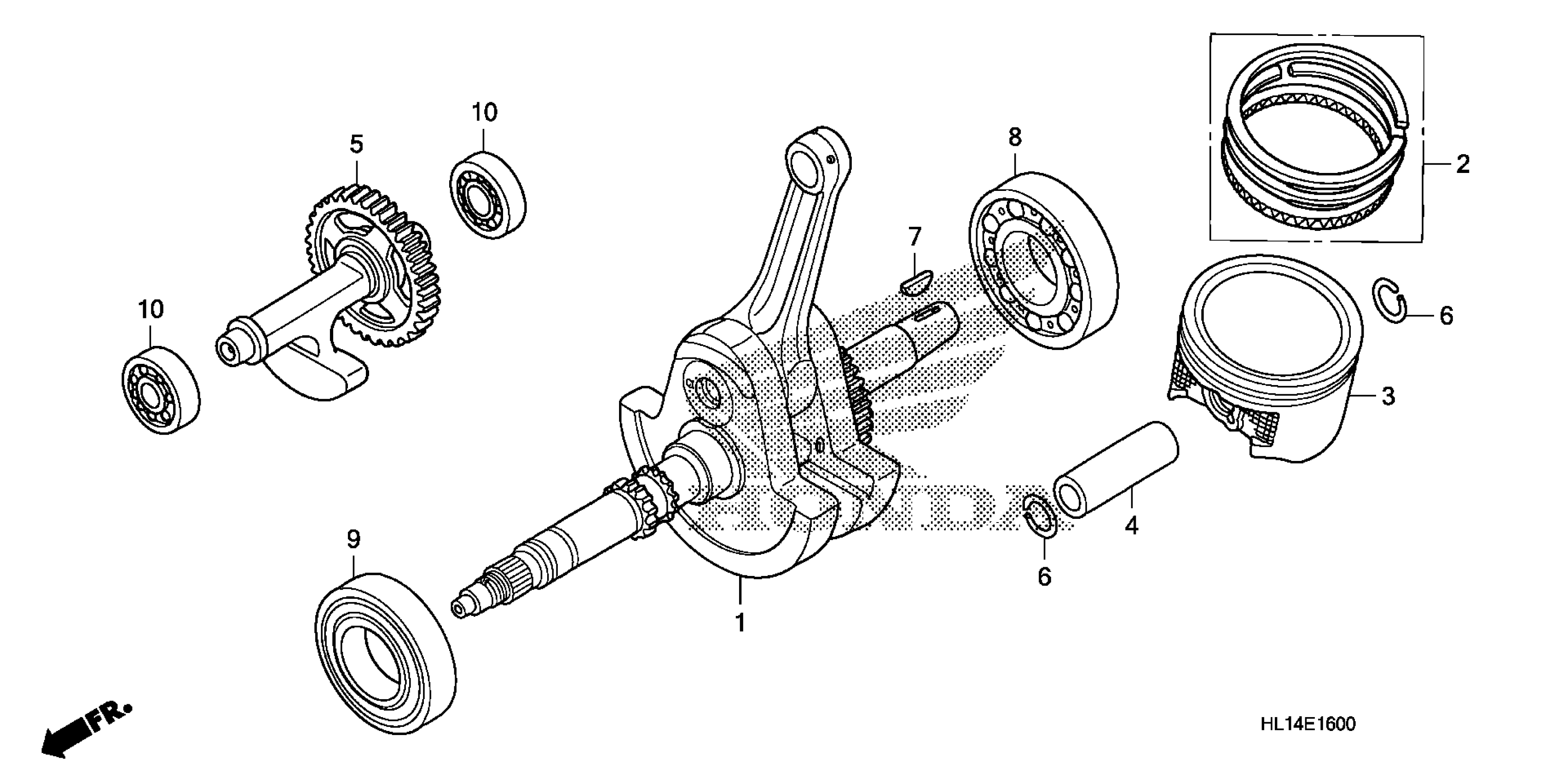

Honda MUV7002A (12) BIG RED, MEX, VIN# 3H1VE011-CD300001 TO 3H1VE011-CD399999 CRANKSHAFT + PISTON Diagram

CRANKSHAFT

13000-HL1-A00

$759.51

RING SET, PISTON (STD)

13010-HN8-A61

$53.23

RING SET, PISTON (0.25) | (Optional).

13011-HN8-A61

$51.58

PISTON (STD)

13101-HN8-A60

$109.52

PISTON (0.25) | (Optional).

13102-HN8-A60

$106.31

PIN, PISTON

13111-HN8-A60

$19.40

SHAFT, BALANCER (42T)

13420-HL1-A00

$213.22

CLIP, PISTON PIN (23MM)

90602-MBN-670

$1.34

KEY, SPECIAL WOODRUFF (25X18)

90741-ZE2-000

$2.85

BEARING, RADIAL BALL (40X85X18)

91001-HN8-004

$39.15

BEARING, ROLLER

91001-MBN-671

$38.78

BEARING, RADIAL BALL RSH (6203)

91003-HA7-672

$24.61
