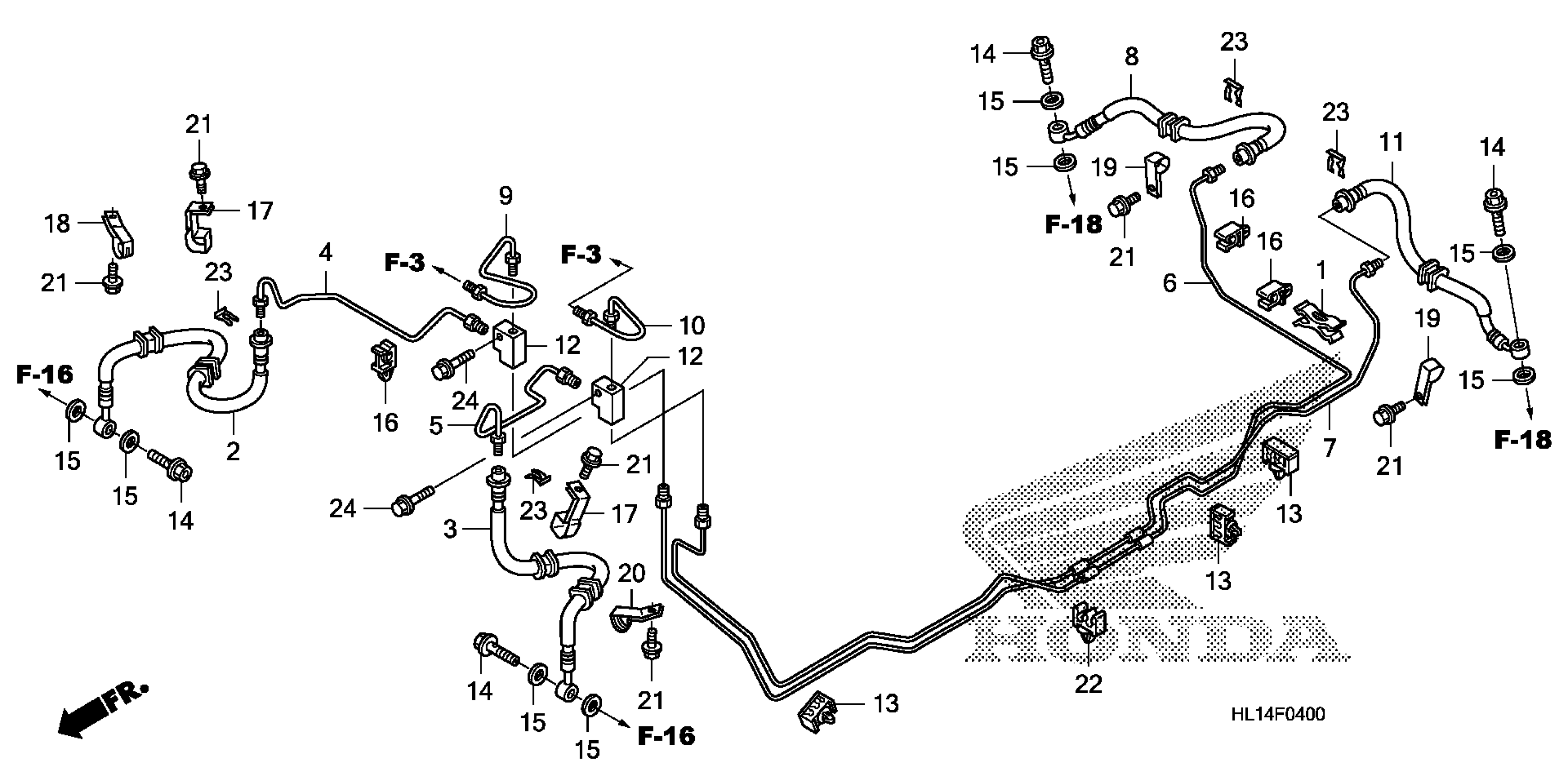

Honda MUV7002A (12) BIG RED, MEX, VIN# 3H1VE011-CD300001 TO 3H1VE011-CD399999 BRAKE PIPE Diagram

CLIP, PIPE

43155-HL1-A01

$2.07

HOSE, R. FR. BRAKE

45124-HL1-A01

$43.34

HOSE, L. FR. BRAKE

45125-HL1-A01

$17.84

PIPE, R. FR. BRAKE

45126-HL1-A00

$6.23

PIPE, L. FR. BRAKE

45127-HL1-A00

$5.84

PIPE, R. RR. BRAKE

45128-HL1-A00

$20.33

PIPE, L. RR. BRAKE

45129-HL1-A00

$18.30

HOSE, R. RR. BRAKE

45133-HL1-A01

$16.35

PIPE A, MASTER CYLINDER

45134-HL1-A00

$5.87

PIPE B, MASTER CYLINDER

45135-HL1-A00

$5.90

HOSE, L. RR. BRAKE

45143-HL1-A01

$19.10

PIPE, THREE WAY JOINT

45151-MCA-003

$11.03

CLIP, BRAKE PIPE

46393-SR3-003

$7.75

BOLT, OIL

46462-SE0-000

$7.26

GASKET, OIL BOLT

46472-568-000

$5.67

CLIP, CLUTCH PIPE (NATURAL)

46998-S04-003

$8.20

CLAMP A, FR. BRAKE HOSE

51207-HN5-670

$51.85

CLAMP B, R. FR. BRAKE HOSE

51208-HL1-A00

$1.67

CLAMP B, FR. BRAKE HOSE (RR.)

51208-HM8-000

$2.30

CLAMP B, L. FR. BRAKE HOSE

51209-HL1-A00

$1.75

BOLT, FLANGE (6X10)

90107-HC5-000

$2.33

CLAMP, BRAKE PIPE

90651-MAT-000

$3.48

CLIP, BRAKE HOSE

90651-538-000

$6.77

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
