Description

Price

1

JOINT, R. INBOARD

42220-HL1-A01

$288.57

2

JOINT, L. INBOARD

42230-HL1-A01

$288.57

3

RING A, INBOARD SNAP (R. SIDE)

42231-HP7-A01

$1.49

4

BOOT SET, L. RR. This part replaces 42235-HL1-A01.

42235-HL1-A02

$63.89

5

BOOT SET, R. This part replaces 42240-HL1-A01.

42240-HL1-A02

$110.21

6

BOOT SET, L. RR. This part replaces 42245-HL1-A01.

42245-HL1-A02

$110.20

7

SHAFT SET, R. RR. This part replaces 42250-HL1-A01.

42250-HL1-A02

$582.59

8

BOOT SET, R. INBOARD This part replaces 42260-HL1-A01.

42260-HL1-A02

$63.85

9

BAND, OUTBOARD BOOT

42336-HP7-A01

$7.44

10

BAND, INBOARD BOOT (R. SIDE)

42337-HP7-A01

$7.67

11

BAND, SHAFT BOOT (DOUBLE ROLLED BAND) This part replaces 42339-SJ6-003.

44329-SV4-305

$16.80

11

BAND, SHAFT BOOT (DOUBLE ROLLED BAND)

44329-SV4-305

$16.80

12

SHAFT SET, L. RR. This part replaces 42350-HL1-A01.

42350-HL1-A02

$498.96

13

SPLASH GUARD, R. RR.

43255-HL1-A00

$16.26

14

SPLASH GUARD, L. RR.

43256-HL1-A00

$16.26

15

BEARING ASSY., FR. HUB (NTN)

44300-SB2-038

$125.68

16

BAND, JOINT BOOT (DOUBLE ROLLED BAND) This part replaces 44316-SC2-013.

44327-SV4-305

$18.63

16

BAND, JOINT BOOT (DOUBLE ROLLED BAND)

44327-SV4-305

$18.63

17

BAND, SHAFT BOOT (R. SIDE)

44318-SJ7-003

$8.71

18

BAND, SHAFT BOOT

44318-SJ7-003

$8.71

19

SET-RING (24X1.6) (R. SIDE)

44319-SC2-003

$3.39

20

SET-RING (26X1.8) (GKN)

44319-SR1-003

$2.92

20

SET-RING (26X1.8) (GKN) This part replaces 44319-S01-A01.

44319-SR1-003

$2.92

21

RING, SNAP (L. SIDE)

44337-ST5-003

$3.78

22

BUSH, ARM (UPPER)

51108-HN2-000

$10.00

23

CAP, ARM PIVOT

52206-HN8-000

$9.96

24

KNUCKLE SET, R. RR.

52210-HL1-A01

$363.38

25

KNUCKLE SET, L. RR.

52260-HL1-A01

$363.38

26

COLLAR, RR. KNUCKLE

52263-HL1-A00

$7.75

27

BOLT, SPECIAL (6X12)

90112-MFC-640

$1.89

28

CIRCLIP (R. SIDE)

90653-HP7-A01

$1.79

29

CIRCLIP (INNER) (64MM)

91055-SA7-000

$5.91

30

DUST SEAL (50X64X7)

91254-HL1-A01

$13.72

31

DUST SEAL (51X66X7)

91255-HL1-A01

$17.02

32

DUST SEAL (24X36X7)

91264-HN8-003

$6.12

33

CIRCLIP (L. SIDE)

44338-ST5-003

$2.03

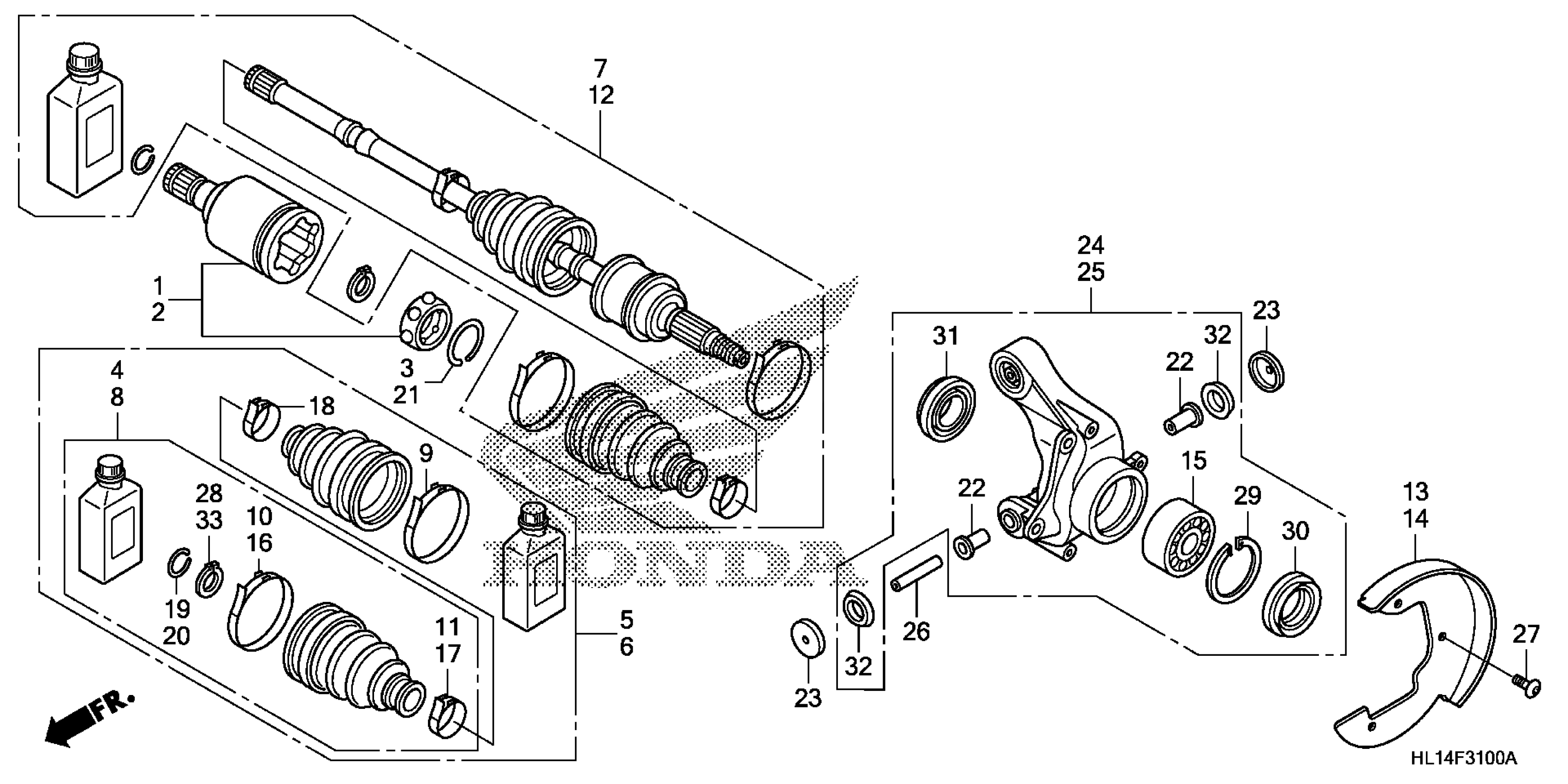

Honda MUV7002A (11) BIG RED, MEX, VIN# 3H1VE011-BD200001 TO 3H1VE011-BD299999 REAR KNUCKLE + REAR DRIVESHAFT Diagram
