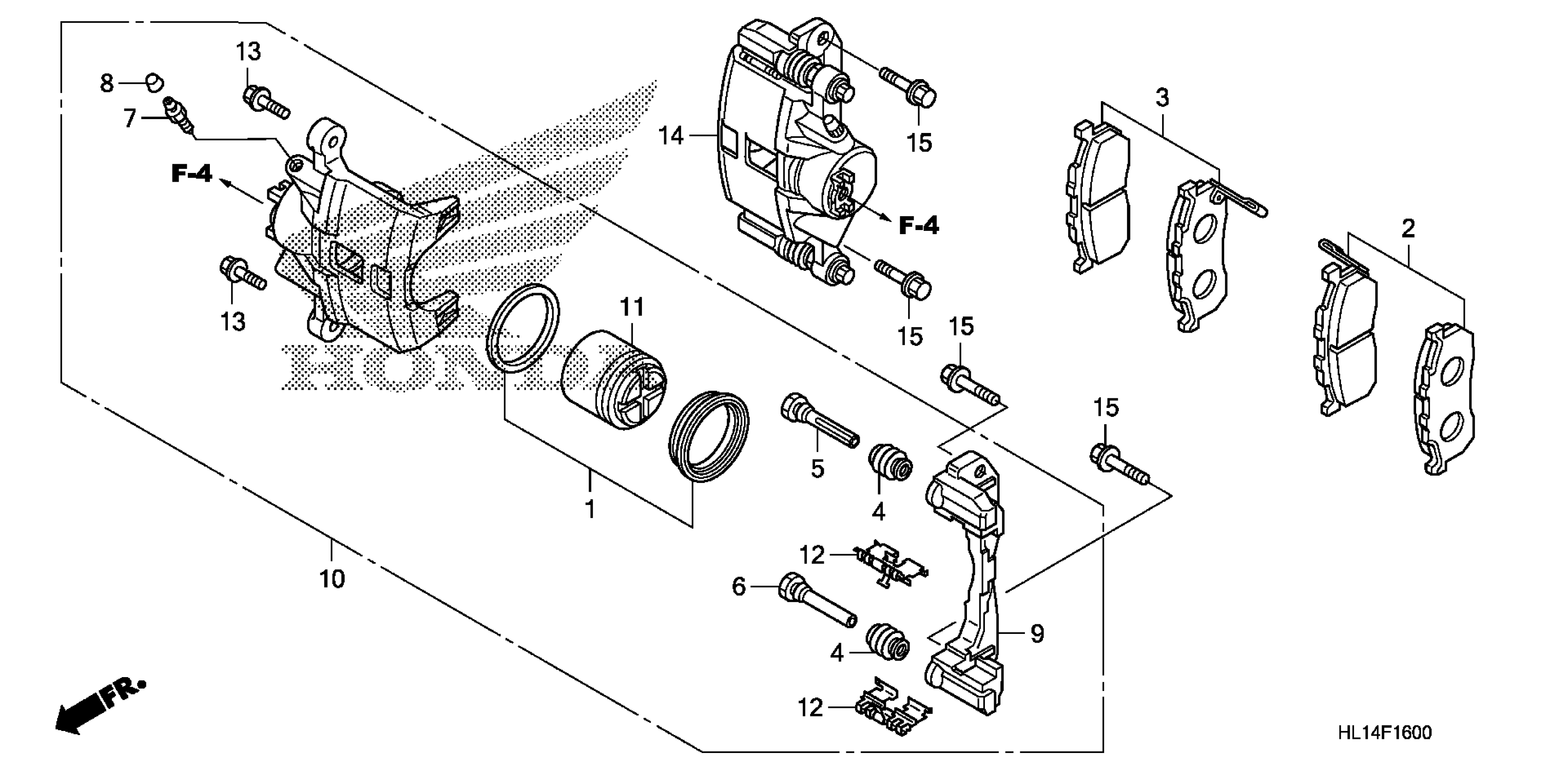

Honda MUV7002A (10) BIG RED, MEX, VIN# 3H1VE011-AD100001 TO 3H1VE011-AD199999 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06450-HL1-A01

$9.39

PAD SET, L. FR.

06451-HL1-A01

$52.47

PAD SET, R. FR.

06452-HL1-A01

$52.45

COVER, DUST

43234-S04-003

$5.62

PIN A

43235-S84-A51

$9.71

PIN B

43262-S84-A51

$6.23

SCREW, BLEEDER

43352-SM4-951

$8.95

CAP, BLEEDER SCREW

43353-SD5-003

$6.38

BRACKET, FR. CALIPER

45111-HL1-A01

$65.66

CALIPER SUB-ASSY., L. FR. This part replaces 45150-HL1-A01.

45150-HL1-A02

$328.80

CALIPER SUB-ASSY., L. FR.

45150-HL1-A02

$328.80

PISTON (51MM)

45216-HL1-A01

$58.89

RETAINER

45237-HL1-A01

$4.37

BOLT, FLANGE (8X22)

45240-SC2-003

$7.78

CALIPER SUB-ASSY., R. FR. This part replaces 45250-HL1-A01.

45250-HL1-A02

$328.80

CALIPER SUB-ASSY., R. FR.

45250-HL1-A02

$328.80

BOLT, CALIPER MOUNT

90108-HL1-A00

$2.11
