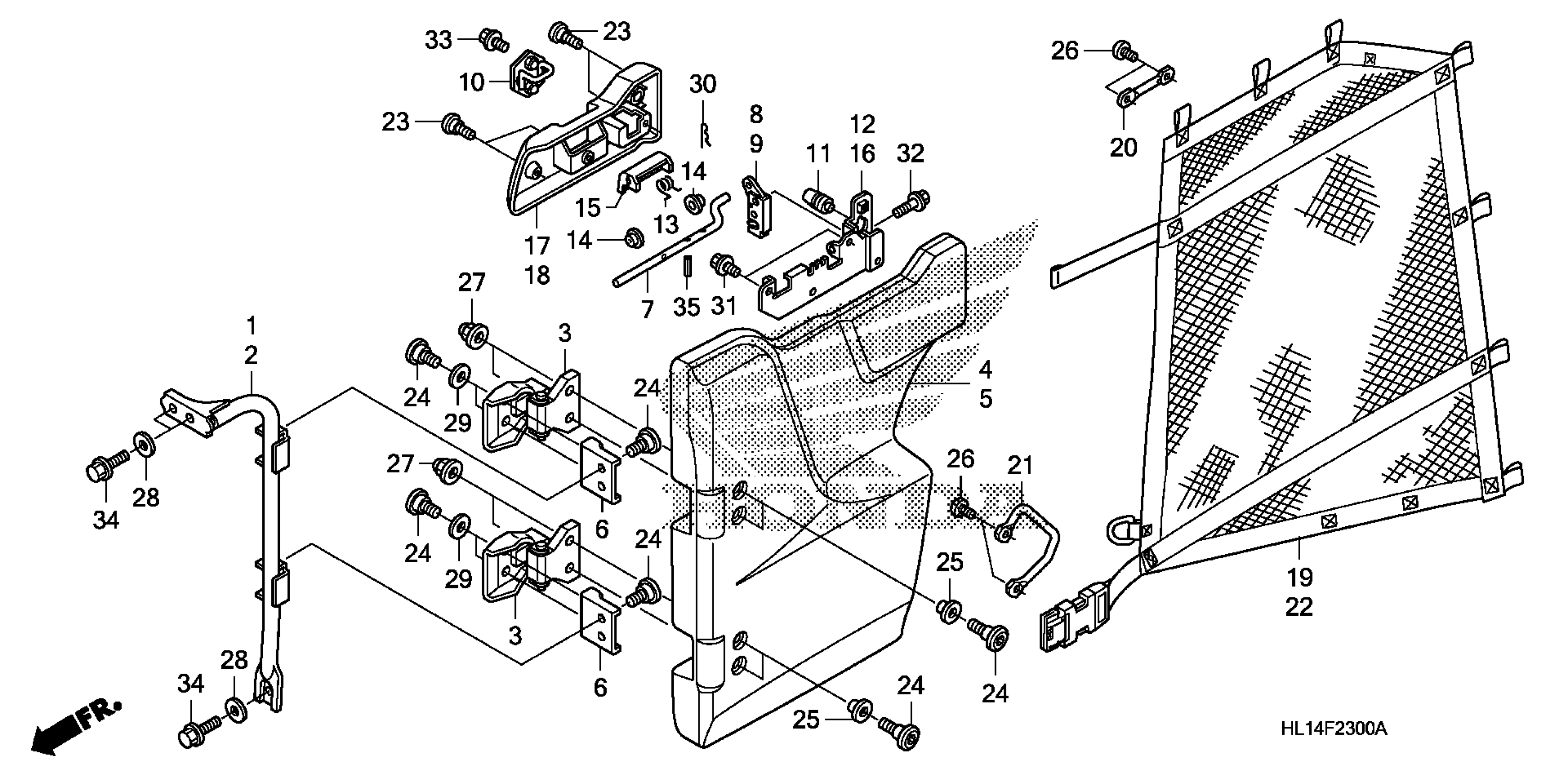

Honda MUV7002A (09) BIG RED, MEX, VIN# 3H1VE011-9D000001 TO 3H1VE011-9D099999 DOOR Diagram

PIPE, R. HINGE This part replaces 67110-HL1-A00.

67110-HL1-A20

$119.04

PIPE, L. HINGE

67120-HL1-A00

$119.04

HINGE This part replaces 67150-HL1-A00ZA.

67150-HL1-A01

$78.35

HINGE

67150-HL1-A01

$78.35

DOOR, R. *NH1* (BLACK)

67205-HL1-A00ZA

$145.32

DOOR, L. *NH1* (BLACK)

67215-HL1-A00ZA

$152.12

BRACKET, HINGE

67225-HL1-A00

$21.26

LEVER, DOOR

67230-HL1-A00

$28.87

LATCH, R. DOOR

67236-HL1-A01

$13.90

LATCH, L. DOOR

67237-HL1-A01

$14.08

STRIKER, DOOR

67238-HL1-A00

$19.67

STOPPER, DOOR

67239-HL1-A00

$1.34

PLATE, R. DOOR LEVER

67240-HL1-A00

$103.47

SPRING, DOOR LEVER

67241-HL1-A00

$3.31

BUSH, FLANGE (6MM)

67243-HL1-A00

$1.96

HANDLE, DOOR *NH1* (BLACK)

67244-HL1-A00ZA

Unavailable

PLATE, L. DOOR LEVER

67250-HL1-A00

$108.81

COVER, R. DOOR *NH1* (BLACK)

67251-HL1-A00ZA

$10.57

COVER, L. DOOR *NH1* (BLACK)

67252-HL1-A00ZA

$10.57

NET ASSY., R. SIDE

67310-HL1-A00

Unavailable

WIRE, SIDE NET

67317-HL1-A00

$12.65

WIRE, SIDE NET BUCKLE

67319-HL1-A00

$18.74

NET ASSY., L. SIDE

67320-HL1-A00

Unavailable

SCREW, SPLASH GUARD

90103-HC4-770

$2.06

BOLT, HINGE (8X24)

90104-HL1-A00

$3.44

COLLAR, DOOR

90105-HL1-A00

$3.84

BOLT, SOCKET (6X10)

90106-HL1-A00

$2.50

NUT, CAP (8MM)

90322-S10-003

$4.04

WASHER, PLAIN (8MM)

94102-08700

$0.87

WASHER, PLAIN (10MM)

94102-10700

$1.07

PIN, LOCK (6MM)

94251-06000

$1.01

BOLT, FLANGE (6X10)

95701-06010-08

$1.62

BOLT, FLANGE (6X10) This part replaces 95801-06010-08.

95701-06010-08

$1.62

BOLT, FLANGE (6X20)

95701-06020-08

$0.40

BOLT, FLANGE (6X20) This part replaces 95801-06020-08.

95701-06020-08

$0.40

BOLT, FLANGE (8X12)

95701-08012-07

$1.79

BOLT, FLANGE (8X12) This part replaces 95801-08012-07.

95701-08012-07

$1.79

BOLT, FLANGE (8X20)

95701-08020-08

$1.46

BOLT, FLANGE (8X20) This part replaces 95801-08020-08.

95701-08020-08

$1.46

ROLLER (2.5X15.8)

96220-25158

$0.37
