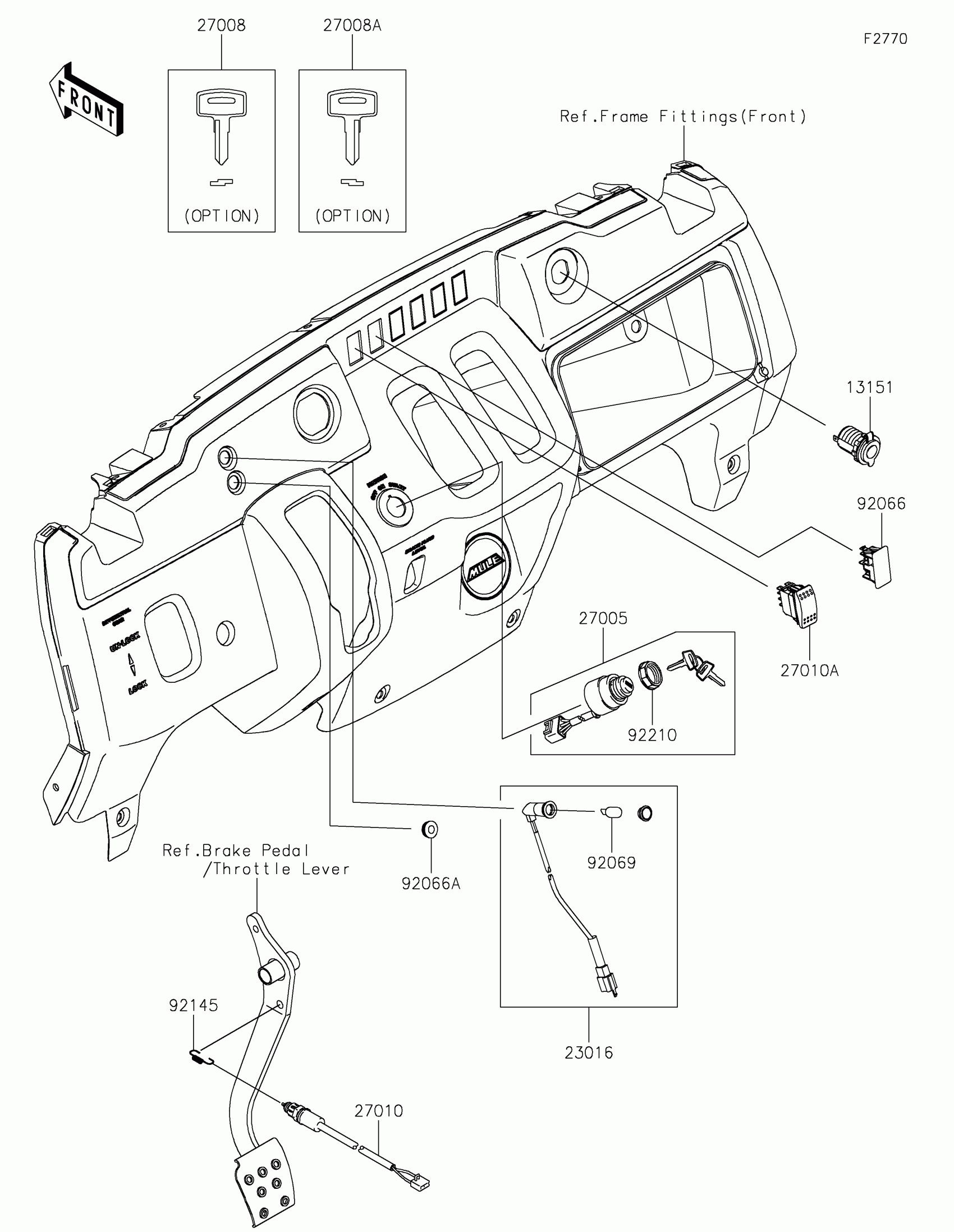

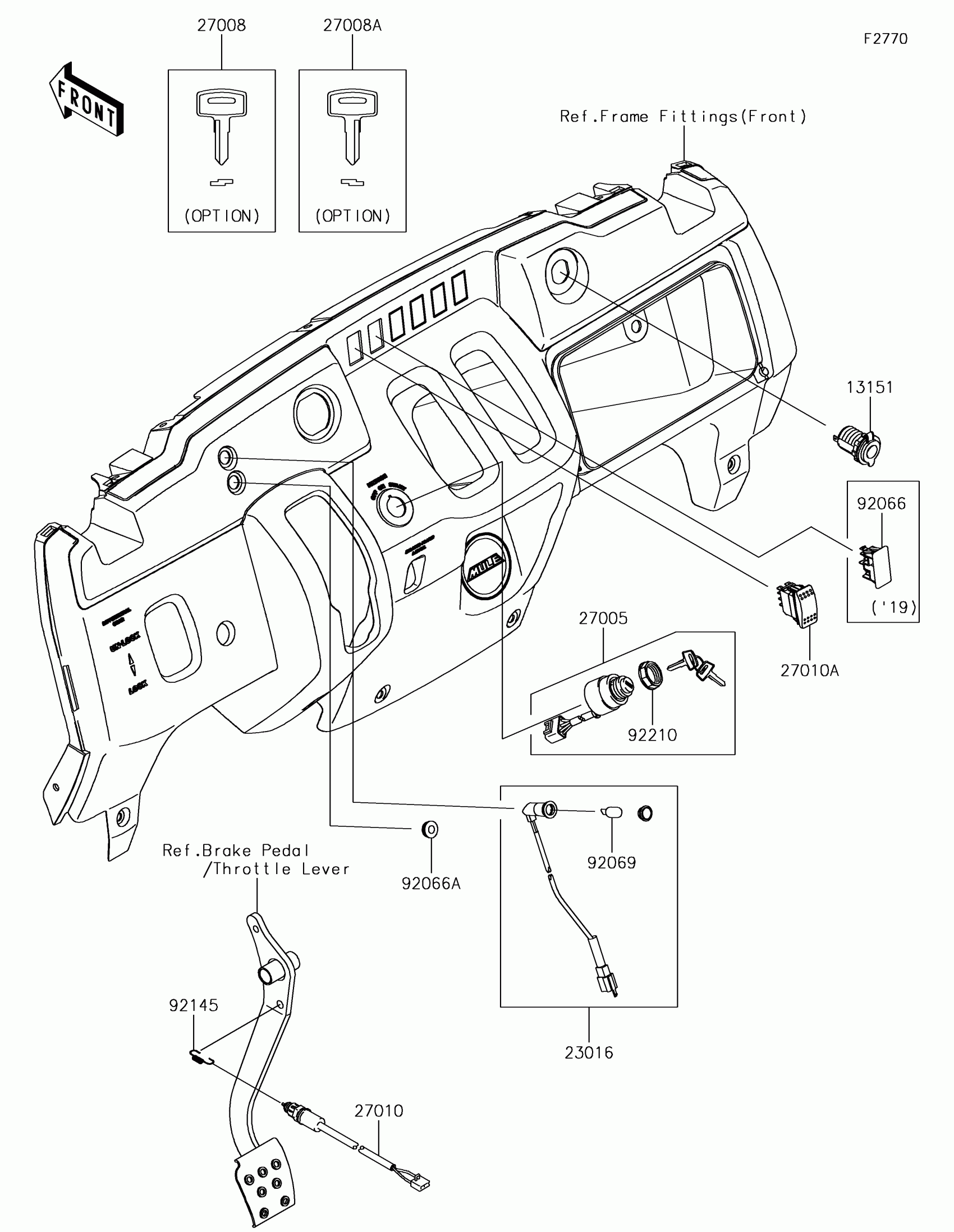

Kawasaki MULE SX™ Ignition Switch Diagram

Description

Price

13151

SWITCH-COMP,OUTLET,12V

13151-0556

$12.14

23016

LAMP-ASSY,PARKING

23016-0631

$45.58

27005

SWITCH-ASSY-IGNITION

27005-1146

$102.73

27008

KEY-LOCK,BLANK

27008-1153

$17.98

27008A

KEY-LOCK,BLANK

27008-1157

$17.98

27010

SWITCH,BRAKE

27010-0724

$33.80

27010A

SWITCH,OUTER

27010-0806

$62.98

92066

PLUG

92066-0922

$3.69

92066A

PLUG

92066-1231

$5.66

92069

BULB,12V 1.7W,T10WB

92069-0103

$4.99

92145

SPRING,REAR BRAKE SWITCH

92145-7508

$8.01

92210

NUT,IGNITION SWITCH

92210-1264

$6.00
