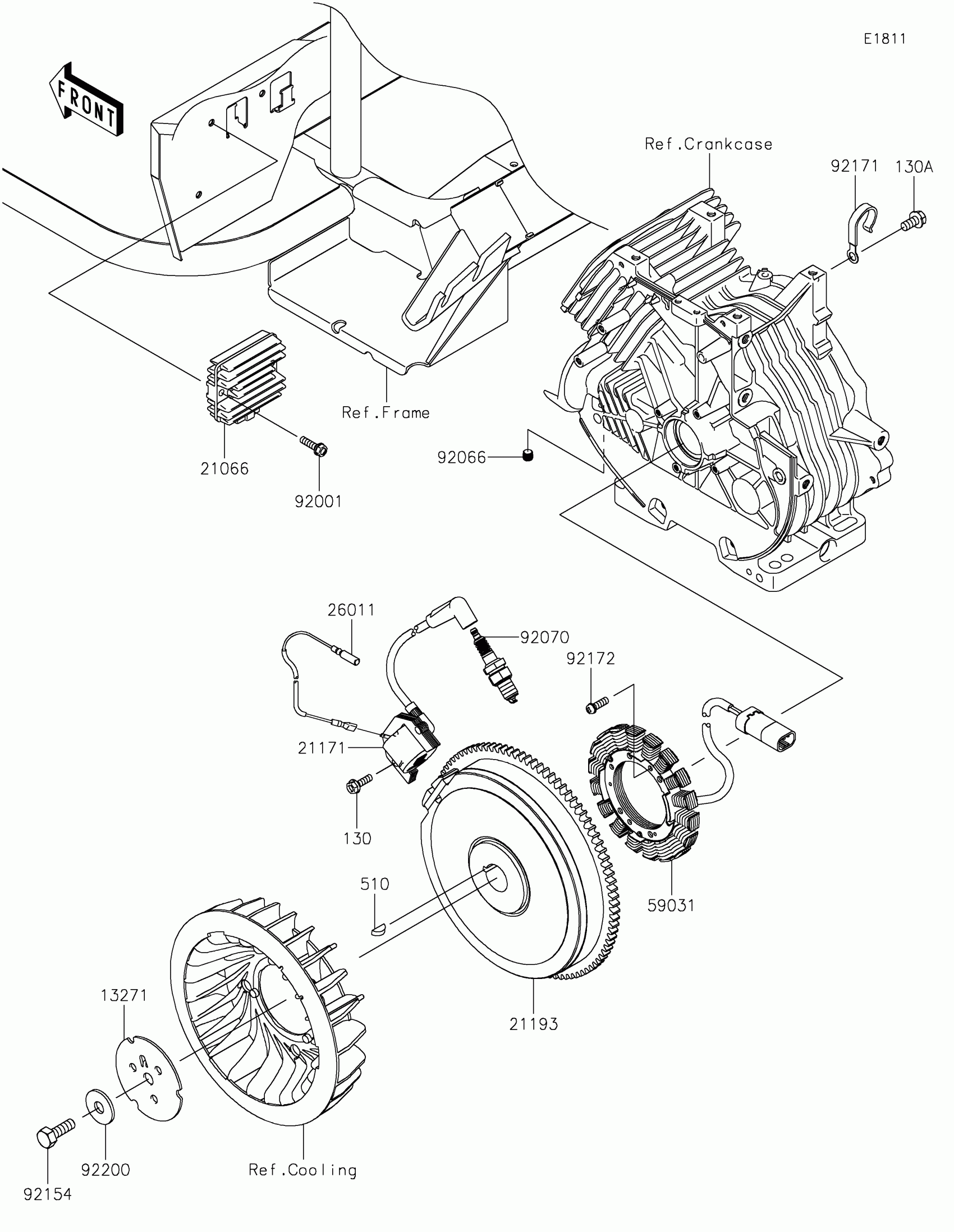

Kawasaki MULE SX™ Generator/Ignition Coil Diagram

Description

Price

13271

PLATE,FAN

13271-7029

$3.03

21066

REGULATOR-VOLTAGE

21066-0039

$160.56

21171

COIL-ASSY-IGNITION

21171-7035

$51.79

21193

FLYWHEEL-ASSY

21193-0041

$150.56

26011

WIRE-LEAD

26011-7014

$3.08

59031

COIL-CHARGING

59031-2132

$73.98

92001

BOLT,FLANGED,6X22

92001-1352

$4.31

92066

PLUG

92066-0881

$3.93

92070

PLUG-SPARK,BPR5ES(NGK),SOLID

92070-2088

$4.40

92154

BOLT,12X30

92154-7003

$4.33

92171

CLAMP

92171-7005

$6.75

92172

SCREW,5X20

92172-7018

$0.41

92200

WASHER

92200-7002

$2.31

130

BOLT-FLANGED,6X20

130BA0620

$1.74

130A

BOLT-FLANGED,8X16

130BA0816

$1.12

510

WOODRUFF KEY

510A5100

$2.70
