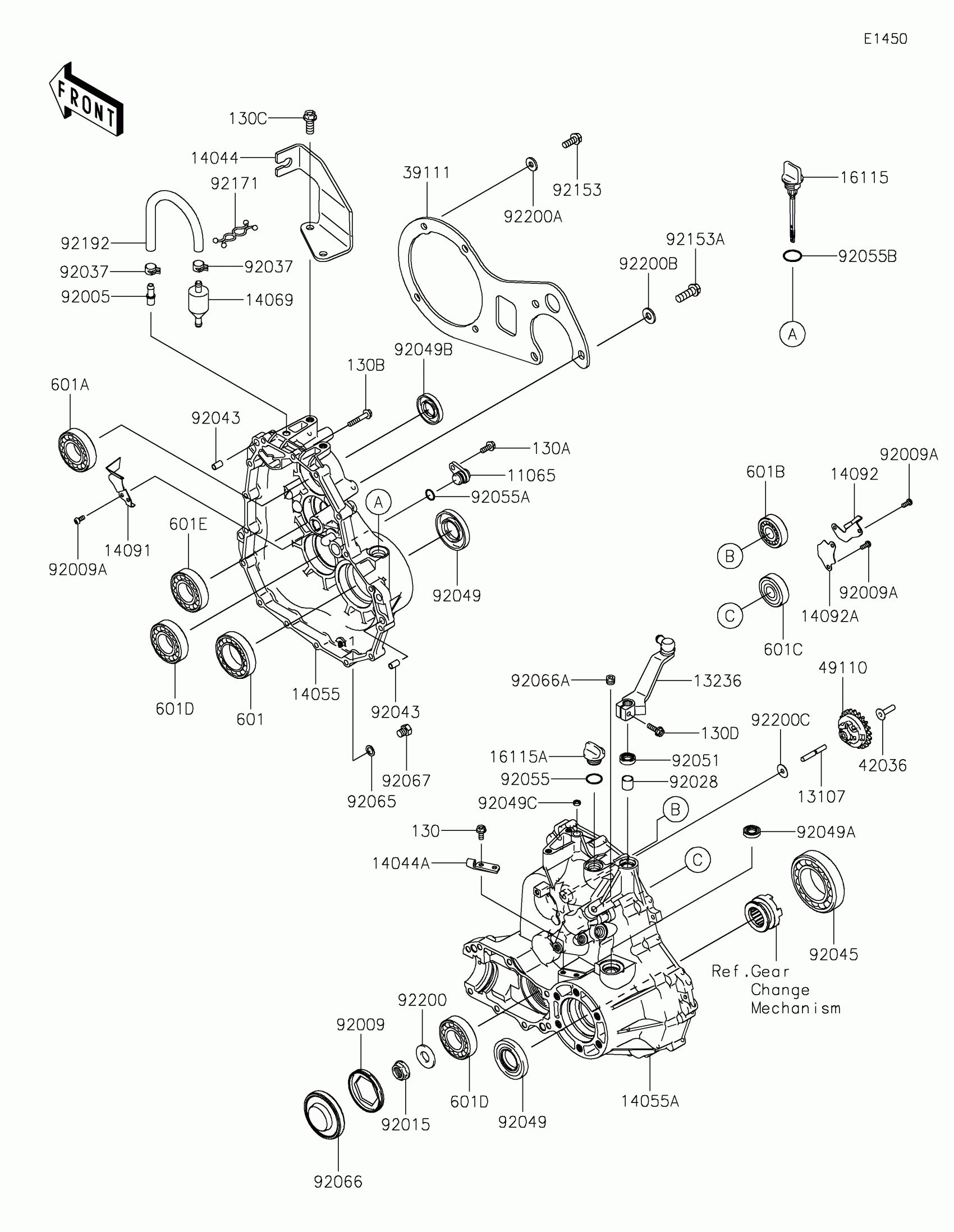

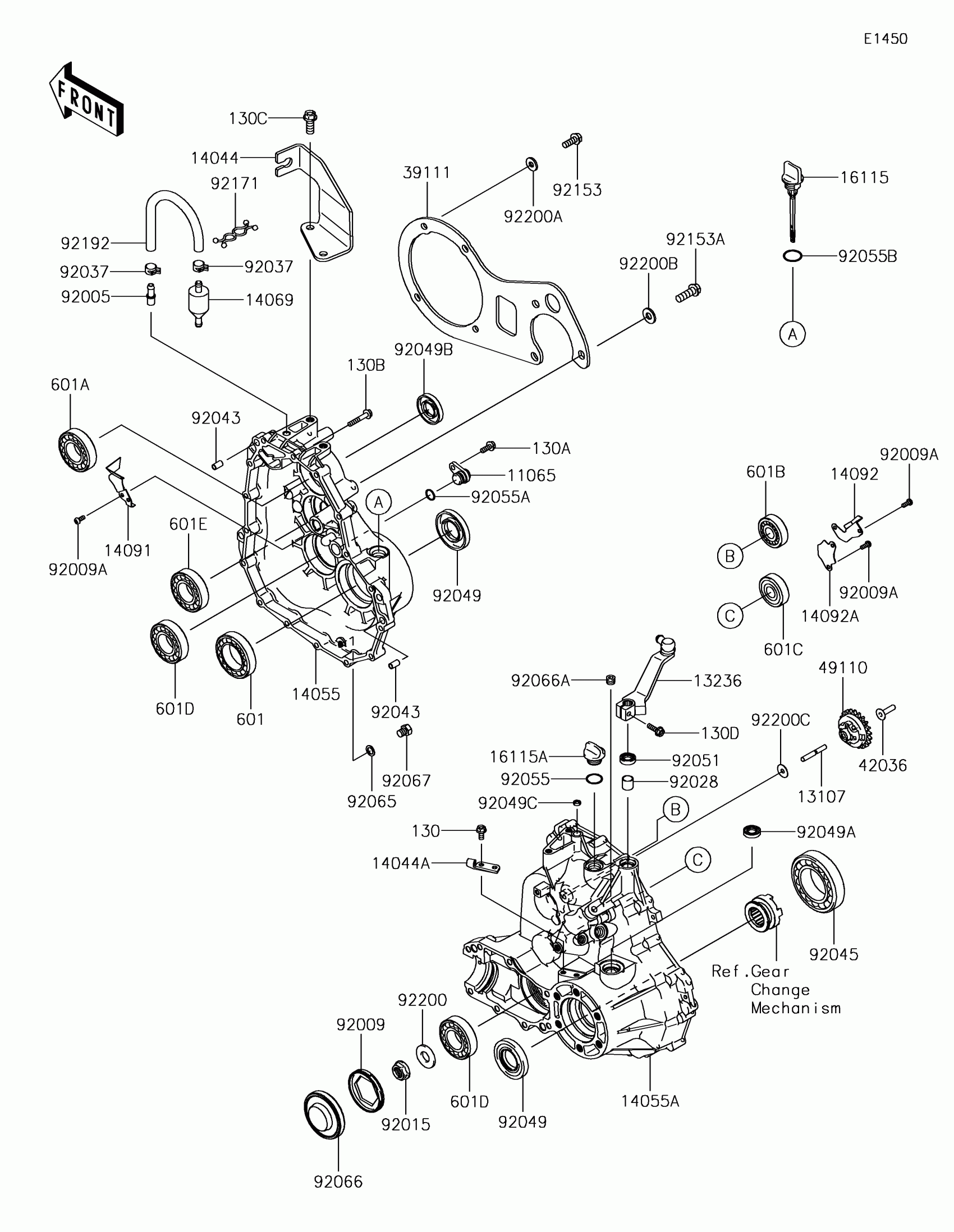

Kawasaki MULE SX™ Gear Box Diagram

#

Description
Price

11065

CAP,GEAR CASE,RH

11065-0062

$18.40

13107

SHAFT

13107-2235

$5.51

13236

LEVER-COMP

13236-0039

$54.48

14044

HOLDER-CABLE,SHIFT CONTROL

14044-0005

$46.79

14044A

HOLDER-CABLE,DIFF-LOCK

14044-0006

$10.37

14055

CASE-GEAR,RH

14055-0008

$276.40

14055A

CASE-GEAR,LH

14055-0013

$293.77

14069

BREATHER

14069-1051

$10.19

14091

COVER

14091-0394

$8.60

14092

COVER

14092-0052

$5.54

14092A

COVER

14092-0053

$4.87

16115

CAP-OIL FILLER

16115-0015

$13.75

16115A

CAP-OIL FILLER

16115-1053

$12.20

39111

ROD-TIE

39111-0016

$103.65

42036

SLEEVE

42036-2060

$3.36

49110

GOVERNOR-ASSY

49110-0011

$113.33

92005

FITTING,BREATHER

92005-1127

$17.17

92009

SCREW,64MM

92009-1914

$29.63

92009A

SCREW

92009-2308

$0.43

92015

NUT,16MM

92015-1581

$19.64

92028

BUSHING

92028-1347

$8.51

92037

CLAMP,TUBE

92037-1505

$4.76

92043

PIN,6.2X8X14

92043-1263

$0.43

92045

BEARING-BALL,6210CM

92045-1213

$55.61

92049

SEAL-OIL,HTC 30 60 8

92049-0049

$13.57

92049A

SEAL-OIL,TC14245

92049-1520

$13.87

92049B

SEAL-OIL,HTC 28X45X7

92049-1576

$14.71

92049C

SEAL-OIL,VC-6X10X2.5

92049-2097

$2.13

92051

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O

92055-012

$1.01

92055A

RING-O,ID=13.8

92055-1141

$3.92

92055B

RING-O,20X3

92055-2185

$1.03

92065

GASKET,10.5X16X1

92065-058

$3.96

92066

PLUG

92066-0033

$18.40

92066A

PLUG,PT1/8X7

92066-1227

$5.90

92067

PLUG,DRAIN,10X12

92067-001

$4.41

92153

BOLT,FLANGED,8X21

92153-0898

$3.90

92153A

BOLT,10X30

92153-0908

$3.35

92171

CLAMP

92171-0476

$3.90

92192

TUBE

92192-0216

$10.90

92200

WASHER,16.3X35X3.2

92200-0119

$4.60

92200A

WASHER,8.2X20.0X2.5

92200-0205

$3.35

92200B

WASHER,10.2X23X2.5

92200-0211

$3.35

92200C

WASHER,6.2X20X0.5

92200-2036

$1.17

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

130B

BOLT-FLANGED,6X35

130BA0635

$0.94

130C

BOLT-FLANGED,10X25

130BA1025

$3.40

130D

BOLT-FLANGED,6X20

130CA0620

$1.70

601

BEARING-BALL

601B6008

$26.46

601A

BALL BEARING,#6206

601B6206

$22.50

601B

BEARING-BALL,#6303C3

601B6303

$8.29

601C

BEARING-BALL

601B6303U

$26.36

601D

BEARING-BALL,#6305C3

601B6305

$25.78

601E

BEARING-BALL,#6305U

601B6305U

$25.54
