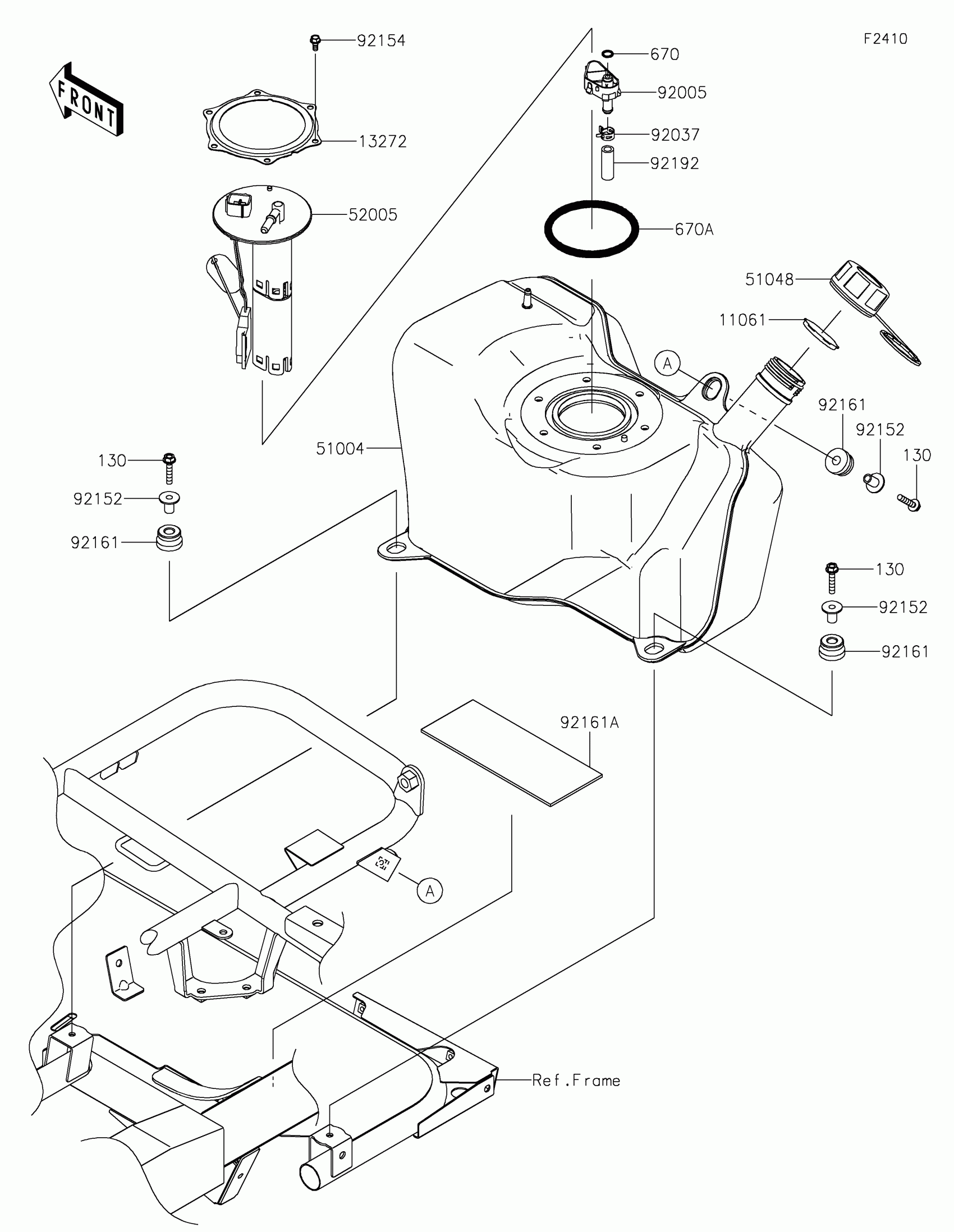

Kawasaki MULE SX™ Fuel Tank Diagram

Description

Price

11061

GASKET,FUEL TANK CAP

11061-0395

$5.85

13272

PLATE

13272-2501

$6.84

51004

TANK-FUEL

51004-0030

$143.10

51048

CAP-ASSY-TANK,FUEL

51048-0026

$12.72

52005

GAUGE,FUEL

52005-0757

$366.08

92005

FITTING

92005-0813

$3.26

92037

CLAMP,HOSE CLIP

92037-1181

$3.36

92152

COLLAR,6.8X10X18.1

92152-1867

$5.23

92154

BOLT,FUEL PUMP

92154-1326

$0.95

92161

DAMPER,10X28X17

92161-1614

$1.65

92161A

DAMPER,80X200X3.175

92161-1645

$15.30

92192

TUBE,8X13X37

92192-1622

$1.47

130

BOLT-FLANGED,6X30

130BA0630

$1.46

670

O RING,9MM

670E1509

$3.57

670A

O RING

670E5090

$30.75
