Description

Price

13168

LEVER,BRAKE,LH

13168-0065

$15.48

13168A

LEVER,BRAKE,LH

13168-0066

$30.44

13168B

LEVER,BRAKE,RH

13168-0067

$15.48

13168C

LEVER,BRAKE,RH

13168-0068

$30.44

41035B

PANEL-ASSY-BRAKE,FR,LH

41035-0728

$503.04

41035C

PANEL-ASSY-BRAKE,FR,RH

41035-0729

$503.04

41038

DRUM,FRONT BRAKE

41038-0013

$234.53

41047

SHOE-ASSY-BRAKE

41047-0001

$29.31

41068

AXLE,FR

41068-0026

$154.65

43092A

CYLINDER,BRAKE

43092-0003

$121.95

92033

RING-SNAP

92033-1279

$3.54

92041

COTTER,4.0X35

92041-1053

$3.92

92043

PIN,SHOE HOLD

92043-1460

$4.87

92144

SPRING,RH

92144-1608

$7.26

92144A

SPRING,SHOE HOLD

92144-1609

$7.60

92144B

SPRING,RETURN,UPP

92144-1612

$7.98

92144C

SPRING,RETURN,LWR

92144-1613

$7.98

92144D

SPRING,LH

92144-1614

$6.41

92144E

SPRING

92144-1615

$5.25

92150

BOLT,FLANGED,6X10

92150-1664

$4.39

92152

COLLAR,25X34X10

92152-0164

$11.95

92154

BOLT,10X34.6

92154-1482

$3.63

92200

WASHER,18.5X38X4.5

92200-1794

$2.45

92210

NUT,FLANGED,18MM

92210-0132

$11.95

130

BOLT-FLANGED,8X16

130CA0816

$2.49

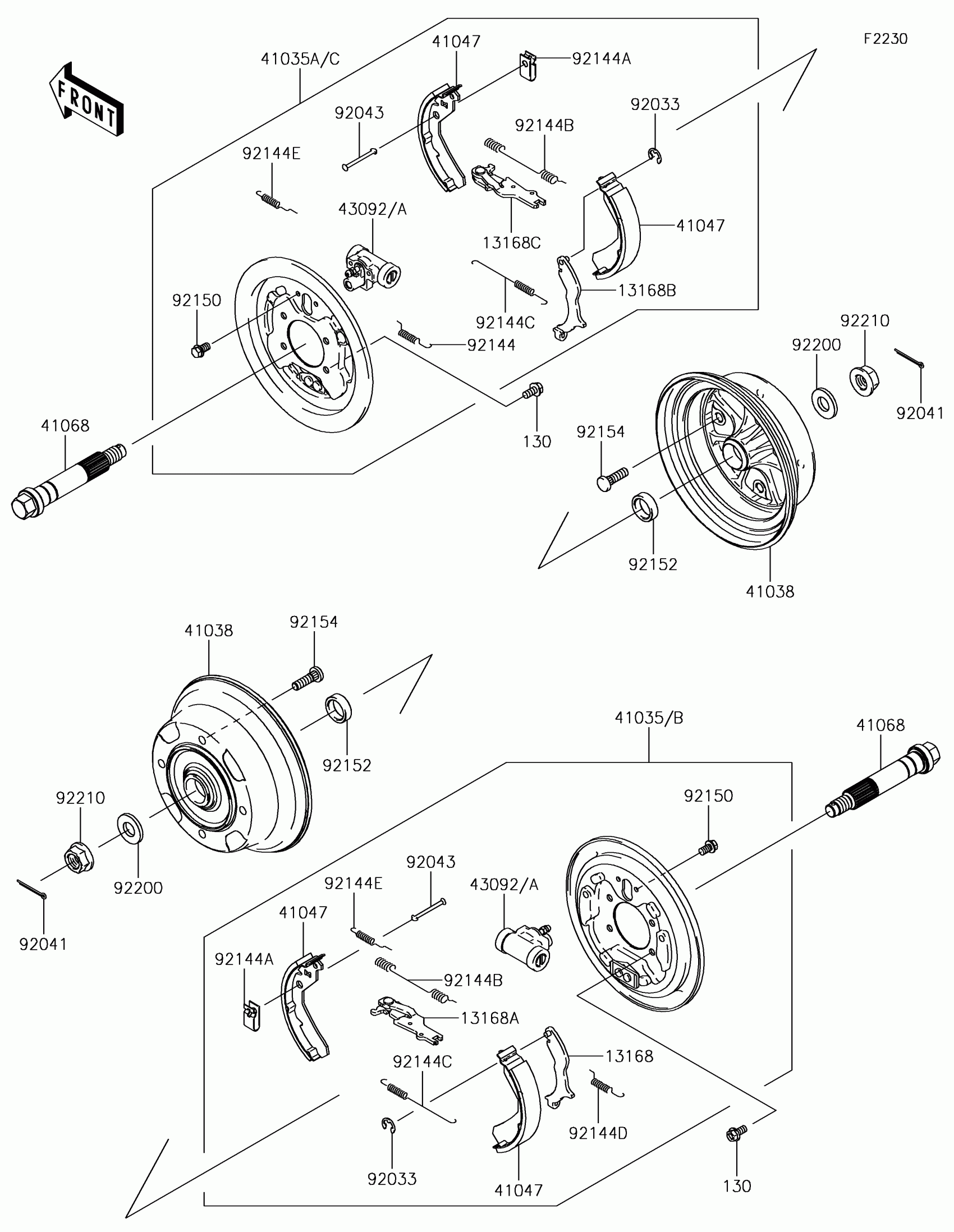

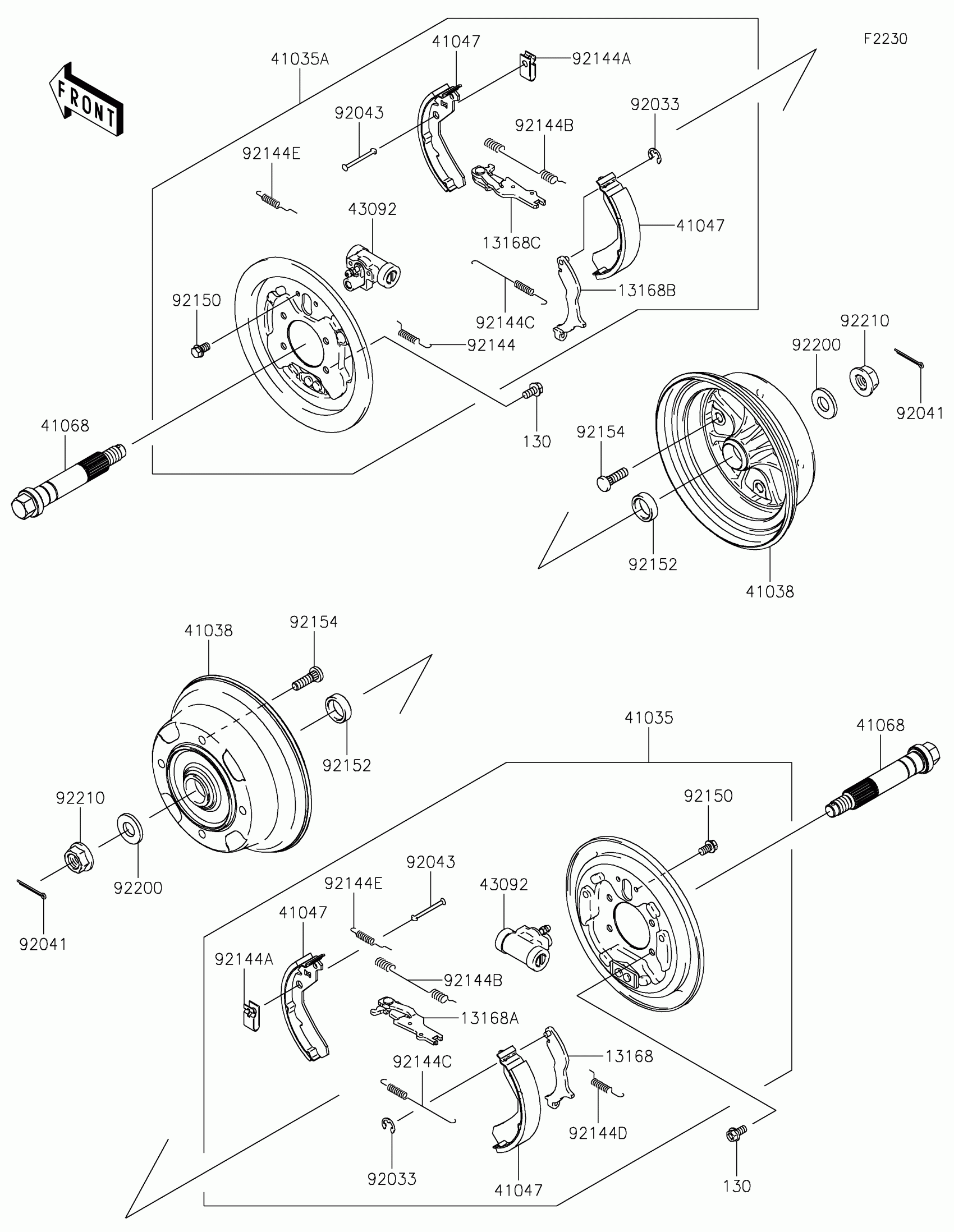

Kawasaki MULE SX™ Front Hubs/Brakes Diagram

LEVER,BRAKE,LH

LEVER,BRAKE,LH

LEVER,BRAKE,RH

LEVER,BRAKE,RH

PANEL-ASSY-BRAKE,FR,LH

PANEL-ASSY-BRAKE,FR,RH

DRUM,FRONT BRAKE

SHOE-ASSY-BRAKE

AXLE,FR

CYLINDER,BRAKE

RING-SNAP

COTTER,4.0X35

PIN,SHOE HOLD

SPRING,RH

SPRING,SHOE HOLD

SPRING,RETURN,UPP

SPRING,RETURN,LWR

SPRING,LH

SPRING

BOLT,FLANGED,6X10

COLLAR,25X34X10

BOLT,10X34.6

WASHER,18.5X38X4.5

NUT,FLANGED,18MM

BOLT-FLANGED,8X16
