2019 Kawasaki Mule SX™ Driven Converter/drive Belt Diagram

← All diagrams

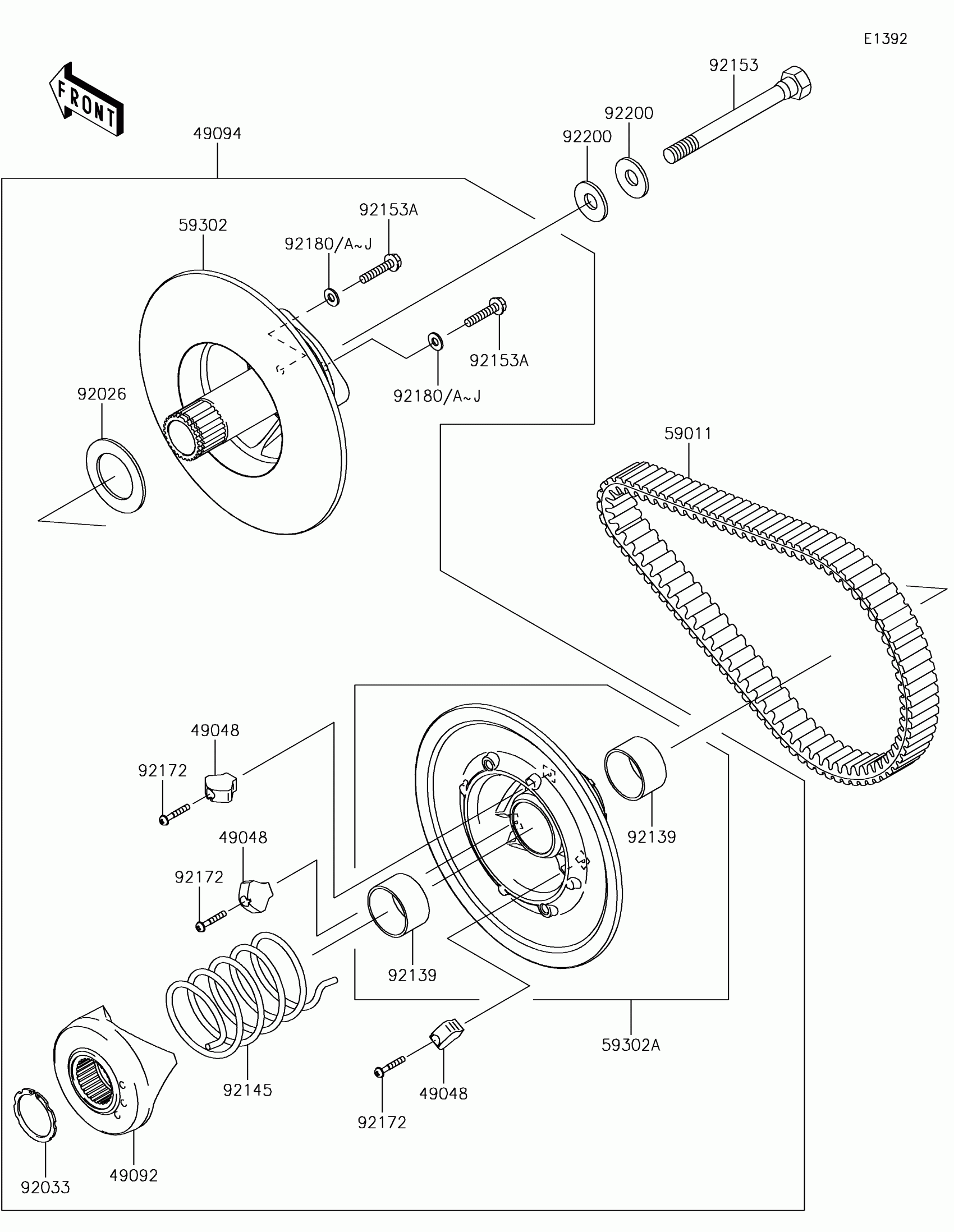

Find the part on the Driven Converter/drive Belt diagram for your 2019 Kawasaki Mule SX™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki Mule SX™ Driven Converter/drive Belt Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

49048

SHOE

49048-0001

1
Out of stock

49092

RAMP

49092-0005

1
Out of stock

49094

CONVERTER-ASSY-DRIVEN

49094-0040

1
Out of stock

59011

BELT

59011-0011

1
Out of stock

59302

SHEAVE-COMP,FIXED

59302-0008

1
Out of stock

59302A

SHEAVE-COMP

59302-0098

1
Out of stock

92026

SPACER,38X60X2.5

92026-0046

1
Out of stock

92033

RING-SNAP

92033-0053

1
Out of stock

92139

BUSHING

92139-0054

1
Out of stock

92145

SPRING

92145-0272

1
Out of stock

92153

BOLT,12X121

92153-0593

1
Out of stock

92153A

BOLT,6X28

92153-0833

1
Out of stock

92172

SCREW,4X25

92172-0060

1
Out of stock

92180

SHIM,T=0.8

92180-0150

—
Out of stock

92180A

SHIM,T=1.0

92180-0151

—
Out of stock

92180B

SHIM,T=1.2

92180-0152

—
Out of stock

92180C

SHIM,T=1.4

92180-0153

1
Out of stock

92180D

SHIM,T=1.6

92180-0154

—
Out of stock

92180E

SHIM,T=1.8

92180-0155

—
Out of stock

92180F

SHIM,T=2.0

92180-0156

—
Out of stock

92180G

SHIM,T=2.3

92180-0157

—
Out of stock

92180H

SHIM,T=2.5

92180-0158

—
Out of stock

92180I

SHIM,T=2.8

92180-0159

—
Out of stock

92180J

SHIM,T=3.2

92180-0160

—
Out of stock

92200

WASHER

92200-0249

1
Out of stock
