Description

Price

13107

SHAFT,SECOND,18T

13107-0078

$231.91

13107A

SHAFT,FIRST,INPUT,16T&24T

13107-0086

$271.81

13107B

SHAFT,THIRD,16T

13107-0090

$271.81

13139

SHIFTER,FR/RR

13139-0004

$102.85

13262

GEAR-TRANSMISSION SPUR,36T

13262-0108

$105.75

13262A

GEAR-TRANSMISSION SPUR,35T

13262-0142

$157.38

39135

SPROCKET-DRIVEN,30T

39135-0001

$137.40

59051

GEAR-SPUR,37T

59051-0049

$19.14

92026

SPACER,21.2X29X1.6

92026-1568

$7.81

92026A

SPACER,28X39X8

92026-1629

$15.49

92033

RING-SNAP,20MM

92033-015

$3.25

92033A

RING-SNAP,25.9X30.6X1.2

92033-1037

$3.54

92046

BEARING-NEEDLE,FWF-283317

92046-1278

$18.83

92046A

BEARING-NEEDLE,REVERSE GEAR

92046-1279

$16.11

92057

CHAIN,REVERSE,23RH302-38ASM

92057-0072

$44.92

92152

COLLAR,21.2X34.0X3.0

92152-0241

$7.69

92200

WASHER,28.2X40.0X1.6

92200-0090

$4.08

92200A

WASHER,28.5X34.0X1.5

92200-1240

$7.83

480

CIRCLIP-TYPE-C,25MM

480J2500

$1.47

480A

CIRCLIP-TYPE-C,32MM

480J3200

$1.28

551

PIN DOWEL 3X8

551A0308

$0.59

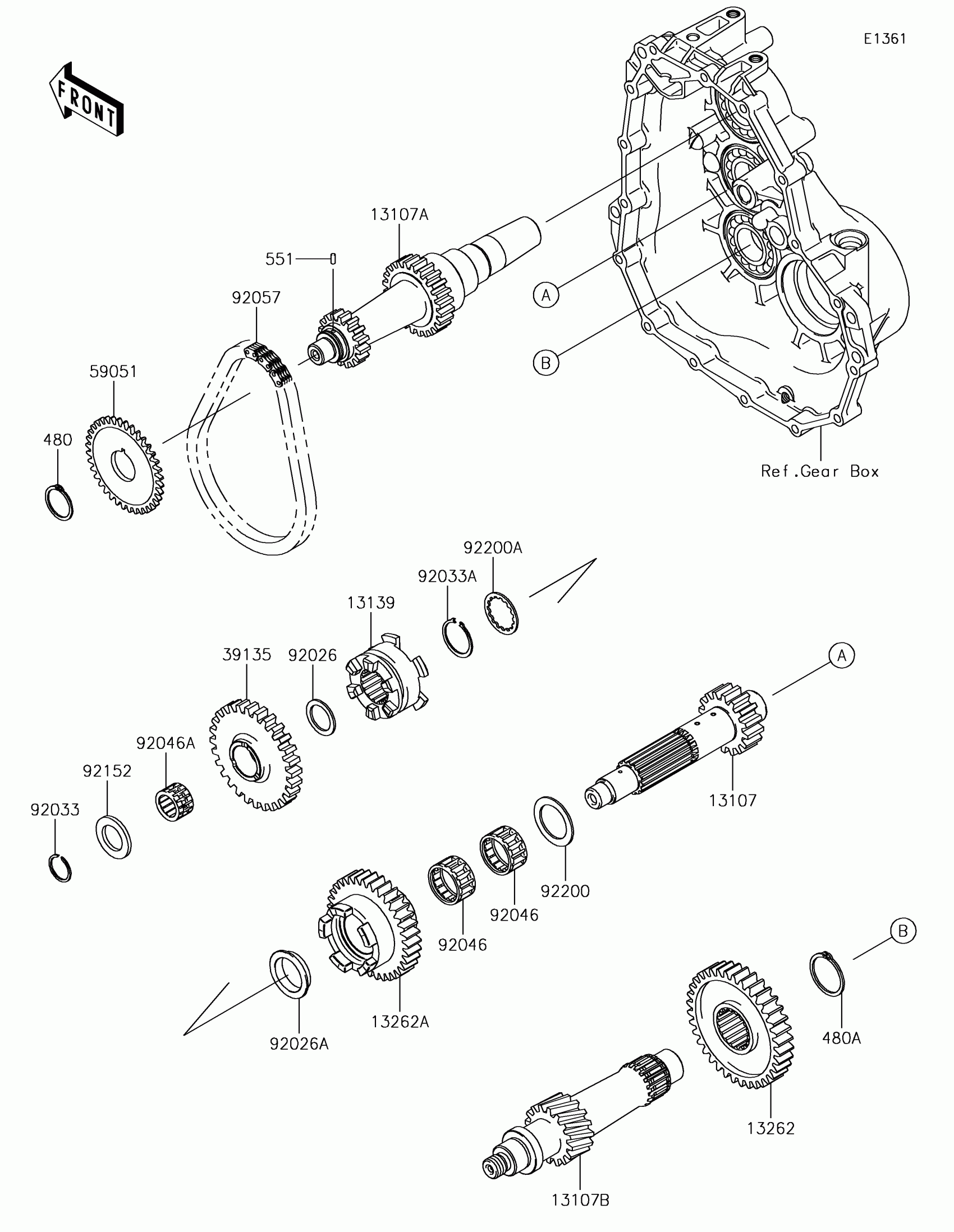

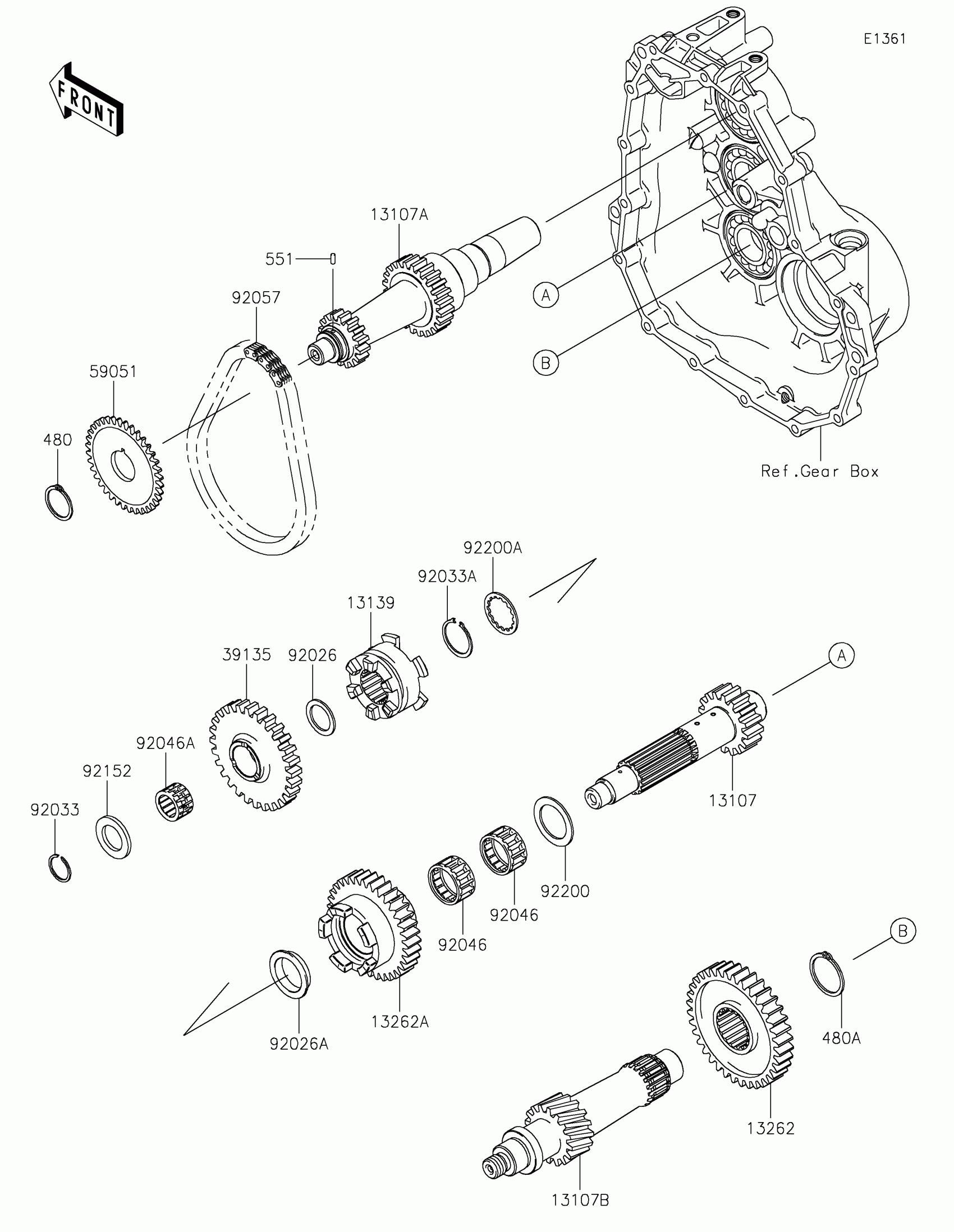

Kawasaki MULE SX™ Transmission Diagram
