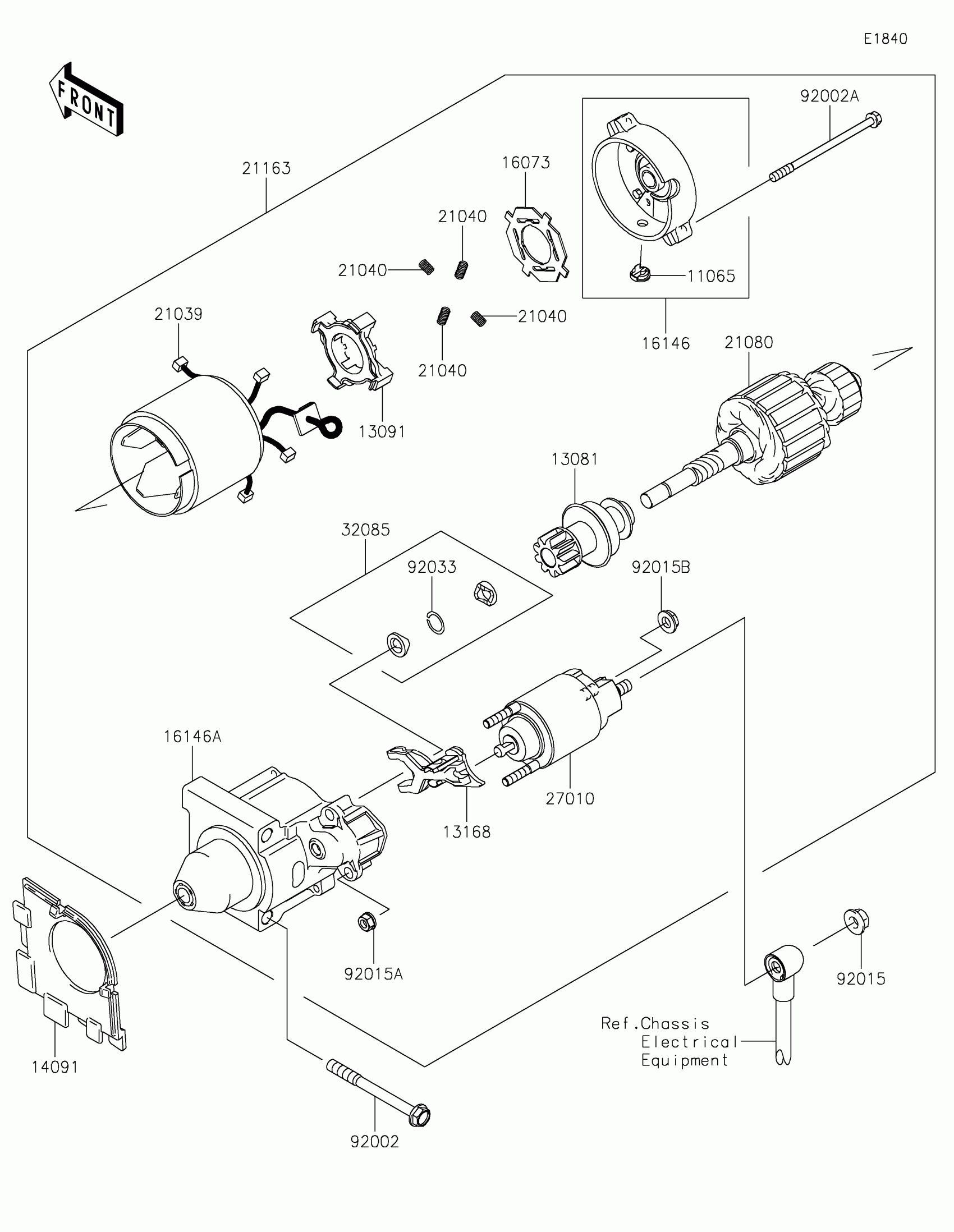

Kawasaki MULE SX™ 4x4 XC SE Starter Motor Diagram

Description

Price

11065

CAP

11065-2118

$3.51

13081

CLUTCH-ASSY

13081-2227

$92.29

13091

HOLDER,BRUSH

13091-2068

$27.32

13168

LEVER,SHIFT

13168-2148

$20.97

14091

COVER

14091-7038

$6.83

16073

INSULATOR

16073-2098

$9.19

16146

COVER-ASSY,END

16146-7016

$66.52

16146A

COVER-ASSY

16146-7025

$86.12

21039

BRUSH

21039-2059

$14.11

21040

SPRING-BRUSH

21040-2052

$3.53

21080

ARMATURE

21080-2058

$251.24

21163

STARTER-ELECTRIC

21163-7028

$482.69

27010

SWITCH

27010-7005

$170.03

32085

STOPPER

32085-2097

$14.28

92002

BOLT,8X83

92002-1794

$6.10

92002A

BOLT

92002-2277

$10.65

92015

NUT,FLANGED,8MM

92015-1406

$4.45

92015A

NUT

92015-2146

$1.45

92015B

NUT

92015-2147

$2.87

92033

RING-SNAP

92033-2081

$4.00
