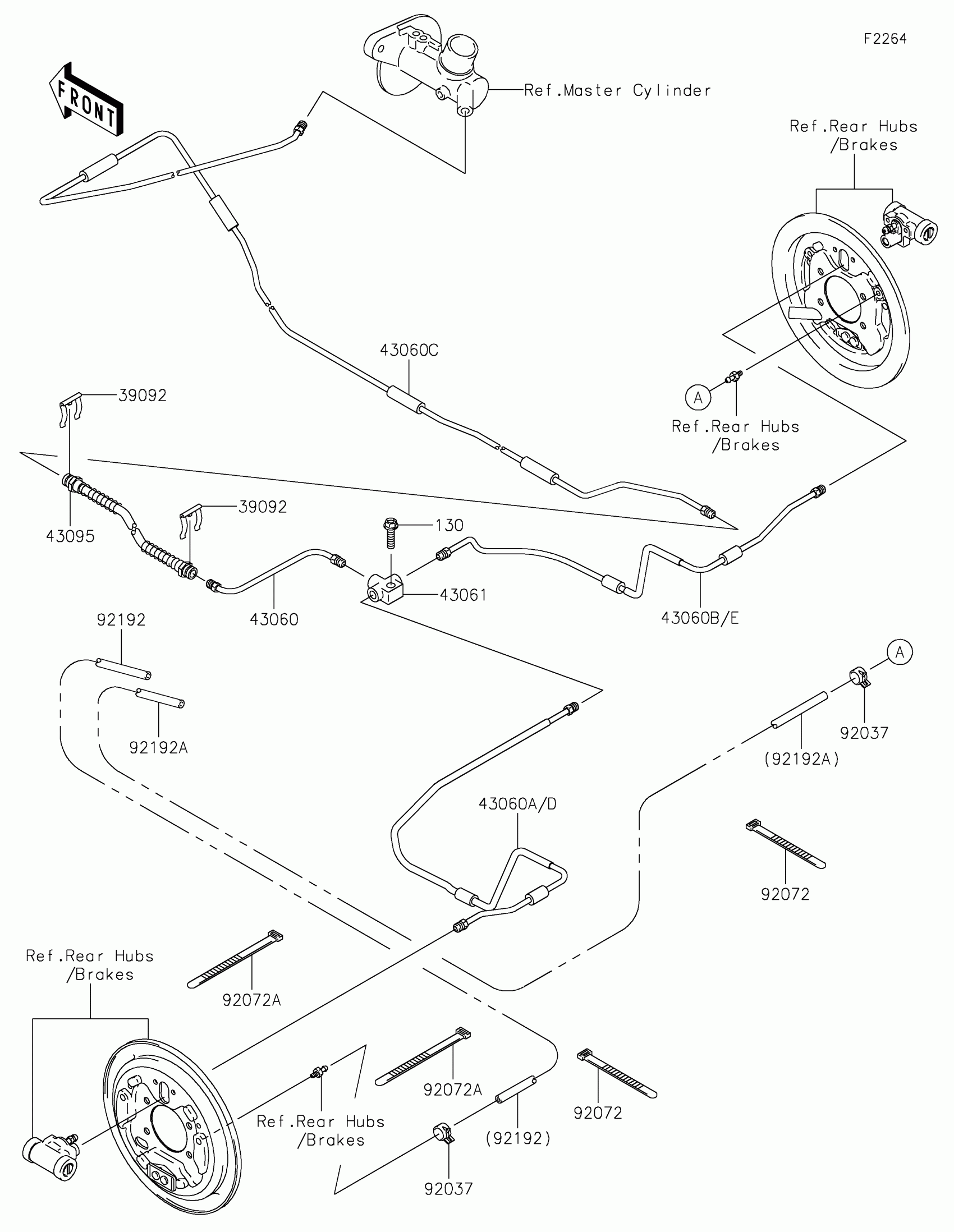

Kawasaki MULE SX™ 4x4 XC SE Rear Brake Piping Diagram

Description

Price

39092

PIN-HAIR

39092-1052

$6.07

43060

PIPE-BRAKE,RR,CNT

43060-0006

$21.77

43060C

PIPE-BRAKE,M/CYLINDER

43060-0327

$78.02

43060D

PIPE-BRAKE,RR,LH

43060-0337

$56.29

43060E

PIPE-BRAKE,RR,RH

43060-0338

$38.22

43061

JOINT-BRAKE

43061-1063

$34.99

43095

HOSE-BRAKE

43095-0488

$29.08

92037

CLAMP

92037-1601

$12.32

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=149

92072-031

$3.81

92192

TUBE,4.7X9.5X1320

92192-0103

$9.51

92192A

TUBE,4.7X9.5X1760

92192-0176

$12.36

130

BOLT-FLANGED,8X30

130AA0830

$0.78
