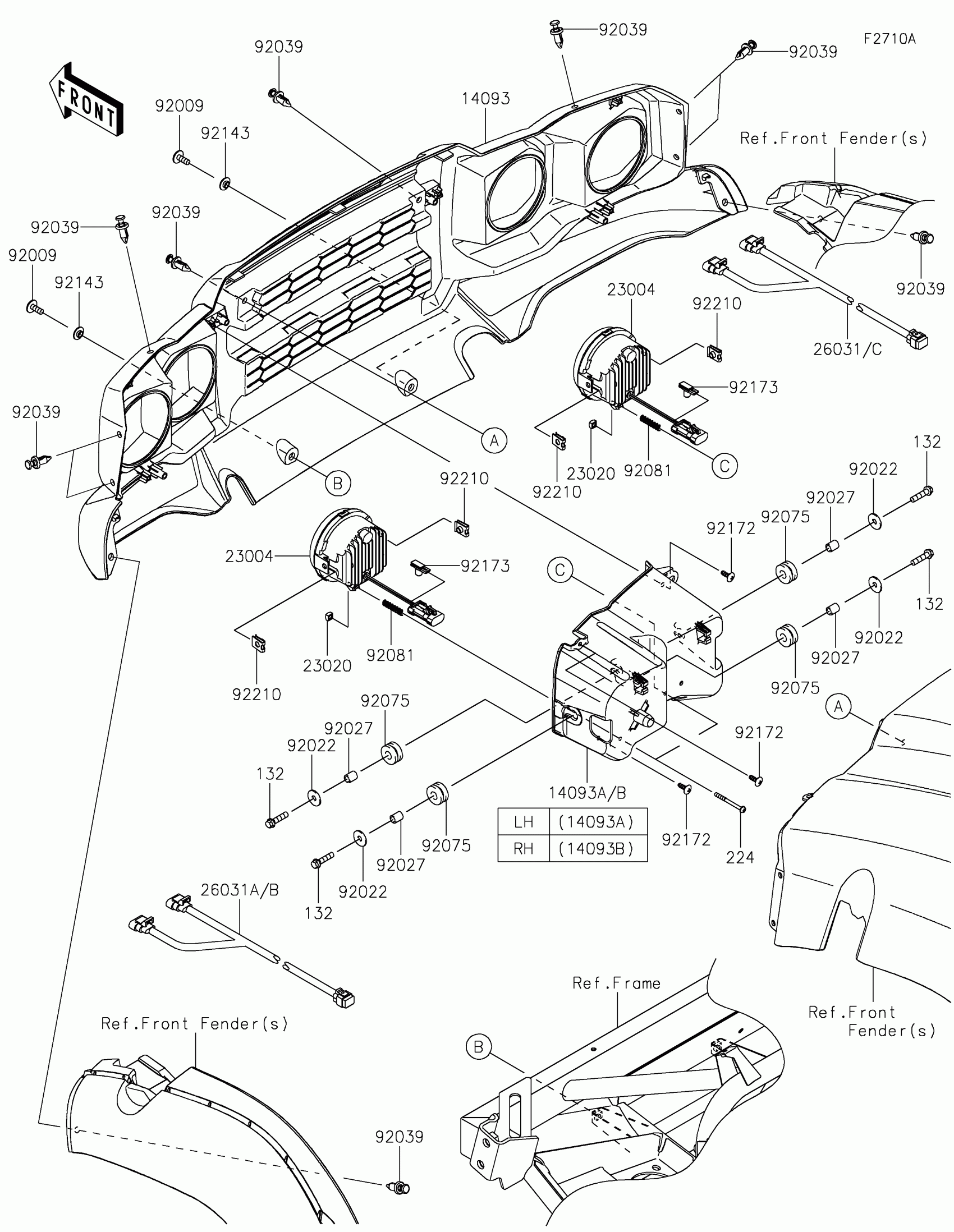

Kawasaki MULE SX™ 4x4 XC SE Headlight(s)(MJF/MKF) Diagram

Description

Price

14093

COVER,FR GRILL

14093-0393

$104.91

14093A

COVER,HEAD LAMP,LH

14093-0394

$17.16

14093B

COVER,HEAD LAMP,RH

14093-0395

$17.16

23004

LAMP-HEAD

23004-0372

$143.52

23020

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

26031B

HARNESS,HEAD LAMP,LH,2P

26031-2386

$17.63

26031C

HARNESS,HEAD LAMP,RH,2P

26031-2387

$31.32

92009

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92027

COLLAR,6.8X10X12

92027-162

$6.57

92039

RIVET

92039-0776

$1.19

92075

DAMPER,10X24X12

92075-1690

$5.00

92081

SPRING,FOCUS ADJUST

92081-1896

$5.25

92143

COLLAR

92143-1087

$4.31

92172

SCREW,TAPPING,5X14

92172-0265

$1.34

92173

CLAMP

92173-1491

$0.82

92210

NUT

92210-1125

$4.76

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

224

SCREW-PAN-WP-CROS,4X45

224AA0445

$1.81
