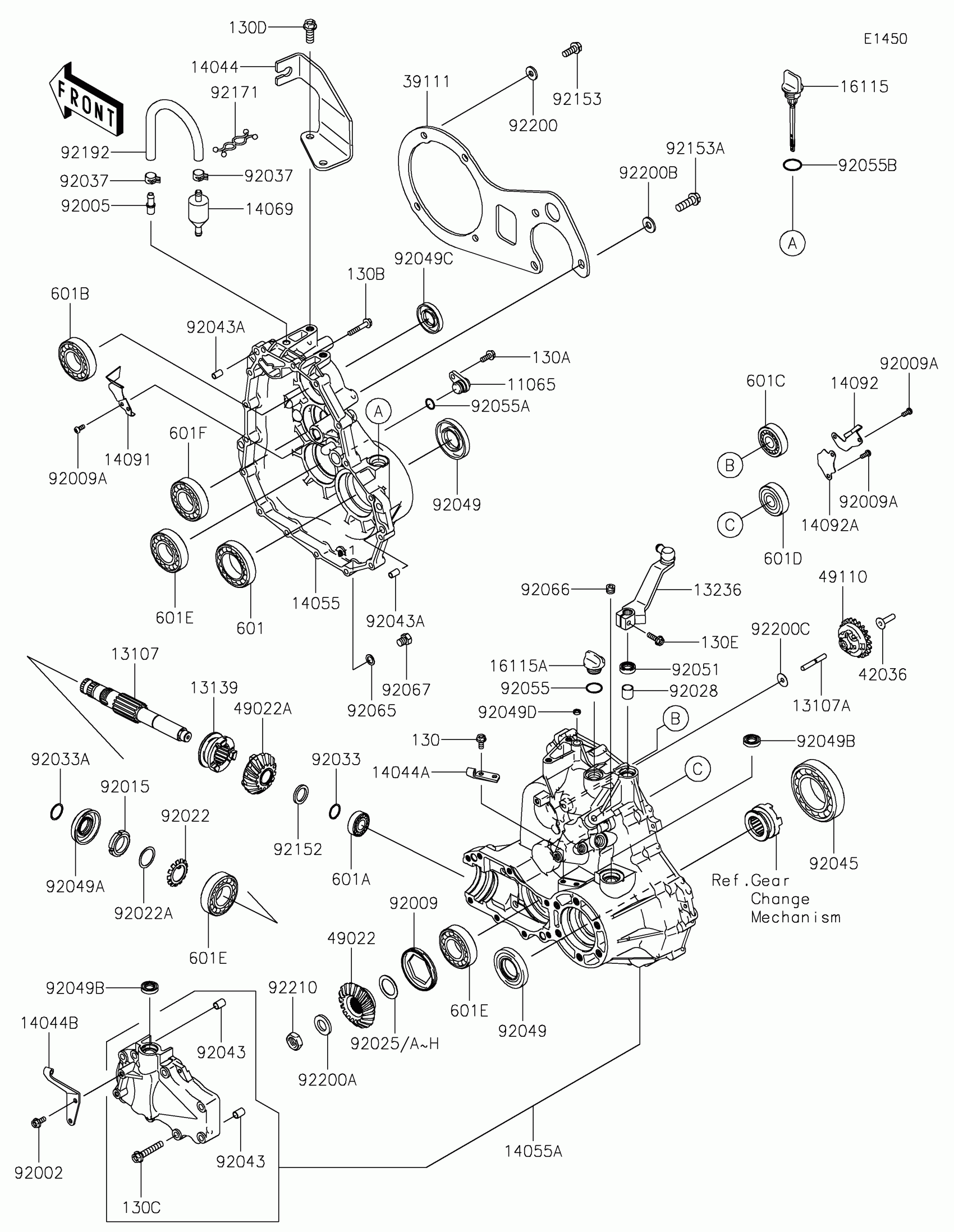

Kawasaki MULE SX™ 4x4 XC SE Gear Box Diagram

#

Description
Price

11065

CAP,GEAR CASE,RH

11065-0062

$17.20

13107

SHAFT,OUTPUT,BEVEL GEAR

13107-0043

$202.69

13107A

SHAFT

13107-2235

$4.64

13139

SHIFTER,2WD/4WD

13139-0005

$102.85

13236

LEVER-COMP

13236-0039

$55.54

14044

HOLDER-CABLE,SHIFT CONTROL

14044-0005

$47.69

14044A

HOLDER-CABLE,DIFF-LOCK

14044-0006

$10.02

14044B

HOLDER-CABLE,2WD/4WD

14044-0007

$10.02

14055

CASE-GEAR,RH

14055-0008

$282.28

14055A

CASE-GEAR,SET

14055-5001

$548.13

14069

BREATHER

14069-1051

$7.76

14091

COVER

14091-0394

$8.39

14092

COVER

14092-0052

$4.85

14092A

COVER

14092-0053

$4.32

16115

CAP-OIL FILLER

16115-0015

$13.07

16115A

CAP-OIL FILLER

16115-1053

$9.28

39111

ROD-TIE

39111-0016

$105.54

42036

SLEEVE

42036-2060

$2.28

49022

GEAR-BEVEL,18T

49022-0021

$132.17

49022A

GEAR-BEVEL,PINION,16T

49022-0022

$150.50

49110

GOVERNOR-ASSY

49110-0011

$115.64

92002

BOLT,6X14

92002-1656

$4.17

92005

FITTING,BREATHER

92005-1127

$16.10

92009

SCREW,64MM

92009-1914

$30.20

92009A

SCREW

92009-2308

$0.46

92015

NUT,25MM

92015-1768

$20.47

92022

WASHER,TOOTHED

92022-1990

$5.42

92022A

WASHER,25.3X32X0.5

92022-225

$4.18

92025

SHIM,25.3X36X0.15

92025-1688

Unavailable

92025A

SHIM,25.3X36X0.50

92025-1689

Unavailable

92025B

SHIM,25.3X36X0.60

92025-1690

Unavailable

92025C

SHIM,25.3X36X0.70

92025-1691

Unavailable

92025D

SHIM,25.3X36X0.80

92025-1692

Unavailable

92025E

SHIM,25.3X36X0.90

92025-1693

Unavailable

92025F

SHIM,25.3X36X1.00

92025-1694

Unavailable

92025G

SHIM,25.3X36X1.10

92025-1695

Unavailable

92025H

SHIM,25.3X36X1.20

92025-1696

Unavailable

92028

BUSHING

92028-1347

$6.48

92033

RING-SNAP

92033-0035

$4.07

92033A

RING-SNAP

92033-0036

$4.07

92037

CLAMP,TUBE

92037-1505

$3.63

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92043A

PIN,6.2X8X14

92043-1263

$0.46

92045

BEARING-BALL,6210CM

92045-1213

$49.04

92049

SEAL-OIL,HTC 30 60 8

92049-0049

$10.31

92049A

SEAL-OIL,YC9Y 22X50X9X13.4

92049-0053

$16.51

92049B

SEAL-OIL,TC14245

92049-1520

$10.54

92049C

SEAL-OIL,HTC 28X45X7

92049-1576

$11.17

92049D

SEAL-OIL,VC-6X10X2.5

92049-2097

$1.52

92051

SEAL-OIL,TB13225.5

92051-005

$5.91

92055

RING-O

92055-012

$0.82

92055A

RING-O,ID=13.8

92055-1141

$2.99

92055B

RING-O,20X3

92055-2185

$0.84

92065

GASKET,10.5X16X1

92065-058

$3.03

92066

PLUG,PT1/8X7

92066-1227

$5.15

92067

PLUG,DRAIN,10X12

92067-001

$3.36

92152

COLLAR,20.2X28.0

92152-0132

$7.69

92153

BOLT,FLANGED,8X21

92153-0898

$3.51

92153A

BOLT,10X30

92153-0908

$2.68

92171

CLAMP

92171-0476

$3.51

92192

TUBE

92192-0216

$10.49

92200

WASHER,8.2X20.0X2.5

92200-0205

$2.68

92200A

WASHER,17X30X3.5

92200-0210

$3.51

92200B

WASHER,10.2X23X2.5

92200-0211

$2.68

92200C

WASHER,6.2X20X0.5

92200-2036

$1.07

92210

NUT,16MM

92210-0211

$20.63

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,6X16

130BA0616

$0.97

130B

BOLT-FLANGED,6X35

130BA0635

$0.78

130C

BOLT-FLANGED,8X45

130BA0845

$1.39

130D

BOLT-FLANGED,10X25

130BA1025

$2.71

130E

BOLT-FLANGED,6X20

130CA0620

$1.22

601

BEARING-BALL

601B6008

$24.83

601A

BEARING-BALL,#6202C3

601B6202

$6.58

601B

BALL BEARING,#6206

601B6206

$17.84

601C

BEARING-BALL,#6303C3

601B6303

$6.32

601D

BEARING-BALL

601B6303U

$21.35

601E

BEARING-BALL,#6305C3

601B6305

$20.88

601F

BEARING-BALL,#6305U

601B6305U

$23.98
