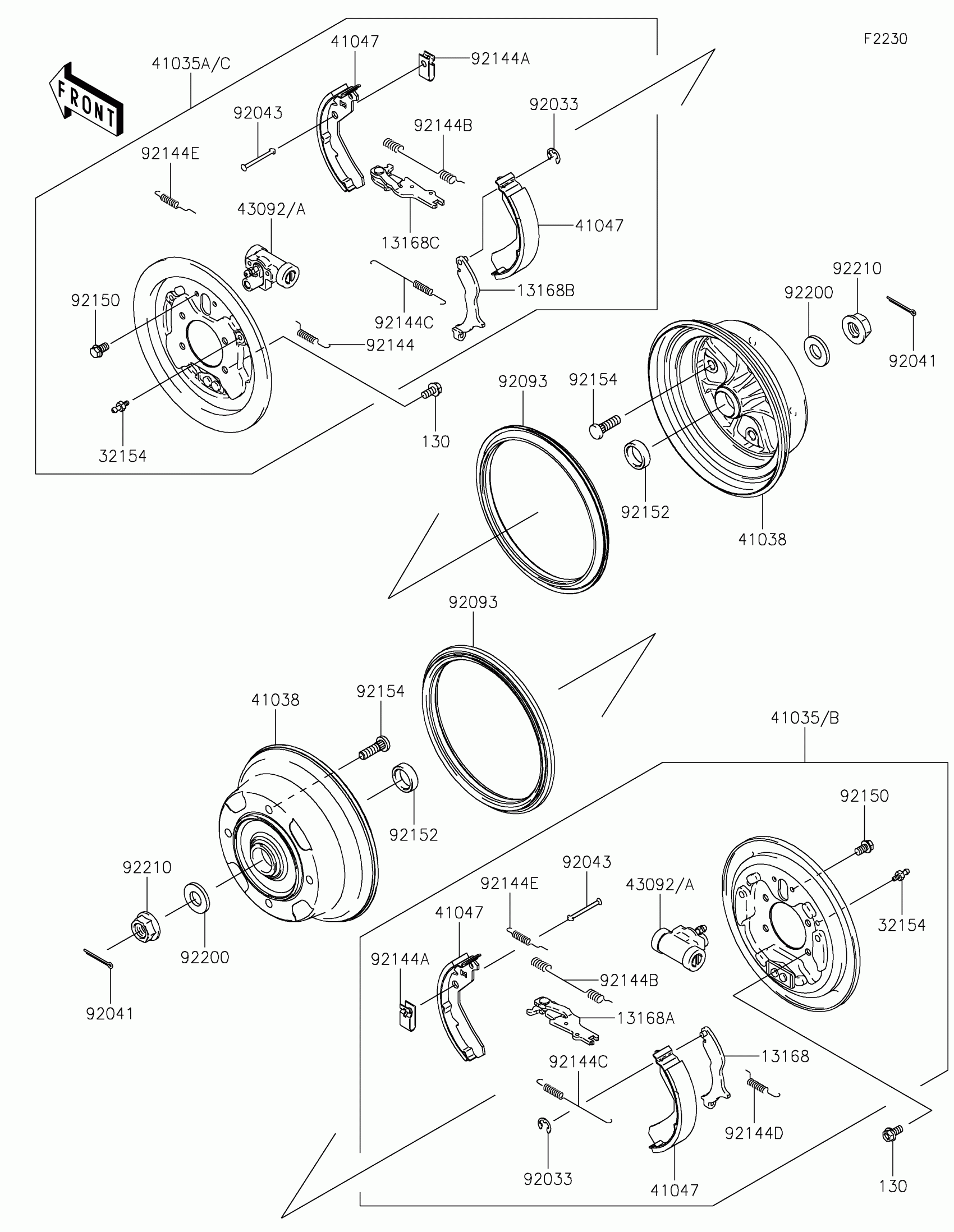

Kawasaki MULE SX™ 4x4 XC SE Front Hubs/Brakes Diagram

Description

Price

13168

LEVER,BRAKE,LH

13168-0065

$11.75

13168A

LEVER,BRAKE,LH

13168-0066

$31.03

13168B

LEVER,BRAKE,RH

13168-0067

$14.66

13168C

LEVER,BRAKE,RH

13168-0068

Unavailable

32154

PIPE

32154-0335

$12.25

41035B

PANEL-ASSY-BRAKE,FR,LH

41035-0720

$514.58

41035C

PANEL-ASSY-BRAKE,FR,RH

41035-0721

$514.58

41038

DRUM,FRONT BRAKE

41038-0013

$214.75

41047

SHOE-ASSY-BRAKE

41047-0001

$25.93

43092A

CYLINDER,BRAKE

43092-0003

$124.50

92033

RING-SNAP

92033-1279

$3.14

92041

COTTER,4.0X35

92041-1053

$2.99

92043

PIN,SHOE HOLD

92043-1460

$3.71

92093

SEAL,BS184.8X13.5-1

92093-0031

$121.93

92144

SPRING,RH

92144-1608

$7.17

92144A

SPRING,SHOE HOLD

92144-1609

$5.80

92144B

SPRING,RETURN,UPP

92144-1612

$6.08

92144C

SPRING,RETURN,LWR

92144-1613

$6.08

92144D

SPRING,LH

92144-1614

$4.81

92144E

SPRING

92144-1615

$3.99

92150

BOLT,FLANGED,6X10

92150-1664

$3.92

92152

COLLAR,25X34X10

92152-0164

$9.08

92154

BOLT,10X34.6

92154-1482

$2.75

92200

WASHER,18.5X38X4.5

92200-1794

$2.03

92210

NUT,FLANGED,18MM

92210-0132

$9.08

130

BOLT-FLANGED,8X16

130CA0816

$1.77
