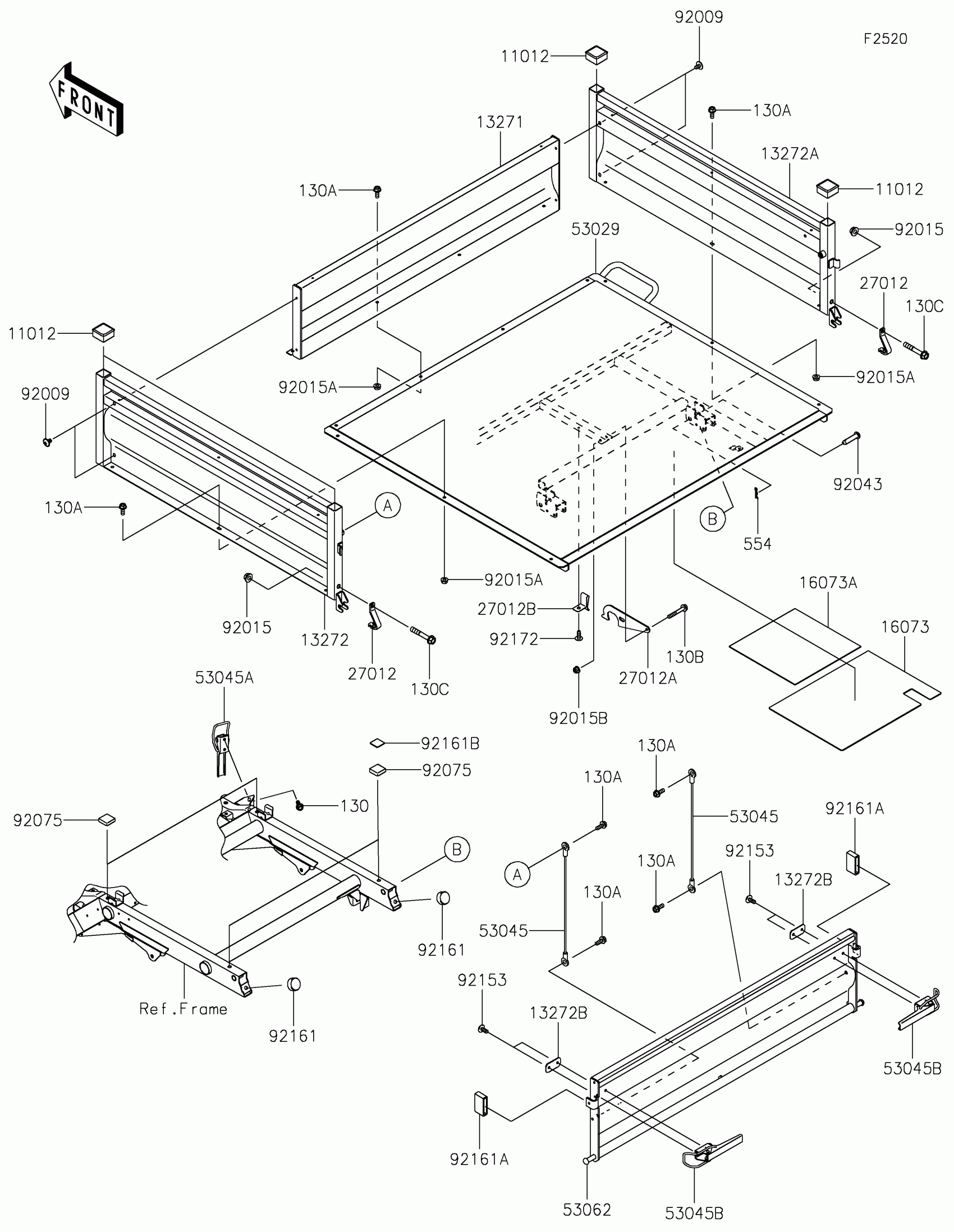

Kawasaki MULE SX™ 4x4 XC SE Carrier(s)(-JK1AFEM1 KB503979) Diagram

Description

Price

11012

CAP

11012-1784

$6.32

13271

PLATE,CARRIER,SIDE,FR,BLACK

13271-0385-10

$203.77

13272

PLATE,SIDE CARRIER,LH,BLACK

13272-2098-10

$207.31

13272A

PLATE,SIDE CARRIER,RH,BLACK

13272-2099-10

$207.31

13272B

PLATE

13272-7516

$7.35

16073

INSULATOR,295X400

16073-0849

$50.56

16073A

INSULATOR,265X265

16073-0850

$45.30

27012

HOOK,TAIL GATE

27012-0022

$6.43

27012A

HOOK

27012-0044

$31.01

27012B

HOOK,CARRIER

27012-1445

$12.92

53029

CARRIER,BASE,T.BLACK

53029-0345-388

$1,247.97

53045

HOOK-ASSY,CABLE

53045-0030

$26.32

53045A

HOOK-ASSY

53045-0032

$23.27

53045B

HOOK-ASSY

53045-0033

$23.27

53062

GATE-TAIL,BLACK

53062-0024-10

$288.08

92009

SCREW,6X10

92009-1661

$4.31

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92015A

NUT,FLANGED,6MM

92015-1367

$3.69

92015B

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92043

PIN,12X54

92043-1451

$9.73

92075

DAMPER

92075-1882

$8.10

92153

BOLT,SOCKET,6X14

92153-1021

$2.67

92161

DAMPER

92161-1065

$3.73

92161A

DAMPER

92161-7519

$3.52

92161B

DAMPER

92161-7520

$0.85

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

130B

BOLT-FLANGED,6X40

130BA0640

$1.20

130C

BOLT-FLANGED,8X50

130BA0850

$2.25

554

PIN-SNAP,12MM

554DA1200

$3.96
