Carburetor

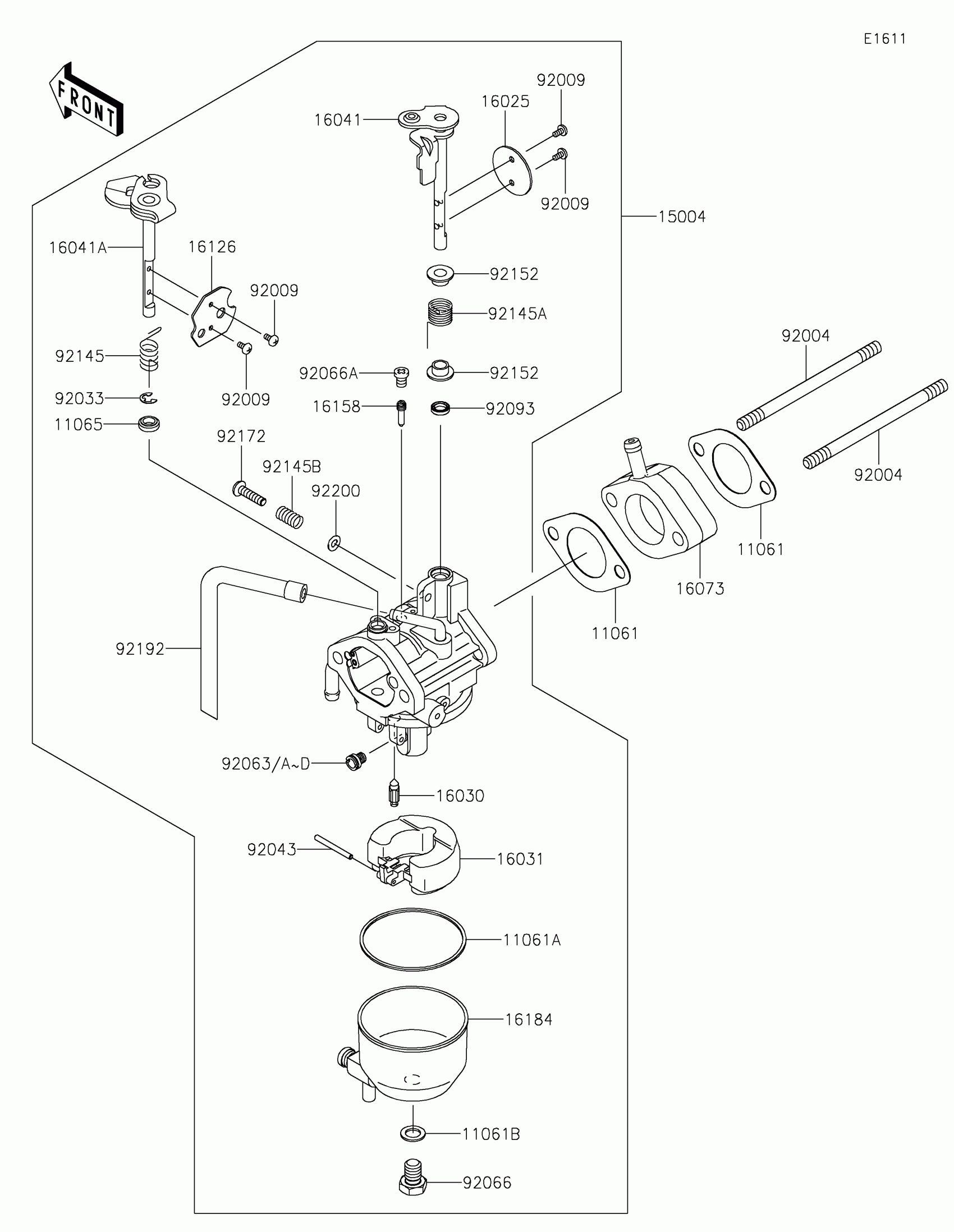

Kawasaki MULE SX™ 4x4 XC SE Carburetor Diagram
#
Description
Price
11061
GASKET,HEAD-CARB
11061-7027
$1.09
11061A
GASKET,FLOAT CHAMBER
11061-7044
$8.74
11061B
GASKET,CHAMBER
11061-7045
$2.01
11065
CAP
11065-7012
$1.67
15004
CARBURETOR-ASSY
15004-0953
$207.11
16025
VALVE-THROTTLE
16025-7008
$8.44
16030
VALVE-FLOAT
16030-7004
$23.73
16031
FLOAT
16031-7004
$27.02
16041
SHAFT-CARBURETOR
16041-2261
$32.74
16041A
SHAFT-CARBURETOR
16041-2262
$32.74
16073
INSULATOR
16073-0827
$7.05
16126
VALVE
16126-2242
$7.76
16158
JET-SLOW,#54
16158-2051
$29.48
16184
CHAMBER-ASSY-FLOAT
16184-7018
$38.40
92004
STUD,6X95
92004-7027
$3.30
92009
SCREW
92009-2049
$0.80
92033
RING-SNAP
92033-7007
$1.88
92043
PIN,FLOAT
92043-7016
$2.31
92063
JET-MAIN,#99
92063-2458
$23.75
92063A
JET-MAIN,#105
92063-7013
$19.53
92063B
JET-MAIN,#102
92063-7014
$19.53
92063C
JET-MAIN,#109
92063-7044
$27.03
92063D
JET-MAIN,#112
92063-7045
$26.83
92066
PLUG
92066-7020
$12.41
92066A
PLUG
92066-7021
$4.85
92093
SEAL,D=5.9
92093-7001
$2.26
92145
SPRING
92145-2151
$2.94
92145A
SPRING
92145-2152
$2.94
92145B
SPRING
92145-7039
$2.53
92152
COLLAR
92152-7008
$5.41
92172
SCREW
92172-7007
$1.35
92192
TUBE
92192-2085
$7.76
92200
WASHER
92200-7025
$1.95
