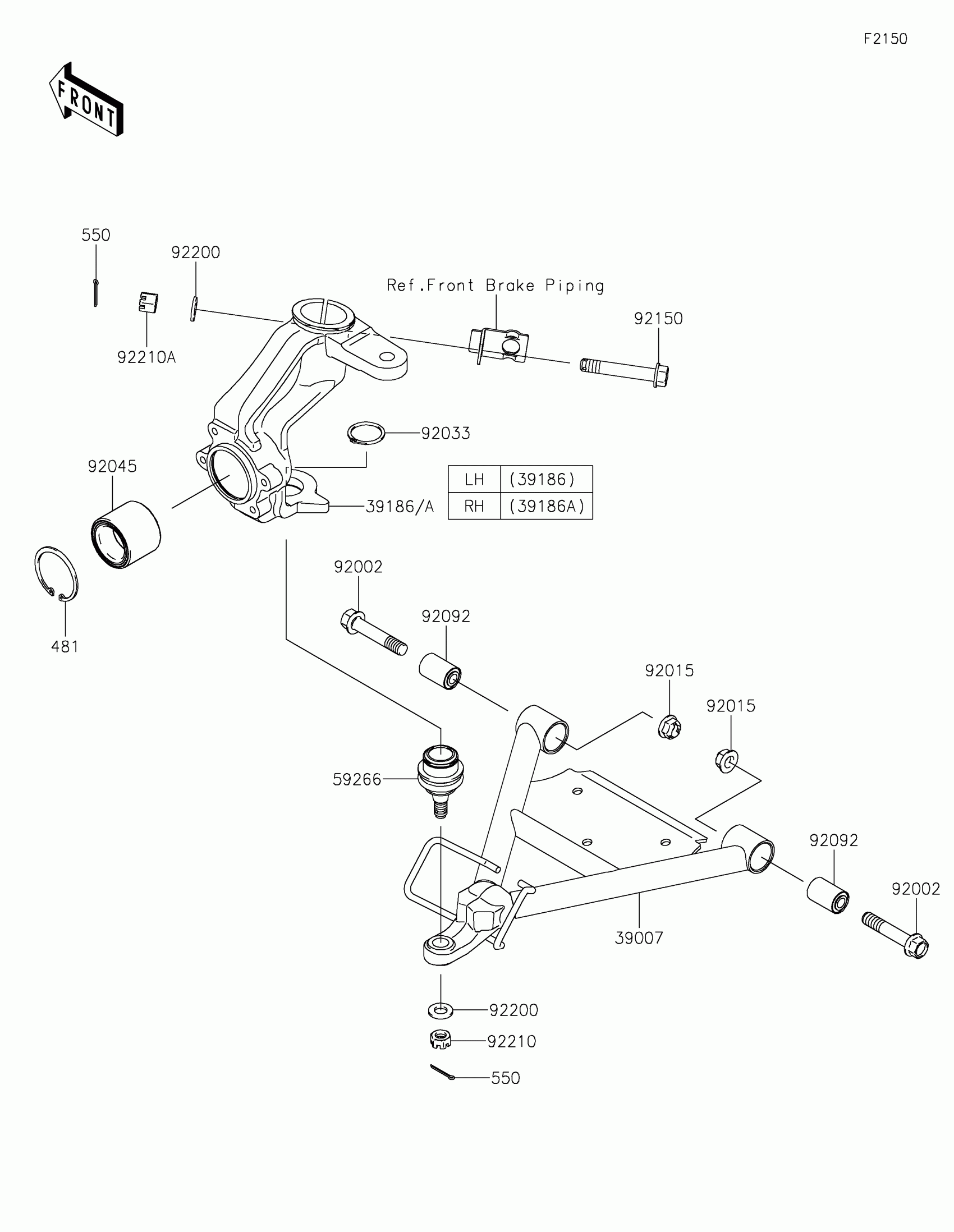

Kawasaki MULE SX™ 4x4 XC LE Suspension Diagram

Description

Price

39007

ARM-SUSP

39007-0397

$248.51

39186

KNUCKLE,LH

39186-0314

$162.31

39186A

KNUCKLE,RH

39186-0315

$162.31

59266

JOINT-BALL

59266-1080

$85.37

92002

BOLT,ROD,12MM

92002-1757

$9.66

92015

NUT

92015-1706

$5.69

92033

RING-SNAP,C-TYPE,32MM

92033-1262

$4.81

92045

BEARING-BALL,DAC2552W-7CS31

92045-0028

$67.30

92092

BUSHING-RUBBER

92092-005

$10.71

92150

BOLT,FLANGED,12X72

92150-1356

$10.44

92200

WASHER,12.3X23X2.3

92200-1004

$3.57

92210

NUT,CASTLE,12MM

92210-0395

$2.95

92210A

NUT,12MM

92210-7501

$2.84

481

CIRCLIP-TYPE-C,52MM

481J5200

$3.72

550

PIN-COTTER,3.0X25

550AA3025

$0.59
